A&D Everest Series
A&D Everest Series is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

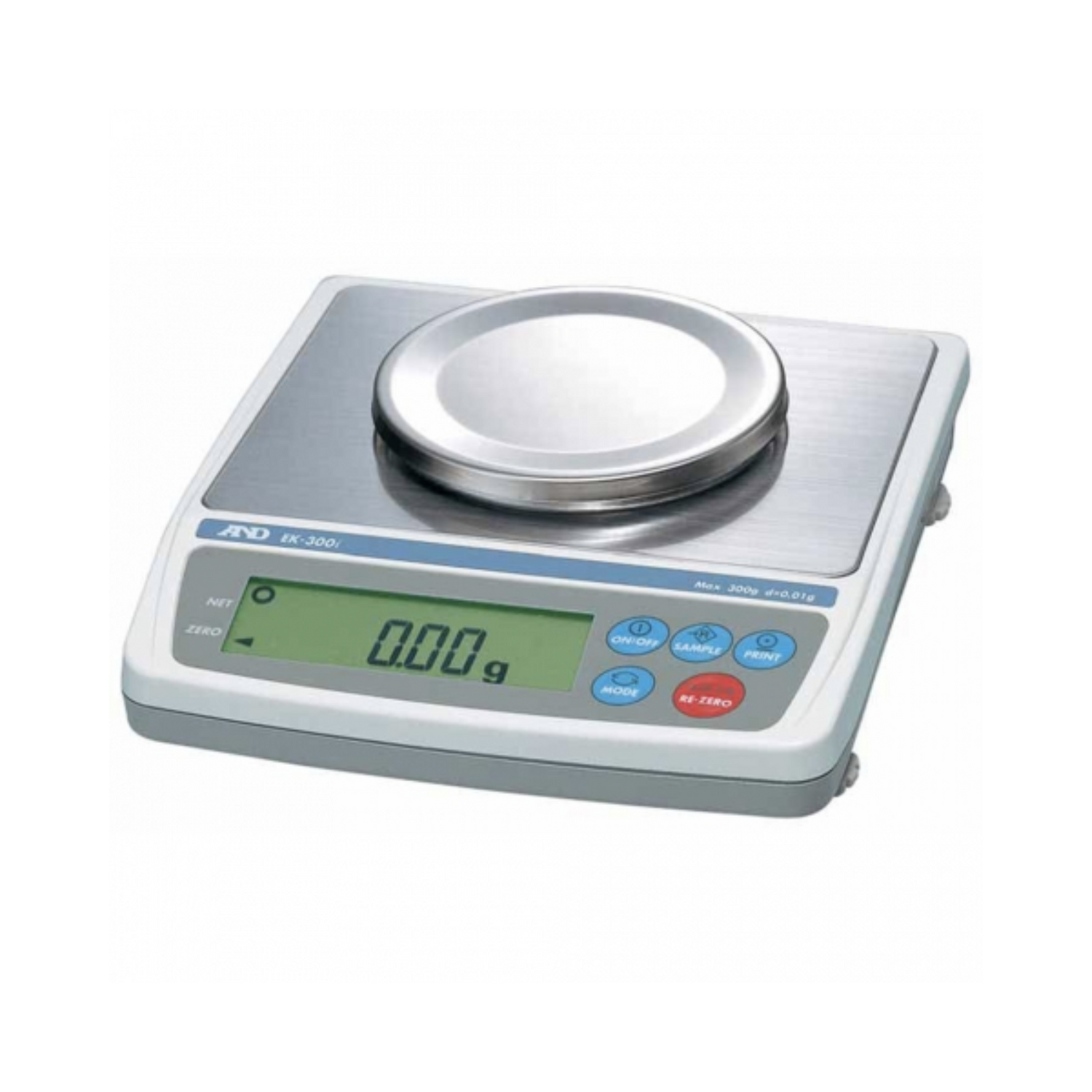

Compact Precision Balances - Everest Series
The Everest Series is a range of compact precision balances with a weight capacity of 120 g to 12,000 g, and a resolution ranging from 0.01g to 1g. Their versatile features include full digital calibration and a large LCD display with a backlight. With its small footprint, optional carrying case, and rechargeable NiCd battery, the Everest offers superior convenience and portability. Now available with triple ranges of weighing, new electronics, and remote-zeroing, all included in a low-profile rugged housing, these unique balances are RS-232C standard and designed to meet Weights and Measures regulations.
For detailed specifications download the Everest Series brochure.
Notable Features
- Large LCD display (16mm height) with backlight
- Control zero, mode selection and data output with standard RS-232C
- Triple Range weighing
- Counting function with Automatic Counting Accuracy Improvement
- Standard comparator function--HI/OK/LO annunciator
- Full Digital Calibration with optional user-definable mass setting
- Conformity to GLP with I.D. and serial number outputs
- Auto Power OFF
- Portable-compact size, lightweight, rugged body
- Sealed key panel protection against dust and spills
- Compact precision balances have a low profile and small footprint for minimal space requirement
- Overload protection
- Security ring to prevent theft
- Stainless steel weighing pan
| Model | Capacity | Min. Weight | Linearity | Max. Count | Pan Size |
|---|---|---|---|---|---|
| EK-120i | 120g | 0.01g | ±0.01g | 12,000 pcs | 110 mm/4.3" |
| EK-200i | 210g | 0.01g | ±0.01g | 20,000 pcs | 110 mm/4.3" |
| EK-300i | 310g | 0.01g | ±0.02g | 30,000 pcs | 110 mm/4.3" |
| EK-410i | 410g | 0.01g | ±0.02g | 40,000 pcs | 110 mm/4.3" |
| EK-610i | 610g | 0.01g | ±0.02g | 60,000 pcs | 110 mm/4.3" |
| EK-6100i | 6100g | 0.1g | ±0.1g | 6,000 pcs | 133 mm x 170 mm |
| No. of samples | 5, 10, 25, 50 or 100 pieces |
| Sensitivity Drift | 20ppm / C(10C~30C / 50F~86F) |
| Display Type | 7 segment LCD with backlight (Character height 16mm) |
| Display Refresh | 10 times / second |
| Power | AC adapter or Ni-MH battery pack (option) |
Options and Accessories:
- Multi-Functional Printer
- External Display
- Rechargeable Battery
- Carrying Case
