Description
Description

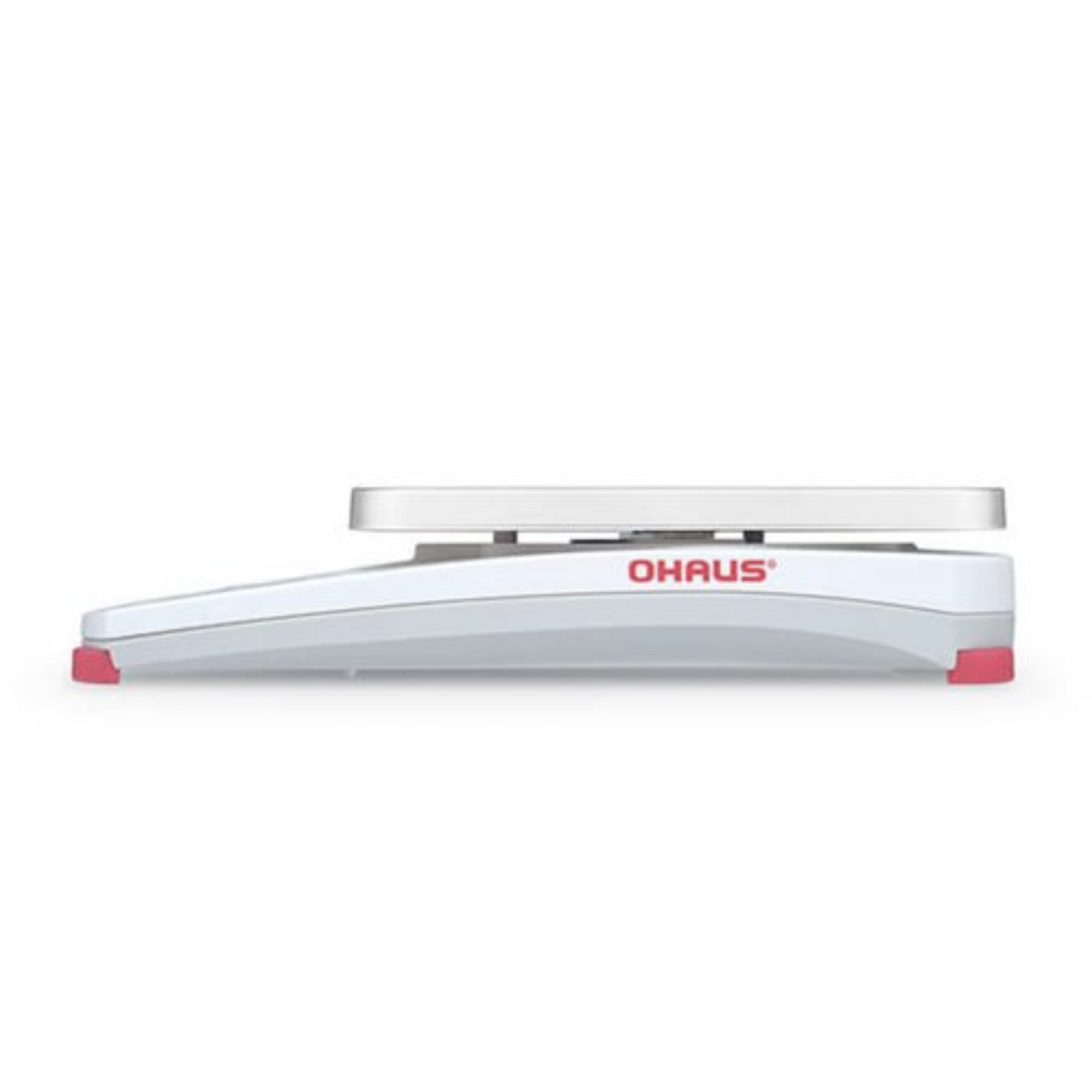

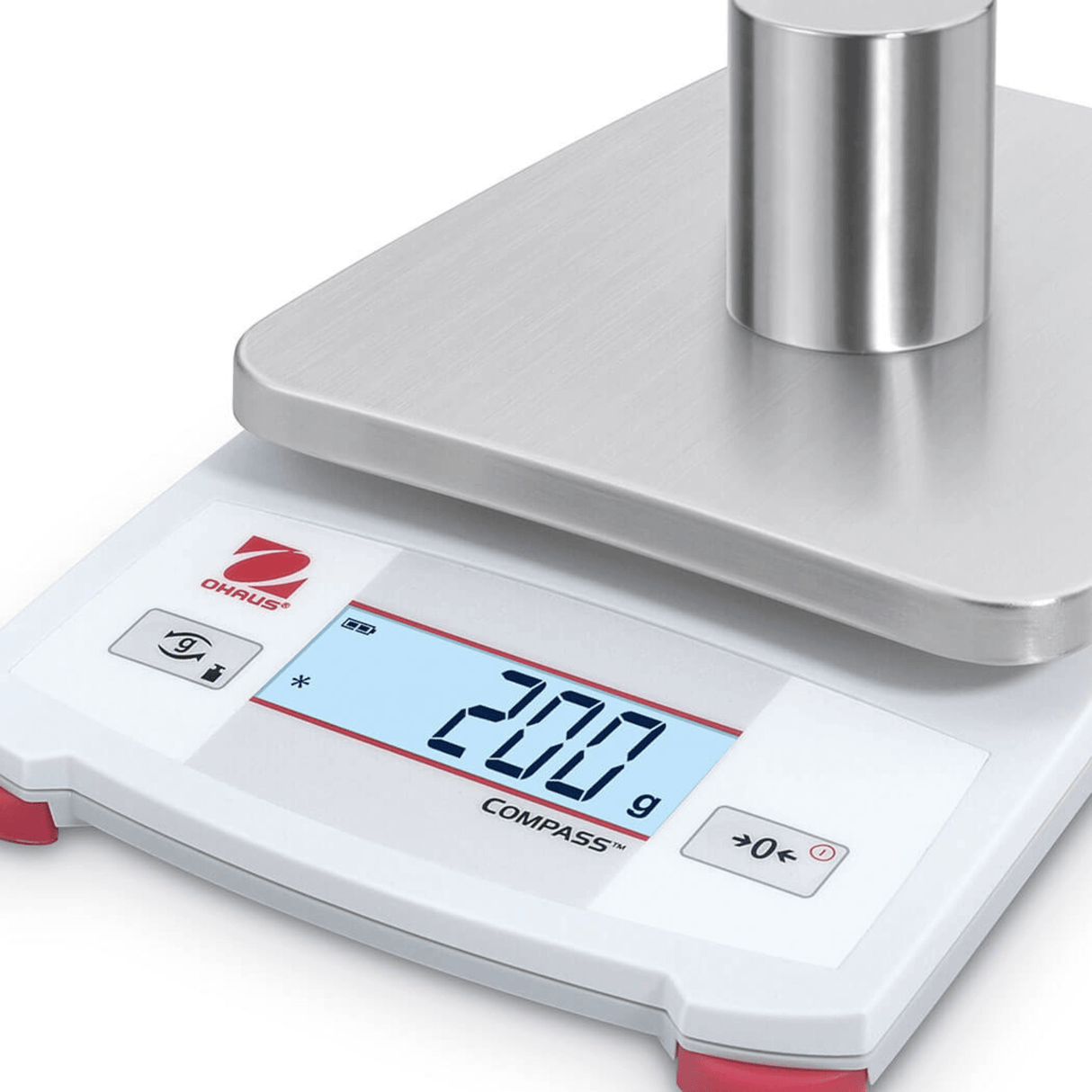

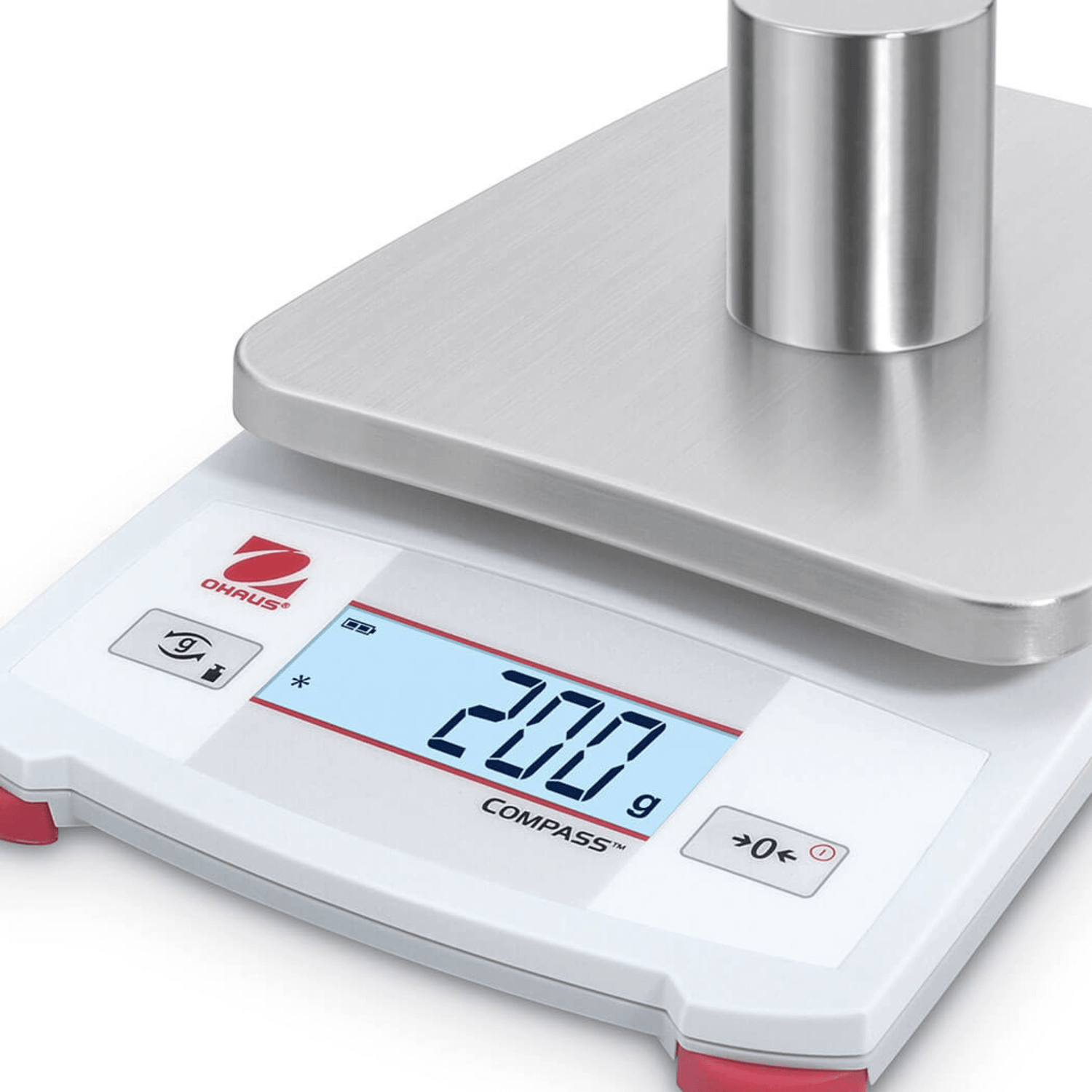

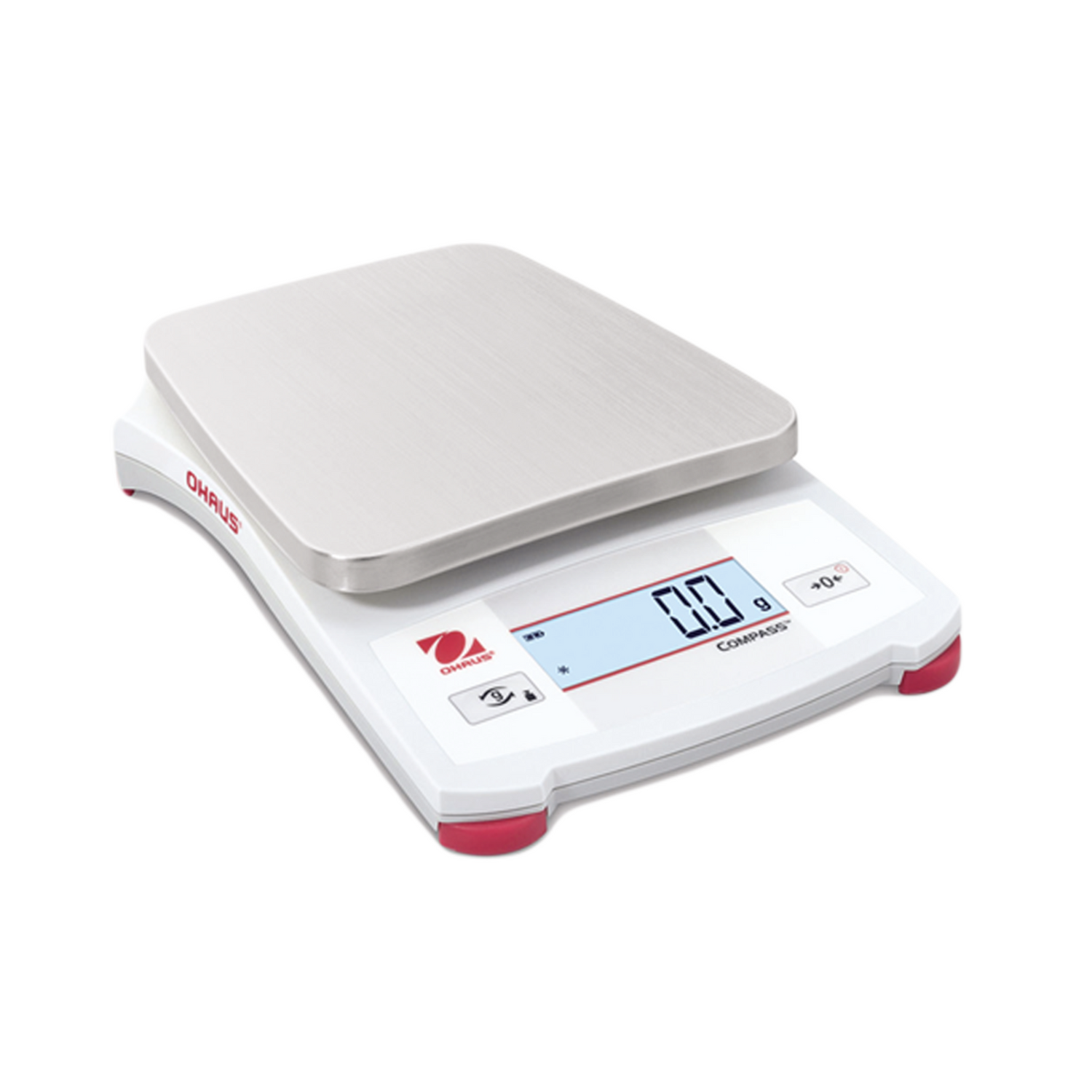

Ohaus Compass CX Portable Balance
Energy-Efficient Portable Scale Suitable for Workplace and in-the-Field Weighing
Designed with energy efficiency in mind, the Compass CX series offers a battery life of up to 1,000 continuous hours, allowing for uninterrupted operation. Featuring a slim, stackable and light-weight design, the CX fits ideally in lab, industrial, education, and even household settings. The streamlined two-button operation means that the balance can be operated easily, and large backlit LCD display enables easy viewing of weighing results.
Standard Features
• Save money over the lifetime of the balance. Alkaline batteries allow you to maximize operating time with up to 1,000 hours of continuous energy-efficient weighing in the workplace or classroom.
• Large backlit display increases readability in low-light conditions and makes it easier to view results from a distance.
• Slim, space-saving design allows for stackable storage for up to four scales.
Specifications
| Model | CX221 | CX621 | CX1201 | CX2200 | CX5200 |
| Capacity (g) | 220 | 620 | 1200 | 2200 | 5200 |
| Readability (g) | 0.1 | 1 |
| Span Calibration Mass (Not Included) | 200g | 500g | 1kg | 2kg |
| Stabilization Time (s) | 1.5 | 2 | 1.5 |
| Construction | ABS housing and stainless steel pan |
| Calibration | User-selectable external span / Digital with external weight |
| Tare Range | Full capacity by subtraction |
| Weighing Units* | g, N, oz, lb:oz |
| Application Modes | Weighing |
| Power Requirement | 3 AA batteries (included) or AC adapter (not included) |
| Typical Battery Life | 1,000 hours |
| Display Type | Liquid crystal display (LCD) with backlight |
| Display Size | 0.71 in. digits / 18 mm |
| Pan Size (W x D) | 5 × 5.6 in / 128 × 142 mm |
| Balance Dimensions ( W x D xH) | 5.3 × 7.9 × 1.6 in. / 135 × 201 × 41 mm |
| Shipping Dimensions (W x D x H) | 6.7 × 9.3 × 2.2 in. / 170 × 235 × 55 mm |
| Net Weight | 1.1 lb / 0.51 kg |
| Shipping Weight | 1.5 lb / 0.7 kg |
