Zebra

Zebra ZT421 Industrial Printer

Service & Calibration Support

Interweigh Systems provides calibration, service, and technical support for all equipment we sell.

Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.

Certified test weights are also available to support quality control programs and internal verification procedures.

Ordering & Configurations

Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.

To receive pricing or discuss availability, contact our team with details about your application and environment.

Contact Now for Immediate Pricing

Description

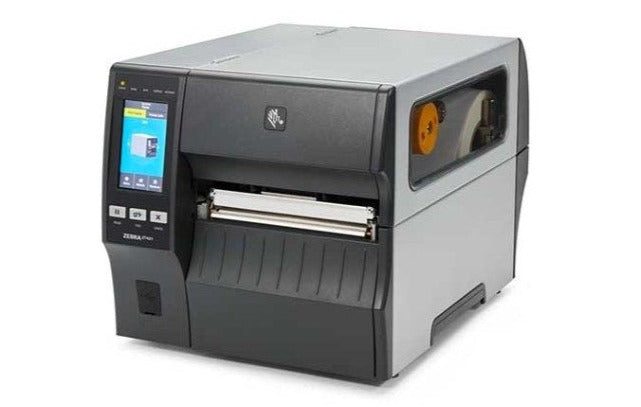

Zebra ZT421 Industrial Printer
Fast and reliable, the ZT421 has a 4.3-inch full-color touch display to see printer status at a glance and quickly make settings changes. It has a print width of 6 inches and can print up to 12 inches per second.
Standard Features
Printing

-Thermal transfer and direct thermal printing

-Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality

-203 dpi print resolution (8 dots / mm)

-Print speeds per second up to 12" (305 mm / second)
Communication
-USB 2.0, high speed
-RS-232 Serial (RS-232C with DB9F connector; Configurable baud rate (2400 – 115,200kB), parity, and data bits. Stop bits at 1 or 2; Software (XON/XOFF), hardware (DTR/DSR or RTS/CTS) communication handshake protocols)
-10/100 Ethernet: Supports networks internally integrated option that enables the use of Webview and Alert features
- Bluetooth® 4.1 (including Apple®)
-Dual USB Host
Media Support
- Dual media sensors — transmissive and reflective
- 3" media supply hanger
- Auto calibration — printer calibrates when printer is turned on or when printhead is closed
Firmware
- Resident ZPL®, ZPL II® and EPL™ programming languages, selectable through software or front panel
- XML-enabled Printing — allows XML communications for barcode label printing eliminating license fees and printer server hardware while lowering customization and programming costs
Operation
• 4.3-inch color touch display with intuitive menu for quick operation and settings management
• Bi-colored status LEDs for quick printer status
• ARM Cortex A7 processor
• 256 MB RAM memory (8 MB User Available)
• 512 MB Flash memory (64 MB User Available)
• Print Touch™ application
• Link-OS®-enabled
• Auto-switching 100-240V power supply
• ENERGY STAR® qualified • Printhead element out detection
Design
• Easy, side-loading metal print mechanism
• Door and print mechanism activated lights to light supplies path
• Tool-less printhead and platen replacement
• Metal media cover with enlarged clear viewing window
• Robust-gold user touch points indicating key adjustments
• Bi-fold media door decreasing overall operating space by 35%

Media Specifications

• Media Types: Continuous, die-cut, notch, black-mark

• Maximum Non-continuous Label Length: 39" (991 mm)

• Media Web Width (Label and Liner): − 2.00" (51 mm) to 7.0" (178 mm) Tear / Cutter − 2.00" (51 mm) to 6.75" (171 mm) Peel / Rewind

• Minimum Label Length: − Tear-off mode: 0.5" (12.7 mm) − Peel mode: 0.5" (12.7 mm) − Rewind mode: 0.5" (12.7 mm) − Cutter: 1.00" (25.4 mm)

• Media Thickness (Label and Liner): − 0.0023" (0.058 mm) to 0.010" (0.25 mm)

• Maximum Media Roll Dimensions: − 8.0" (203 mm) O.D. on a 3" (76 mm) I.D. core

Physical Specifications

Parameter- ZT421
Height 12.75" (324 mm)
Width 13.25" (336 mm)
Depth 19.50" (495 mm)
Weight 40 lb (18.14 kg)
Shipping Weight 45 lb (20.41 kg)
Full Technical Specifications:
