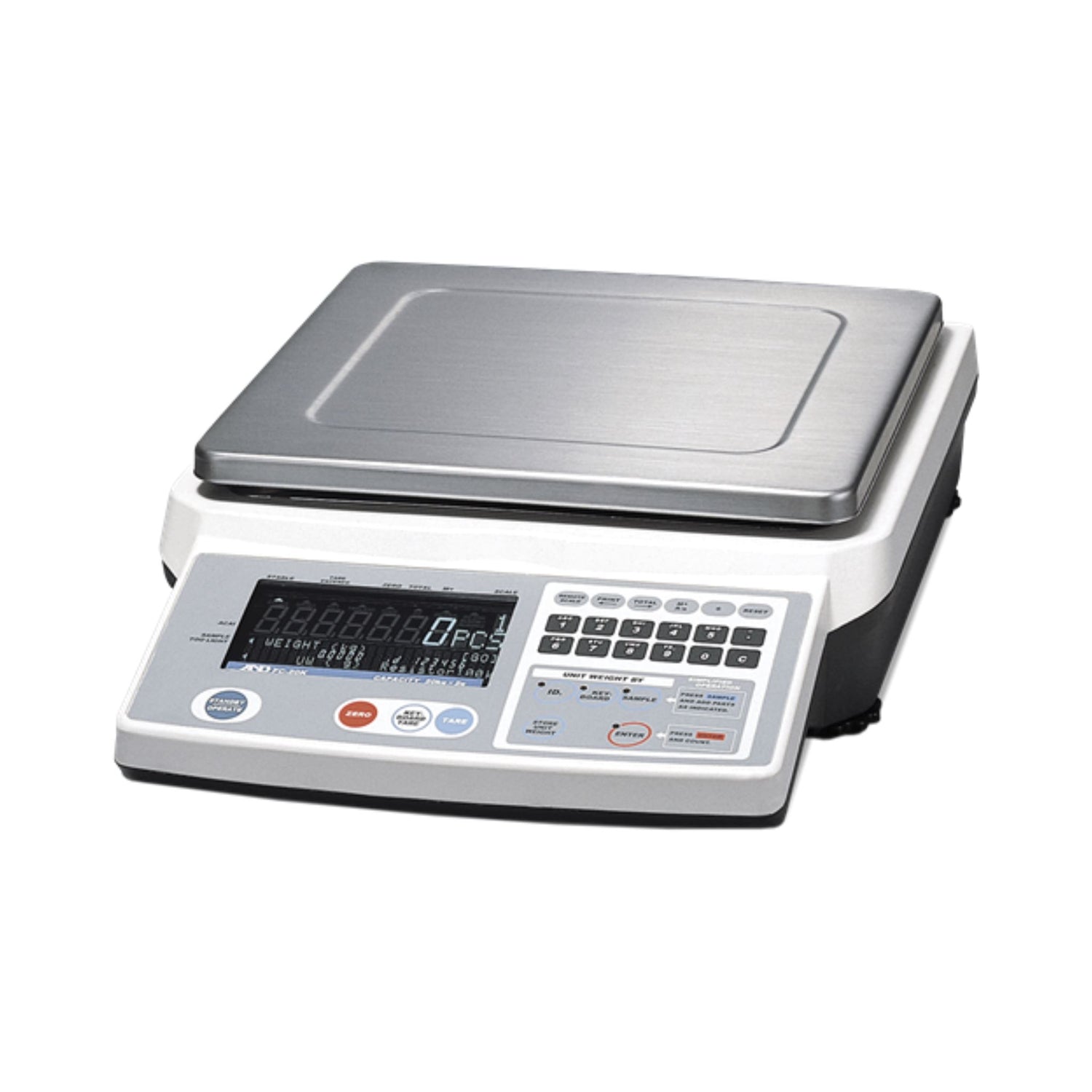

FC-i Series by A&D Weighing
FC-i Series by A&D Weighing
- Contact Now for Immediate Pricing
- 1(800)-268-3269
- inquiry@interweigh.ca
The FC-i Series by A&D Weighing is a very versatile high-resolution counting scale. Its powerful features are ideal for a range of applications from simple counting to advanced inventory data management. This model combines the two most critical performance requirements of a counting scale: count accuracy and operation expediency.
Download the FC-i Series Brochure.
Notable Features
- High Resolution: 1/5 million internal for FC-Si models, 1/1million internal for FC-i models.
- 500 Memories (with 6-digit ID) to store and retrieve up to Unit Weights, tare weights, alphanumeric names/codes (12 digits), accumulators & comparator limits.
- Optional Remote Scale Connector (FC-05i) allows easy connection to a remote platform.
- Standard bi-directional RS-232C interface with optional 2nd & 3rd interfaces.
- LED Display steps operator through the proper keys without a manual
- Simplified Operation Mode disables all but essential keys.
- Optional Hi/Go/Lo Comparator Function with built-in buzzer makes checkweighing easy.
- Four Displays always show weight, average piece weight, piece count, item code, tare weight and accumulator.
- ACAI Counting Function continuously updates the average piece weight. Provides increased accuracy for parts with inconsistent weights.
- Display prompting eliminates operator errors and maximizes count accuracy.
- Optional NiMH built-in Battery Pack allows recharge while the unit is still in use.
- 1" High Count display is unmistakable.
Model | Capacity | Display Resolution (g) | Min. Sample | Pan Size (inch) |
---|---|---|---|---|
500Si | 500 g | 0.02 | 0.0002g | 5.0 x 5.0 |
5000Si | 5 kg | 0.2 | 0.0001g | 6.5 x 6.5 |
500i | 500 g | 0.05 | 0.0005g | 8 x 6 |
1000i | 1 kg | 0.1 | 0.001g | 8 x 6 |
2000i | 2 kg | 0.2 | 0.002g | 11.8 x 11 |
5000i | 5 kg | 0.5 | 0.005g | 11.8 x 11 |
10Ki | 10 kg | 1 | 0.01g | 11.8 x 11 |
20Ki | 20 kg | 2 | 0.02g | 11.8 x 11 |
50Ki | 50 kg | 5 | 0.05g | 11.8 x 11 |
