HD Series by A&D Weighing
HD Series by A&D Weighing
- Contact Now for Immediate Pricing
- 1(800)-268-3269
- inquiry@interweigh.ca

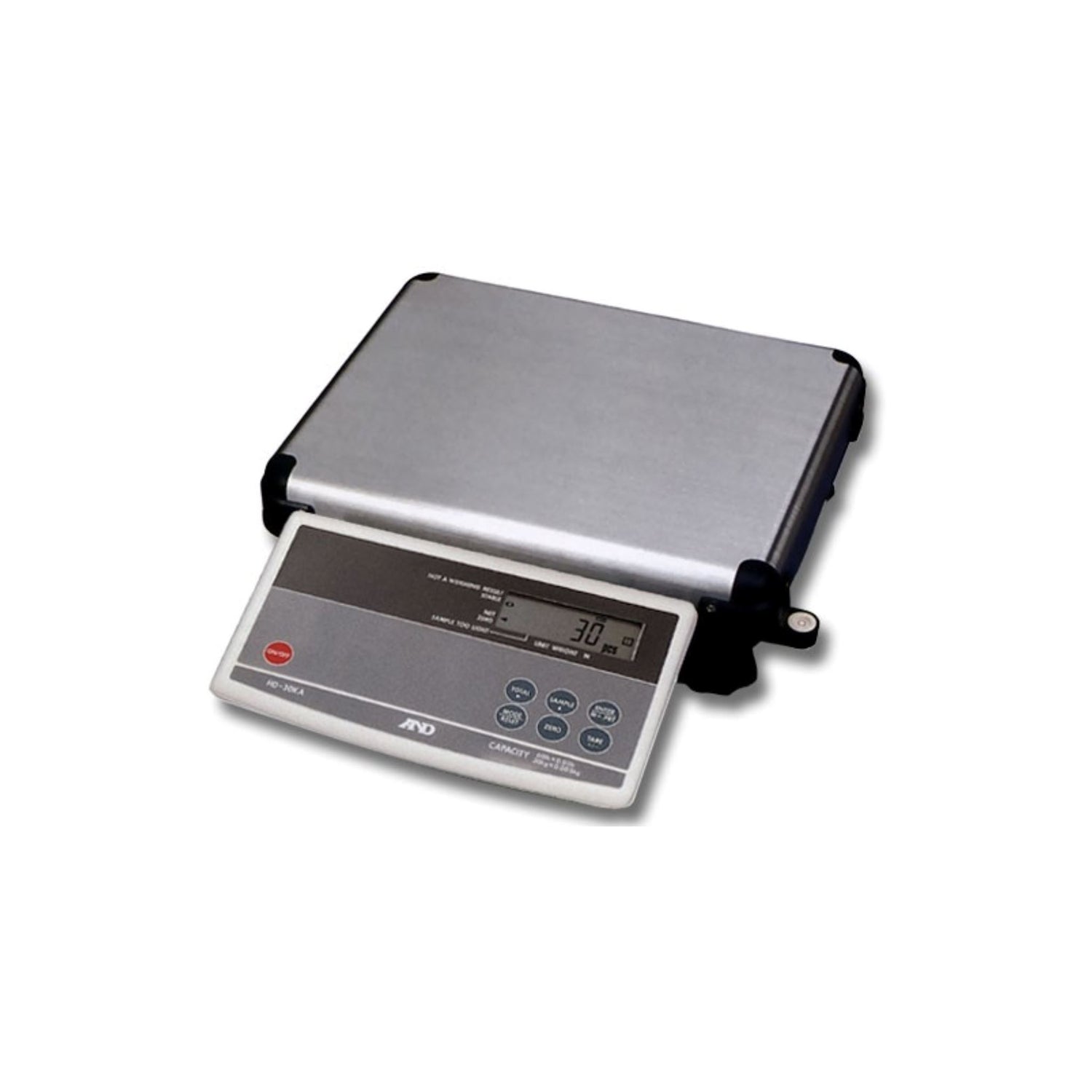

The HD Series by A&D Weighing is a portable high-capacity counting scale with a detachable display head. The HD Series offers a choice of simple operations to direct entry of tare weight, piece weight and sample size. They also use A&D's exclusive Automatic Count Accuracy Improvement. ACAI combines the two most critical performance requirements of a counting scale: count accuracy and operation expediency. Capacity ranges from 12kg (30lbs) to 60kg (120lbs) and a resolution of 2 g (0.005 lbs) to 10 g (0.02 lbs).
Download the HD Series Brochure.
Notable Features
- Designed for budget-conscious users.
- High quality, full feature scales.
- Automatic Counting Accuracy Improvement (ACAI).
- Comparator function for packaging operations.
- AC power, dry cell or optional rechargeable battery.
- Detachable display head.
- Large weighing pan for oversize containers.
- Automatic power off.
- Large wide-angle LCD display.
- Intuitive operation for ease of use.
- Capacity: 12kg (30lbs) to 60kg (120lbs).
- Resolution:2 g (0.005 lbs) to 10 g (0.02 lbs).
| Model | HD-12KA | HD-30KA | HD-60KA | HD-12KB | HD-30KB | HD-60KB |
|---|---|---|---|---|---|---|
| Capacity | 30lbs (12kg) | 60lbs (30kg) | 120lbs (60kg) | 30lbs (12kg) | 60lbs (30kg) | 120lbs (60kg) |
| Resolution | 0.005lbs(2g) | 0.01lbs(5g) | 0.02lbs(10g) | 0.005lbs(2g) | 0.01lbs(5g) | 0.02lbs(10g) |
| Sample Size | 5, 25, 50, 100 | 5, 25, 50, 100 or random numbers user selectable | ||||
| Min. Unit Weight* | 0.4/0.1 | 1/0.25 | 2/0.5 | 0.4/0.1 | 1/0.25 | 2/0.5 |
| Internal Resolution | 1/240000 | 1/600,000 | ||||
| Non-linearity | ±0.2g | ±5g | ±10g | ±2g | ±5g | ±10g |
| Sensitivity Drift | 200ppm/°C (5°C ~ 35°C) | |||||
| Operating Temp. | -10°C to 40°C / 14°F to 104°F | |||||
| Display | LCD, 17mm//0.67 inches height | |||||
| Max Count (pieces) | 30000/120000pcs | |||||
| Power | AC adapter, six AM2 (C type) 1.5V dry batteries or an optional rechargeable NiCd battery pack (AD -1681) | |||||
| Pan Size | 300 (W) x 380 (D) mm/11.81 (W) x 14.96 (D) inches | |||||
| Battery Life | Approx 100 hours with manganese type cells, 200 hours with alkaline type cells, 20 hours with rechargeable battery pack (AD-1681) | |||||
| Dimensions | 411(W) x 470(D) x 120(H) mm / 16.18(W) x 18.50(D) x 4.72(H) inches | |||||
| Weight | Approx 9kg/19.8lbs | |||||
| Calibration Mass kg | 1-12 | 10-30 | 10-60 | 1-12 | 10-30 | 10-60 |
| Calibration Mass lb | 10-30 | 10-60 | 10-120 | 10-30 | 10-60 | 10-120 |
| Standard Accessories | Instruction manual, AC adapter | |||||
| *Min weighing resolution can be selected from 1/30000 mode or 1/120000 mode | ||||||
