CS1500 Crane Scales

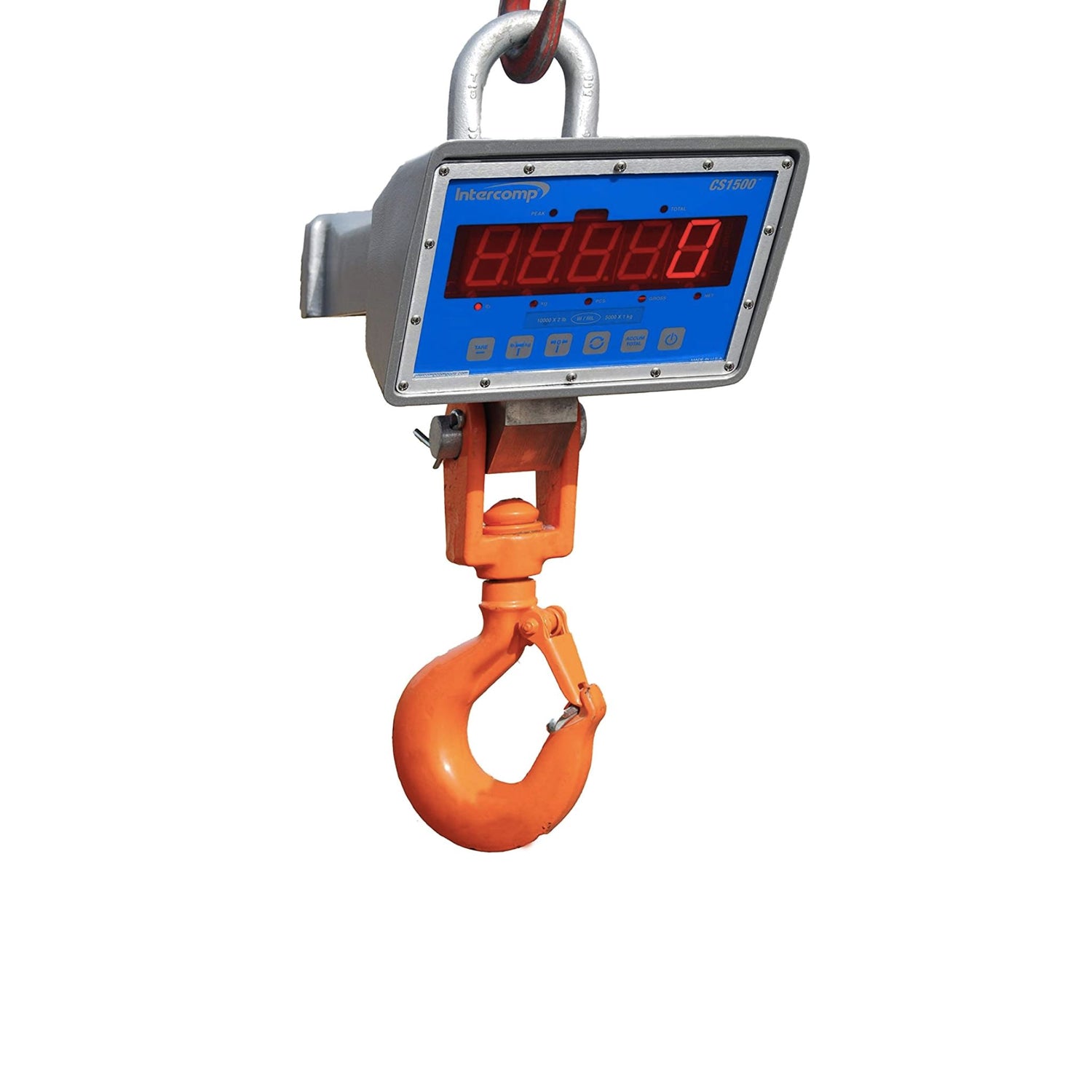

Intercomp offers the CS1500 crane scale for medium capacity industrial applications. This scale's unique design flexibility allows you to choose the model and weighing capacity you need - NTEP certified from 300 to 20,000 lb/150 to 10,000 kg. This scale utilizes a high-visibility 0.8 inch/20mm LED digital readout and efficient micro-controller delivers up to 100 hours of operation on eight D cell batteries.

Download the Intercomp CS1500 Crane Scale brochure.

Notable Features

  • Construction: NEMA IV cast aluminum case.
  • Display: utilizes a high visibility 0.8"/20mm LCD Display and infrared remote control.
  • Capacities: ranges from 500 lbs / 250 kg to 600,000 lbs / 300,000 kg.
  • Battery Life: Up to 100 hours continuous use
  • Hook, Eye, Shackles: Crosby S-1 swivel hook for dynamic loads.
  • Approvals: NTEP approved to 300 to 20,000 lbs / 150 to 10,,000 kg.
  • Superior Protection: shock-mounted in a weatherproof case.
  • Easy to Operate: includes a high-visibility digital readout for easy reading of weights and large pushbutton switches for simple, trouble-free operation.
  • Request
  • Specifications
  • Services

Please use the form below to request a Quote or More Information.

Capacity 300 lbs / 150 kg to 20,000 lbs / 10,000 kg
Accuracy +/- 0.1 % of reading
Resolution 20 bit A/D delivers over 1,000,000 internal counts
Speed 3 seconds to typical reading
Nominal Overload 200% of Capacity
Maximum Overload 500% of Capacity
Display 5.5 digit light emitting diode, 0,8"/20mm LCD
Indicators lb/kg, Zero, Tare Set/Display, Tare Clear, On/Off, and NET
Power Eight D-Cell Disposable Alkaline Dry Cell or Rechargeable NiCad Batteries (Not Included)
Calibration User calibration. Initial factory calibration, fully traceable (certified).
Operating Temperature Range -4 to 140°F/-20 to 60°C in 10 to 95%, Non-Condensating Humidity

Crane Scale Options

  • Stainless steel housing
  • RS-232 output
  • LCD Display
  • Direct 120/220 volt
