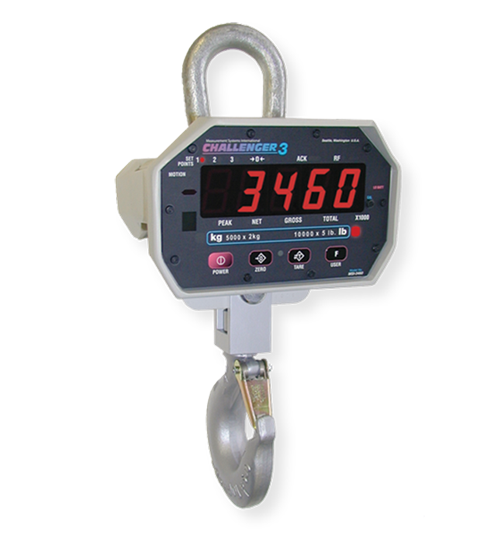

MSI-3460 Challenger 3 Crane Scale

Accuracy:
± (0.1% +1 d) of applied load

Resolution:
2,000 to 3,750 d standard (Up to 10,000 d available)

Enclosure:
NEMA Type 4, IP65, powder coated cast aluminum

Lifting Eye & Hook:
Crosby® or equivalent with 360° non-bearing swivel hook

Design Overload:
200% Safe / 500% Ultimate

Functions:
Power: Turns unit ON or OFF
Zero: Zeros applied load up to 100% of capacity (limited range in NTEP/OIML configurations)
Tare: Tares applied load and displays weight in Net mode
User: Programmable as test, units, net/gross, total, peak hold and setpoints

Display:
5-digit, 1.5 in (38 mm) LED with programmable brightness control

Displayable Units:
Pounds or kilogram selectable

Annunciators:
COZ, Net, Gross, Total, Peak, Low Battery, lb/kg, Motion, Setpoints, ACK IN, ACK OUT, RF

Power:
6 Volt rechargeable battery. 115/230 VAC battery charger is included

Operating Time:
Up to 80 hours between charging with typical use. Less with optional RF Model

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C)
Legal for Trade: 14 °F to 104 °F (-10 °C to 40 °C)

Auto-Off Mode:
Select for 15, 30, 45, 60 minutes or Off

Auto Sleep Mode:
Power down during non-use and power up with weight change or any key press

Service Counters:
Counts number of lifts over percentage of capacity and lifts over capacity

Calibration:
Digital

Filtering:
OFF, LO, HI-1, HI-2 selectable

Warranty:
One-year limited
