3052 Series Intrinsically Safe Indicator
3052 Series Intrinsically Safe Indicator is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

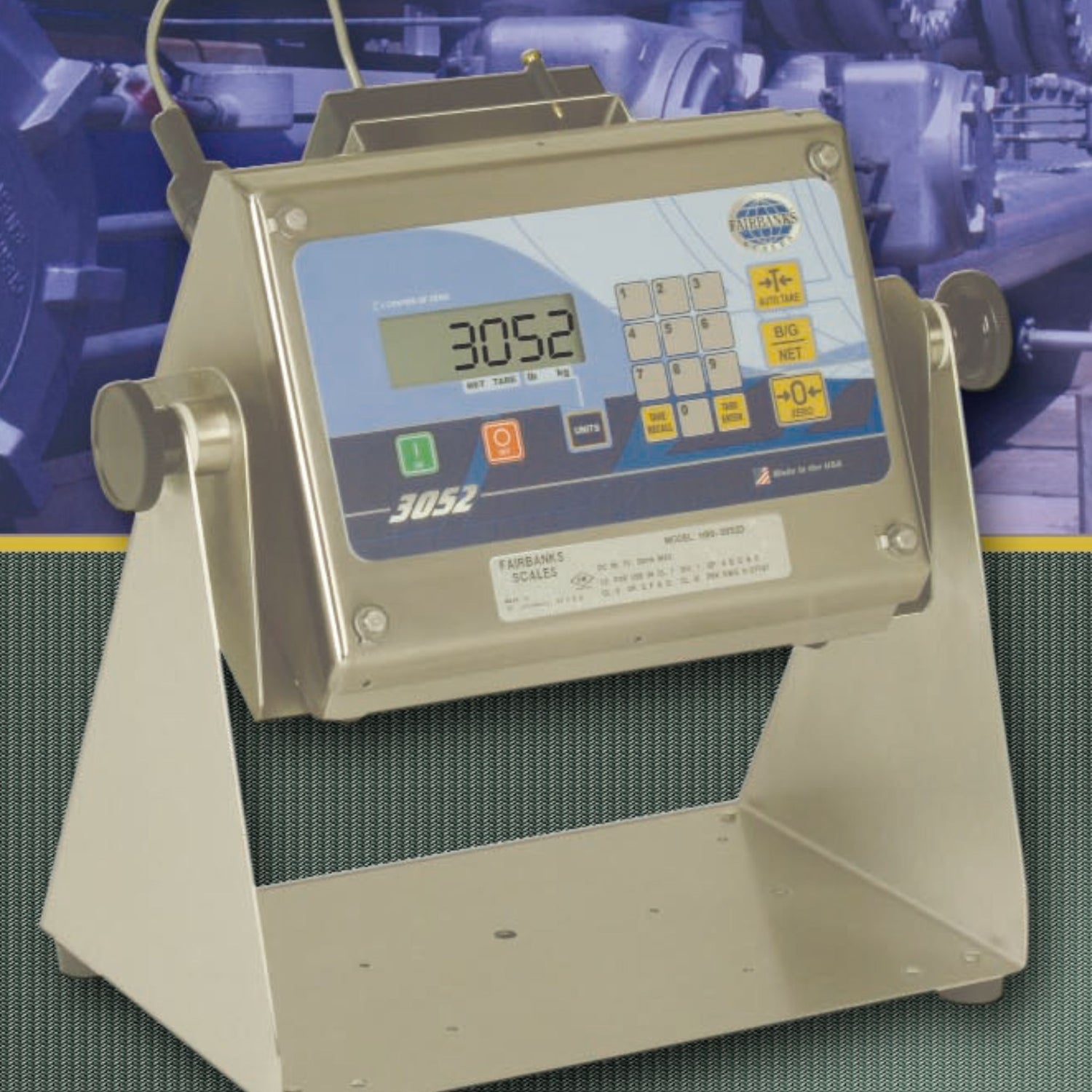

Fairbanks 3052 Series Intrinsically Safe Digital Weight Indicators
Fairbanks 3052 Series indicators are intrinsically safe, ultra-low-power instruments. They offer the convenience of a versatile electronic indicator with features required in hazardous areas, eliminating the need for traditional explosion-proof enclosures or purging systems.
Standard Features
- Rechargeable battery pack provides up to 250 hours of continuous power. Direct power supply also available.
- 0.75”, 6-digit, 7-segment Liquid Crystal Display for ease of viewing.
- Convenient On and Off buttons
- Units button toggles between pounds and kilograms
- Full numeric feather touch keypad
- Rugged NEMA 4X stainless steel enclosure provides protection in harsh washdown environments.
Specifications
| Display | 0.75” 6-digit LCD |
| Display Resolution |
5000 divisions commercial, 10,000 divisions non-commercial |
| Keypad | Full numeric keypad, 0 to 9 |
| Capacity |
Up to 20,000 lbs |
| Division Size | 0.002 to 5 |
| Units | lbs/kg, lbs only, kg only |
| Excitation | 10 volts pulsed |
| Load Cells |
One 350 ohm cell; up to four 1000 ohm cells; up to four 350 ohm cells at 2000 divisions |
| Pushbutton Zero Range | 2% or 100% selectable |
| Data Storage |
100% retention of calibration data in non-volatile EEPROM |
| Humidity | 0 to 100%; suitable for washdown |
| Enclosure | Stainless steel, NEMA 4X rated |
| Power Requirements |
7-volt rechargeable lead-acid battery pack for 50 hours of continuous operation |
| Accessories | Battery pack, direct power supply, wall/desk mount bracket, rechargers, power supply cables |
| Approvals |
NTEP CC# 92-050, CSA, MC #AM-4855, FM approved for Classes I, II & III, Division 2, Groups A, B, C D, F, & G |
