Floor Scales

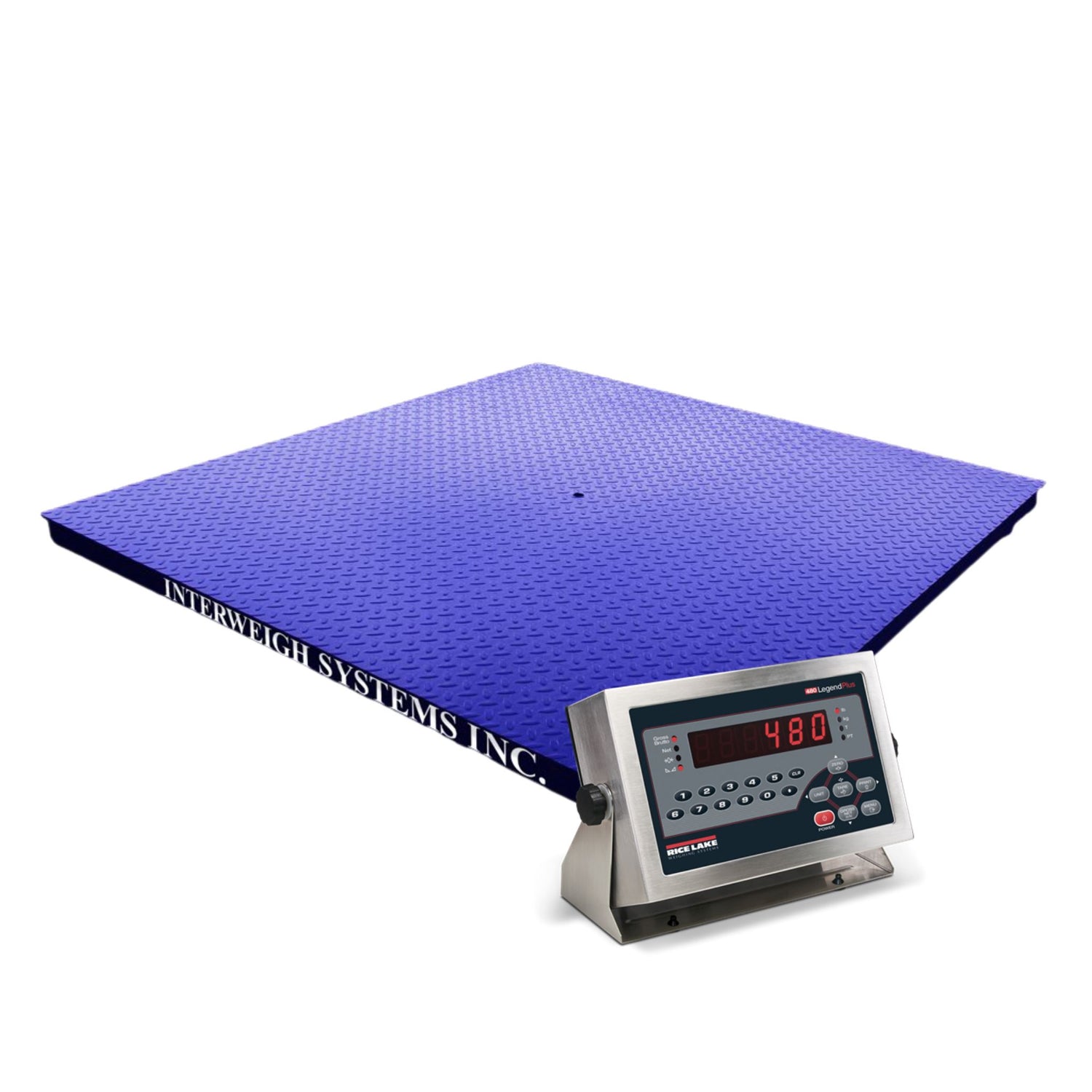

Floor Scales - Rice Lake 480 Legend Indicator is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description
Download ISI Floor Scale Datasheet

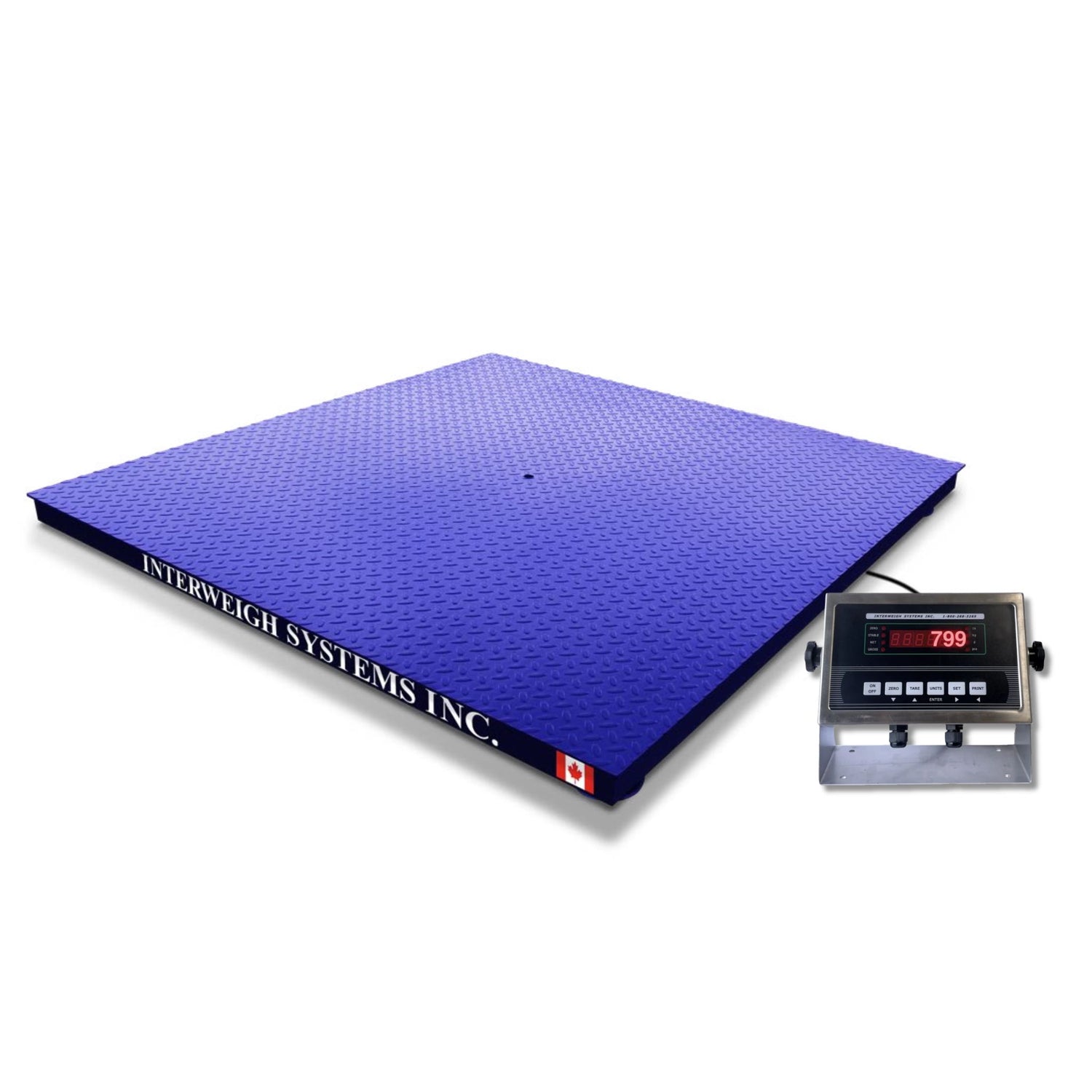

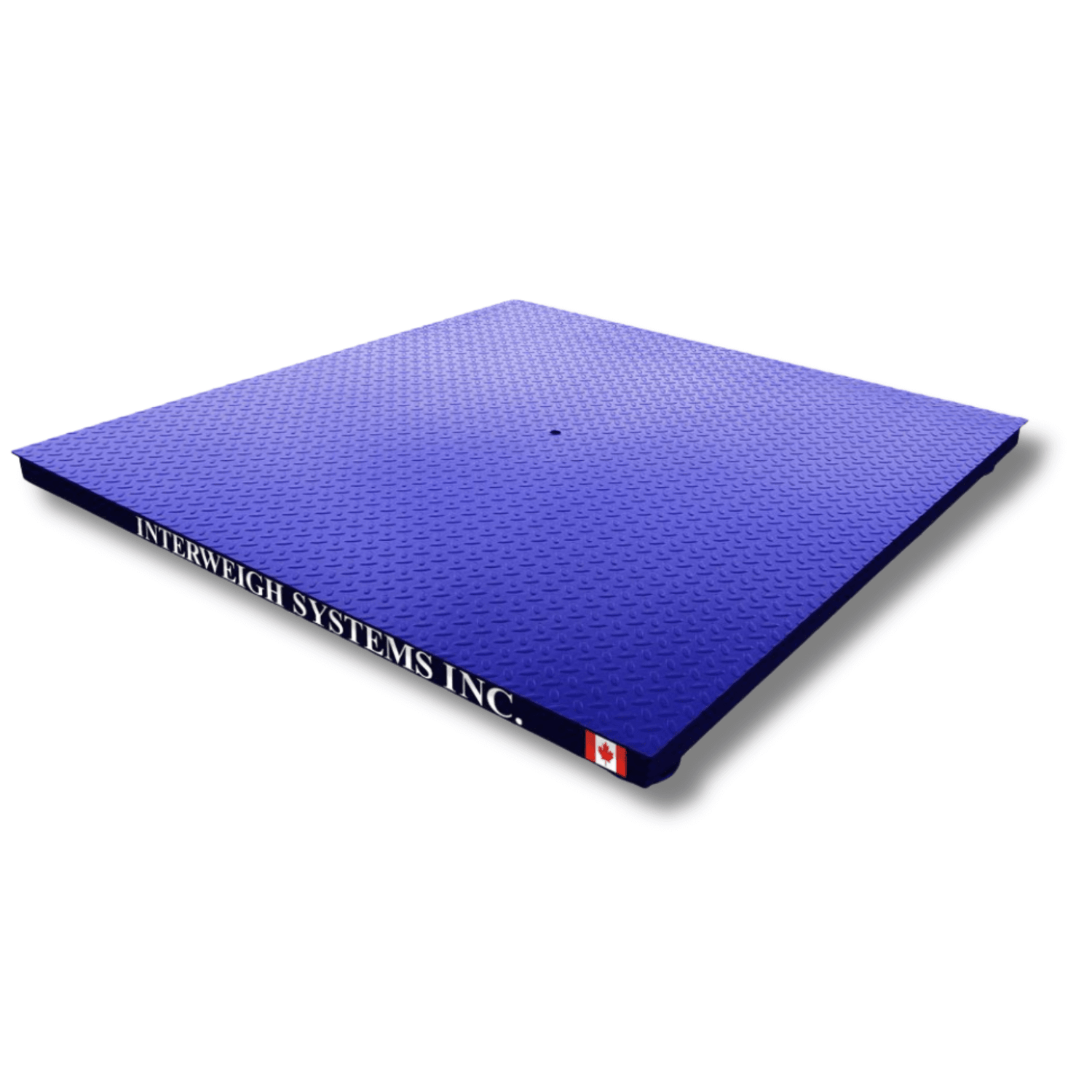

Interweigh Systems Inc. builds and supplies floor scales for general purpose operations in shipping and receiving. Our floor scales are ideal for weighing heavy objects such as drums and objects that require the use of a forklift, a dolly or a cart for transportation.
Notable Features
- Rugged - Durable platform design withstands forklift traffic. 300% overload capacity. 150% end-load capacity. The sum capacity of load cells is twice the scale capacity.

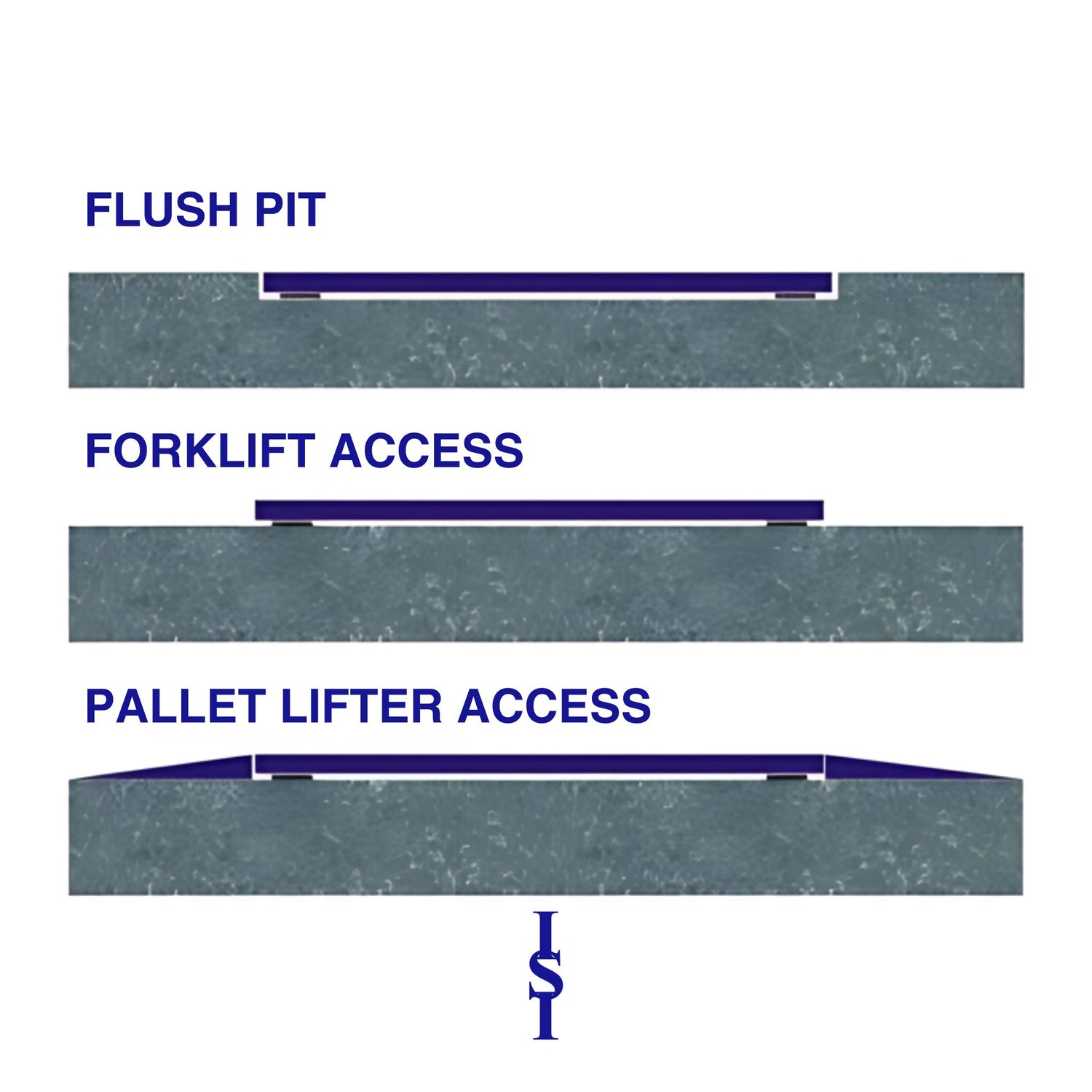

- All-Purpose - Easy to install. Levels with foot adjustment. Easy to relocate. Install above or below ground. Built-in mild or stainless steel. Full line of accessories available.
- Built to the Highest Quality - Uses shear beam load cells. Weights & Measures approvable. Understructure bracing is built with structural steel. Nema IV rated control box enclosure.
Floor Scale Options
- Mild or Stainless steel.
- Custom sizes.
- Precalibrated indicator.
- Smooth or checkerplate
Floor Scale Accessories
- Ramps
- Pit Frames
- Pit Packages
- Bump Guards
- Pit Coping
- Digital Indicators
- All Nema Ratings
Specifications
| Size (ft) | Capacity (lbs) | Height |
|---|---|---|
| 2' x 2' | 1,000 | 3.5" |
| 3' x 3' | 2,000 / 5,000 | 3.5" |
| 4' x 4' | 5,000 / 10,000 | 3.5" |
| 4' x 5' | 5,000 / 10,000 | 3.5" |
| 4' x 6' | 5,000 / 10,000 | 3.5" |
| 5' x 5' | 5,000 / 10,000 | 5.0" |
| 5' x 7' | 10,000 / 20,000 | 5.0" |
