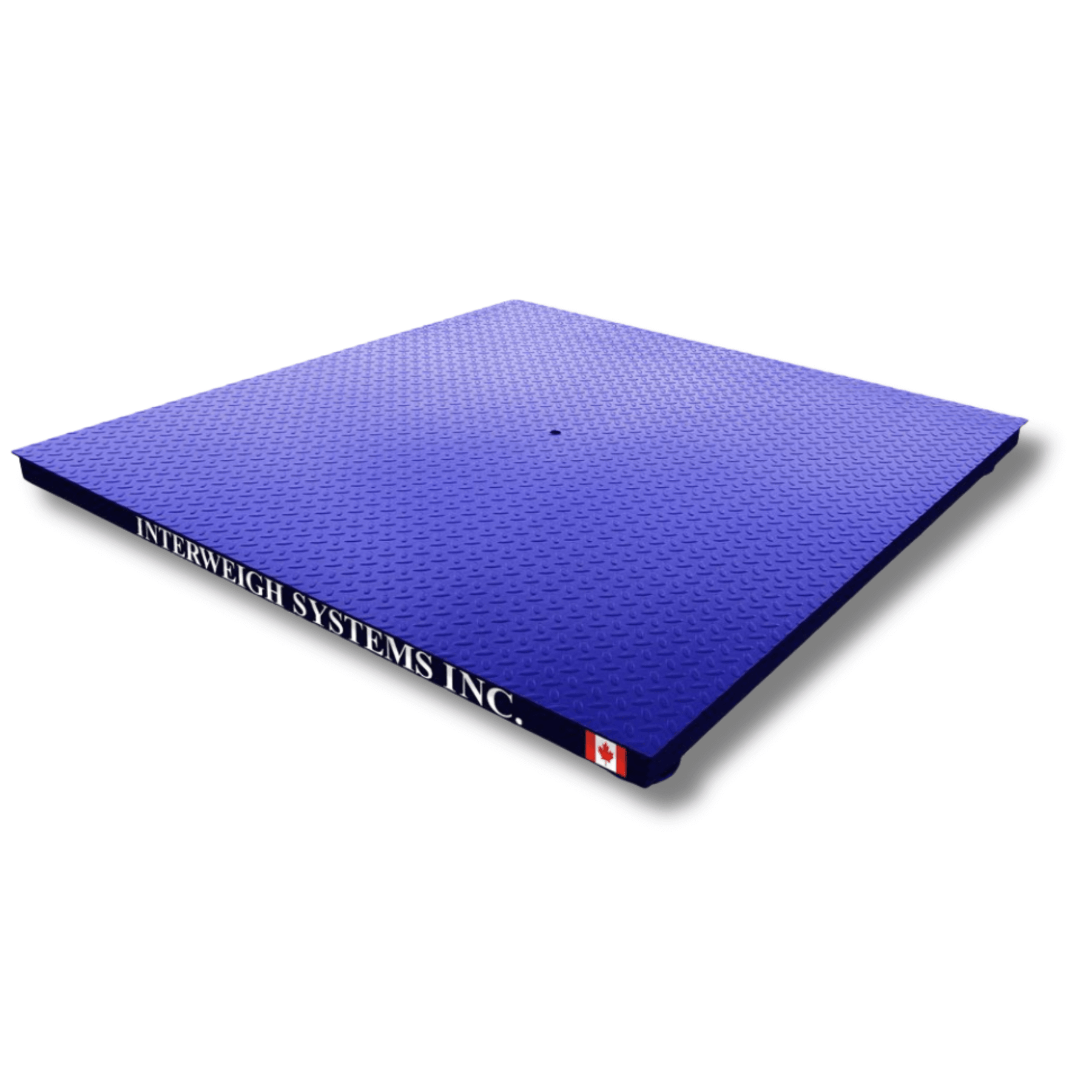

Low Profile Floor Scales
Interweigh Systems Inc. designs and supplies low-profile floor scales for general purpose operations in shipping and receiving. Our low-profile floor scales are ideal for weighing heavy objects such as drums and objects that require the use of a forklift, a dolly or a cart for transportation.
Notable Features
- Rugged - Durable platform design withstands forklift traffic. 300% overload capacity. 150% end-load capacity. The sum capacity of load cells is twice the scale capacity.
- All-Purpose - Easy to install. Levels with foot adjustment. Easy to relocate. Install above or below ground. Built-in mild or stainless steel. Full line of accessories available.
- Built to the Highest Quality - Uses shear beam load cells. Weights & Measures approvable. Understructure bracing is built with structural steel. Nema IV rated control box enclosure.
Floor Scale Options

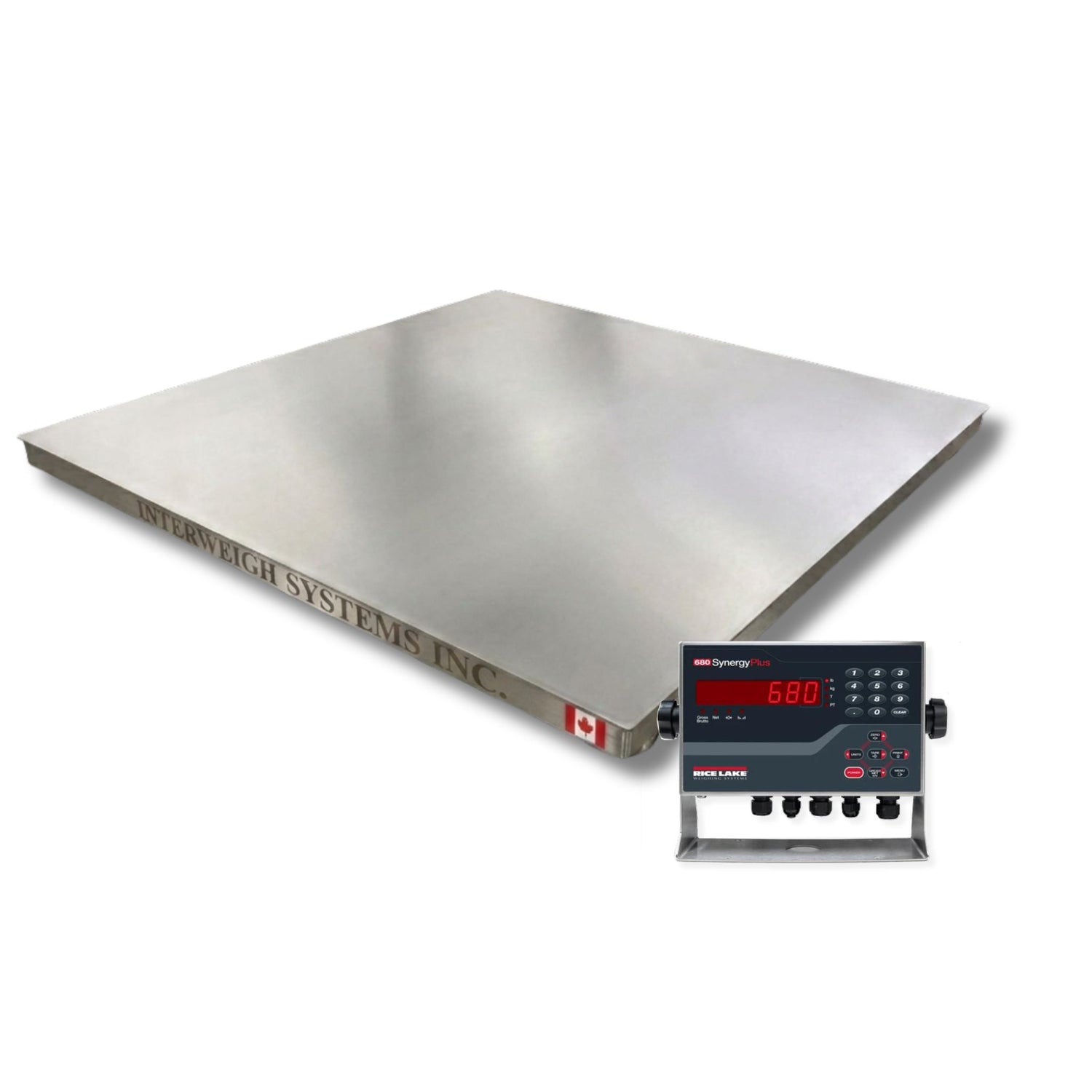

- Mild or Stainless steel.
- Custom sizes.

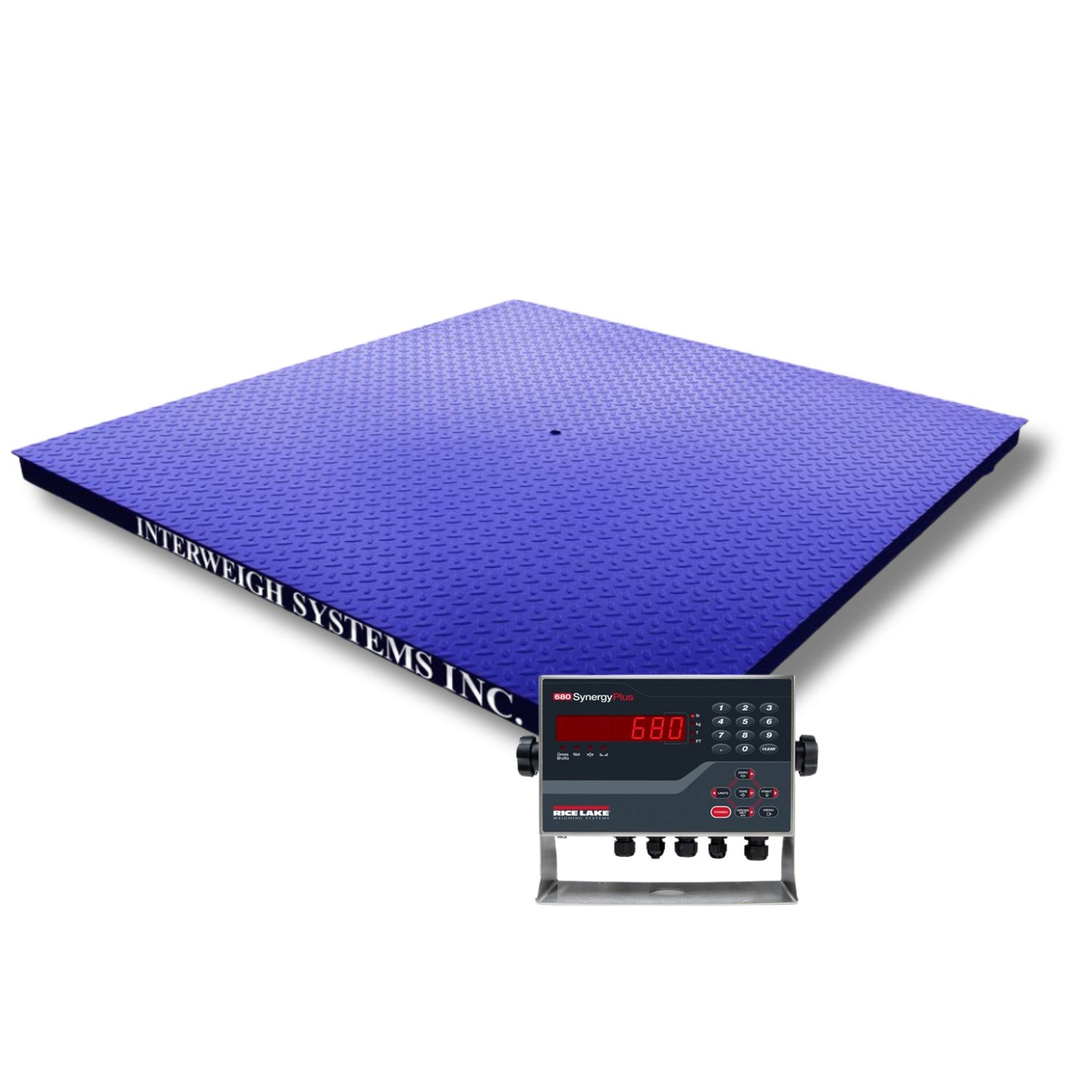

- Precalibrated indicator.
- Smooth or checkerplate
Floor Scale Accessories
- Ramps
- Pit Frames
- Pit Packages
- Bump Guards
- Pit Coping
- Digital Indicators
- All Nema Ratings
Design Configurations
| Size | Capacity (lbs) | Height |
|---|---|---|
| 2' x 2' | 1,000 | 3.5" |
| 3' x 3' | 2,000 | 3.5" |
| 3' x 3' | 5,000 | 3.5" |
| 4' x 4' | 5,000 | 3.5" |
| 4' x 4' | 10,000 | 3.5" |
| 4' x 5' | 5,000 | 3.5" |
| 4' x 5' | 10,000 | 3.5" |
| 4' x 6' | 5,000 | 3.5" |
| 4' x 6' | 10,000 | 3.5" |
| 5' x 5' | 5,000 | 3.5" |
| 5' x 5' | 10,000 | 5.0" |
| 5' x 7' | 10,000 | 5.0" |
| 5' x 7' | 20,000 | 5.0" |
| 6' x 8' | 20,000 | 5.0" |
For More Information Download Our Brochure
