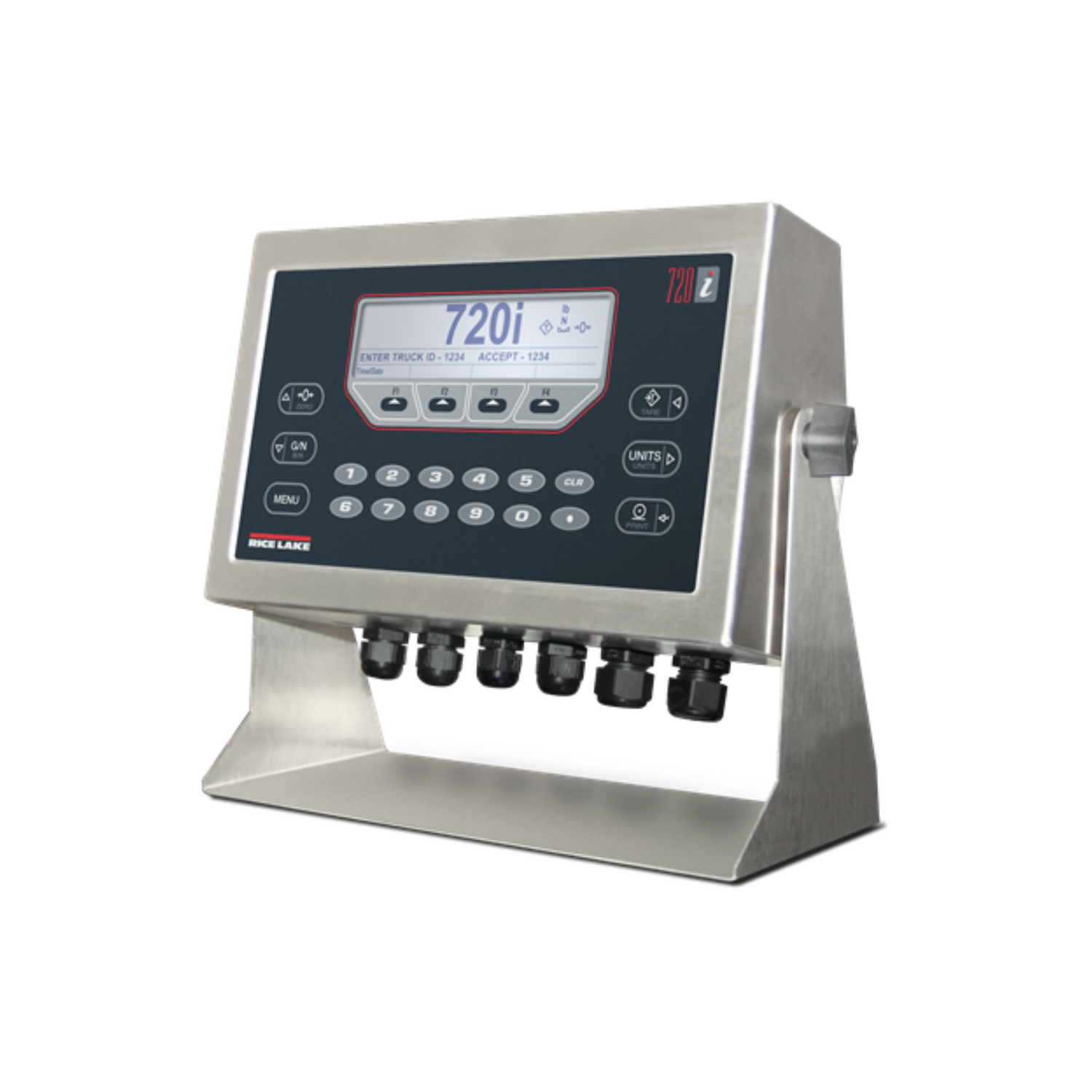

Rice Lake 720i Digital Weight Controllers
The 720i Digital Weighing Indicators set a new standard for control over more processes, more equipment, and more information than ever before. The 720i allows you to automate entire systems by dictating batch formulation, inventory management, or traceability. Capture and store weight data. Link more peripheral equipment. And do it all with incredible ease. Advanced programmability using ProAction (PCEE) and enhanced database storage make the 720i ideal for a wide variety of weighing applications. Available in both universal and panel-mount configurations.
Download the 720 IQ Plus Brochure.
Notable Features
- LCD display size: panel mount (3.8" x 1.2") universal (5.3" x 1.5")
- Four soft keys
- Truck in/out, 1,000-ID memory
- Process control engine - define conditions and actions
- Data storage onboard, user-defined
- (8) Digital I/O (expandable)
- One option slot for pluggable options
- (20) Auxiliary print formats
- Time & date
- Audit trail tracking and alibi storage
- Peak hold
- Rate of change
- Multi-range/interval
- Local/remote
Functionality:
- Two full-duplex serial ports
- One PC style (PS/2) keyboard port
- Header for fiber optic, Ethernet or USB
| Power | Line voltages: 115 or 230 VAC, Frequency: 50 or 60 Hz Power consumption: 25 watts maximum |
| Excitation Voltage | 10 VDC, 16 x 350 ohm or 32 x 700-ohm load cells |
| Analog Signal Input Range | -10 mV to +45 mV |
| Analog Signal Sensitivity | 0.3 ¼V/graduation minimum @ 7.5 Hz 1.0 ¼V/graduation typical @ 120 Hz 4.0 ¼V/graduation typical @ 960 Hz |
| A/D Sample Rate | 7.5 to 960 Hz, software selectable |
| Resolution | Internal resolution: 8 million counts/8,000,000 23 bit Weight display resolution: 9,999,999 |
| System Linearity | ± 0.01% full scale |
| Digital I/O | Eight channels on CPU board; optional 24-channel I/O |
| Circuit Protection | RFI, EMI, ESD protection |
| Serial Output | Two ports on the CPU board support up to 115,200 bps; optional dual-channel serial expansion boards available Port 2: Full duplex RS-232 with handshaking Port 4: Full duplex RS-232, simplex 20 mA output PS-2 Keyboard port hard-wired (Scan Code 1) |
| Optional Communication | Ethernet TCP/IP RS-485-4 wire Fiber optic USB |
| Rating/Material | NEMA 4X/IP66, stainless steel |
| Display | Viewable area: Panel mount 3.8 in x 1.2 in (96 mm x 30 mm) Universal 5.3 in x 1.5 in (133 mm x 39 mm) 240 x 64 pixel, Transflective VGA Liquid Crystal Display (LCD) module with adjustable contrast |
| Keyboard | 10-key (panel mount) membrane panel, 22- key (universal mount) membrane panel tactile feel, 720i will support an external keyboard |
| Operating Temperature | Legal: 14°F to 104°F (-10°C to +40°C) Industrial: 14°F to 122°F (-10°C to +50°C) |
| Dimensions (W x H x D) | Universal: 10.5 in x 7.5 in x 3.4 in Panel Mount Display: 7.6 in x 3.9 in x 1.5 in CPU: 6 in x 11 in x 2.2 in |
| Weight | Universal enclosure: 9.5 lb (4.3 kg) Panel Mount enclosure: 8.5 lb (3.9 kg) |
| Approvals | NTEP - certified at 10,000 divisions, Class III/IIL CC# 08-022 Measurement Canada-10,000 divisions, Class III/IIIHD (Pending) OIML-6,000/10,000 divisions (Pending) CE marked UL /CUL listed (universal) UL recognized (panel mount) ROHS compliant |
| Warranty | Two-year limited warranty |
