ISI In-Motion Weighing System
ISI In-Motion Weighing System is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

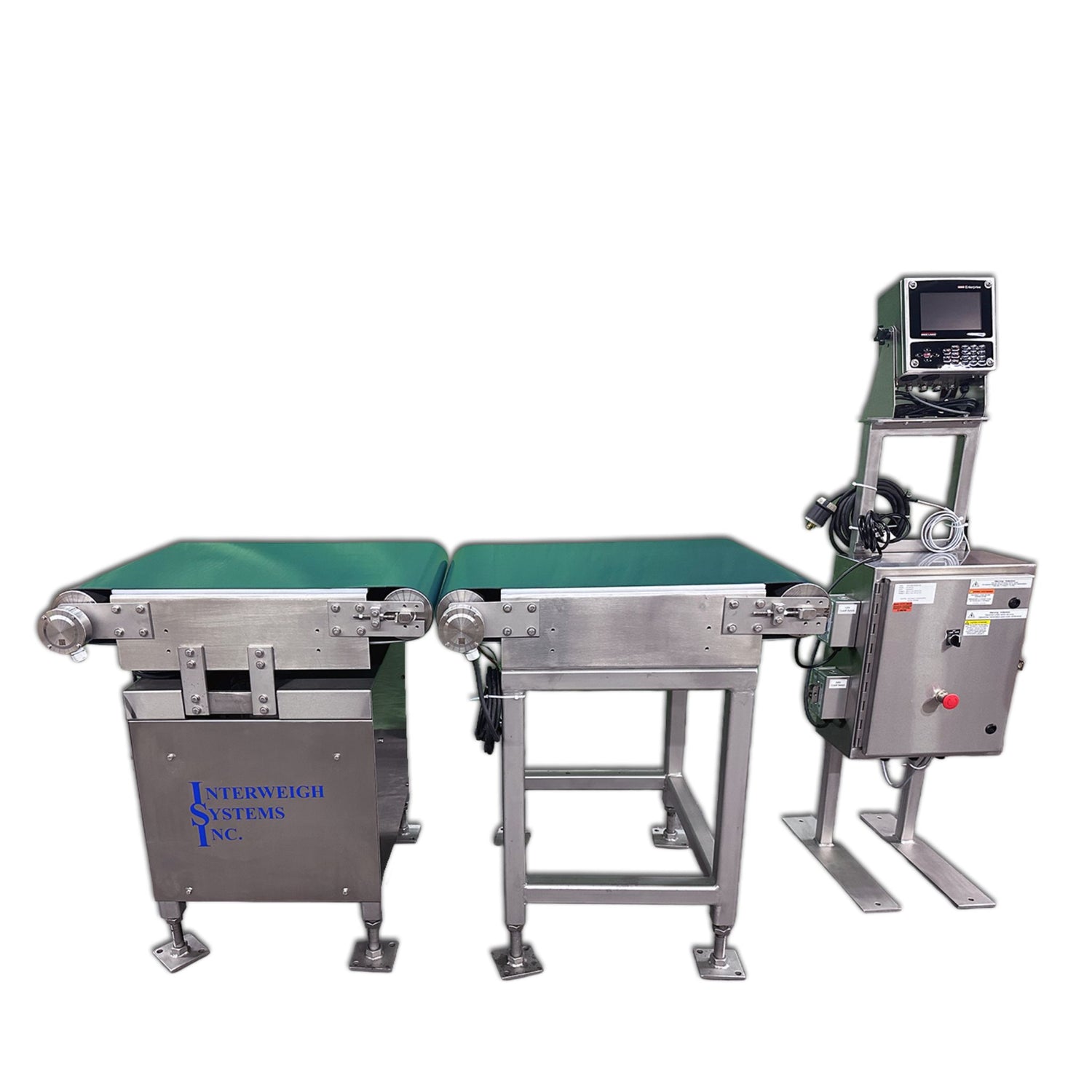

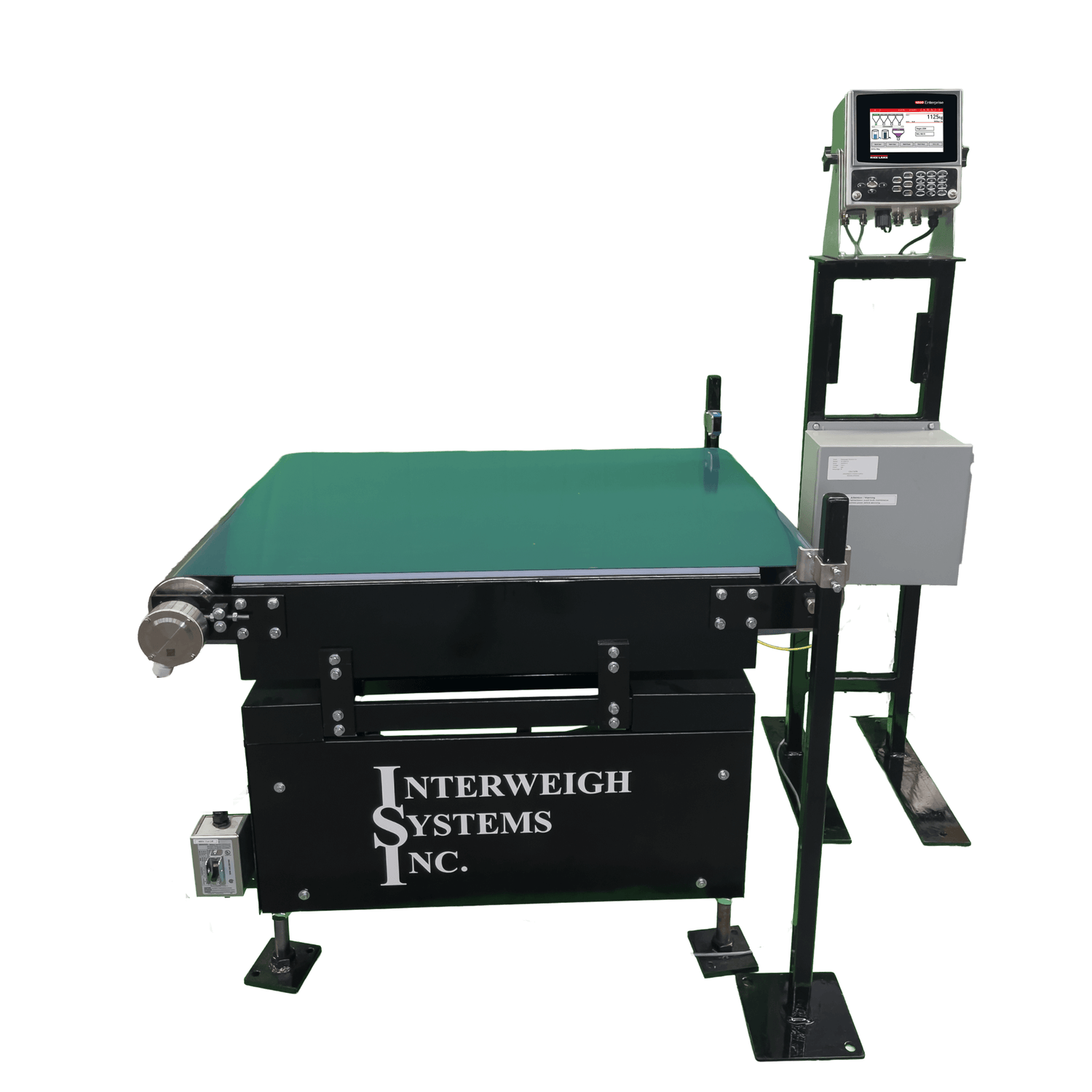

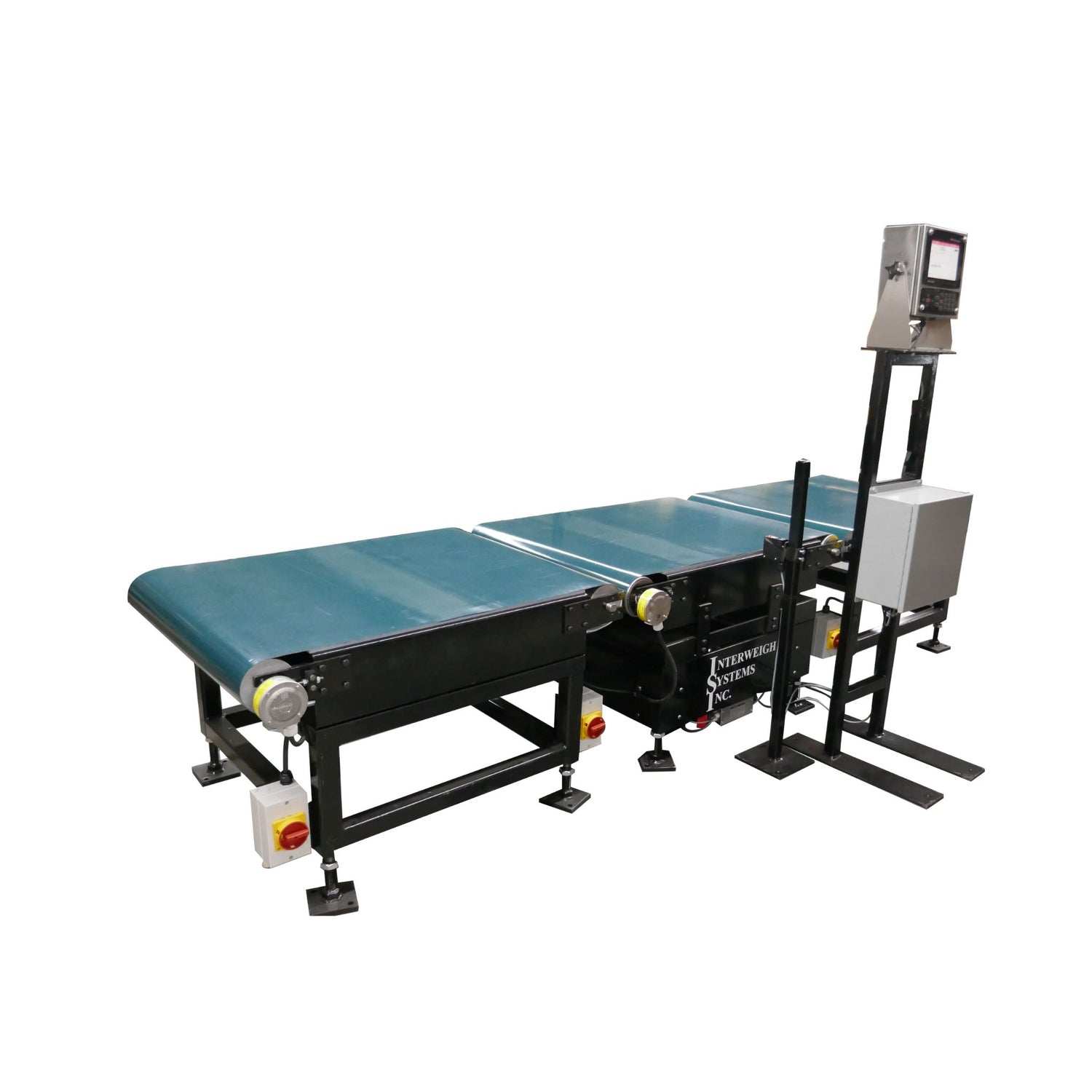

Our own custom-built in-motion checkweigher.
Interweigh's In-Motion Weighing Systems are built to capture the weight of a carton or package as it moves along the scale's conveyor. The carton passes through a photo-sensor which triggers the weighing process. The weight is displayed on the scale's digital indicator, which can transmit the weight via RS-232, Ethernet, and PLC Interface options to the end user.

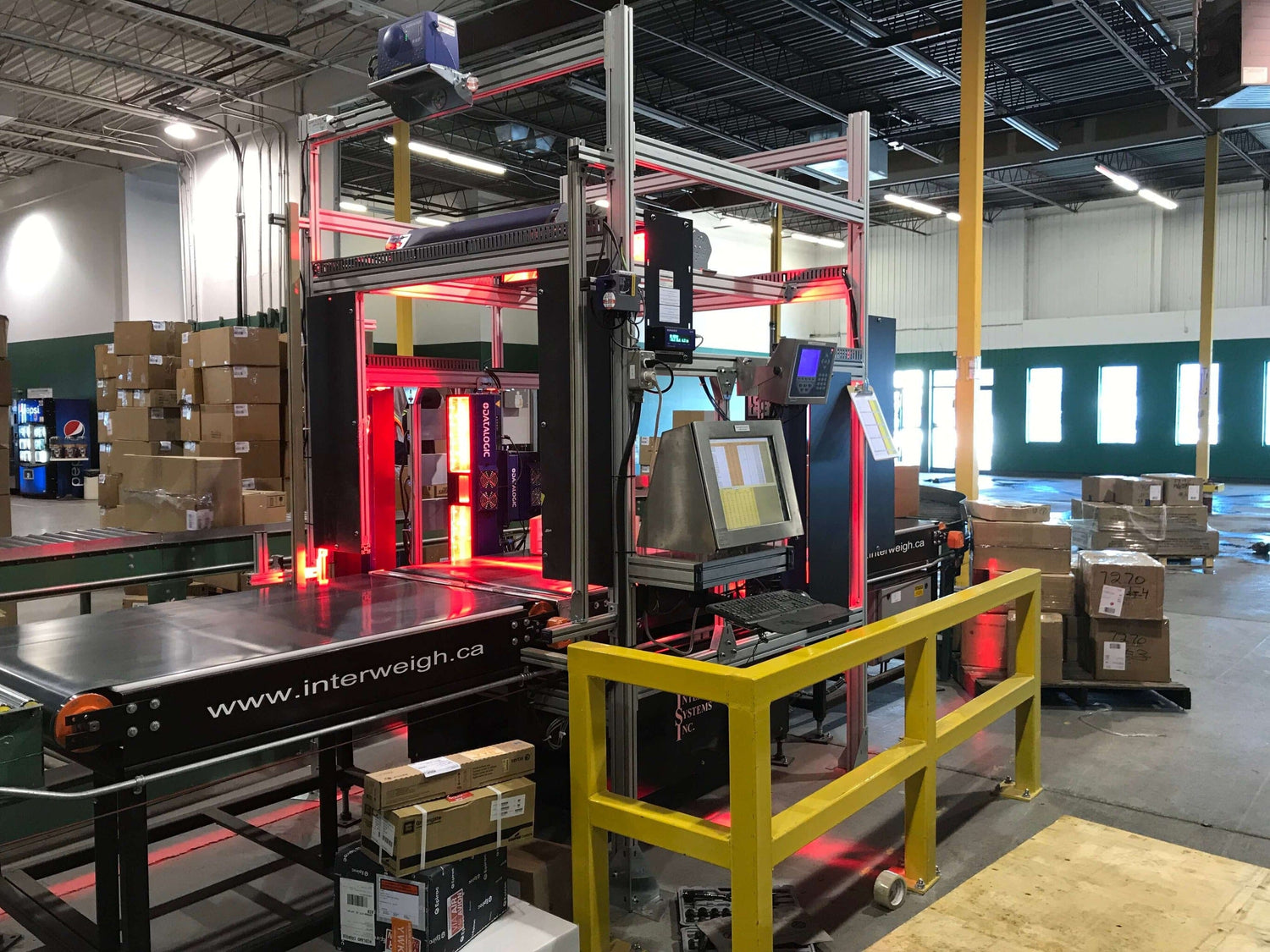

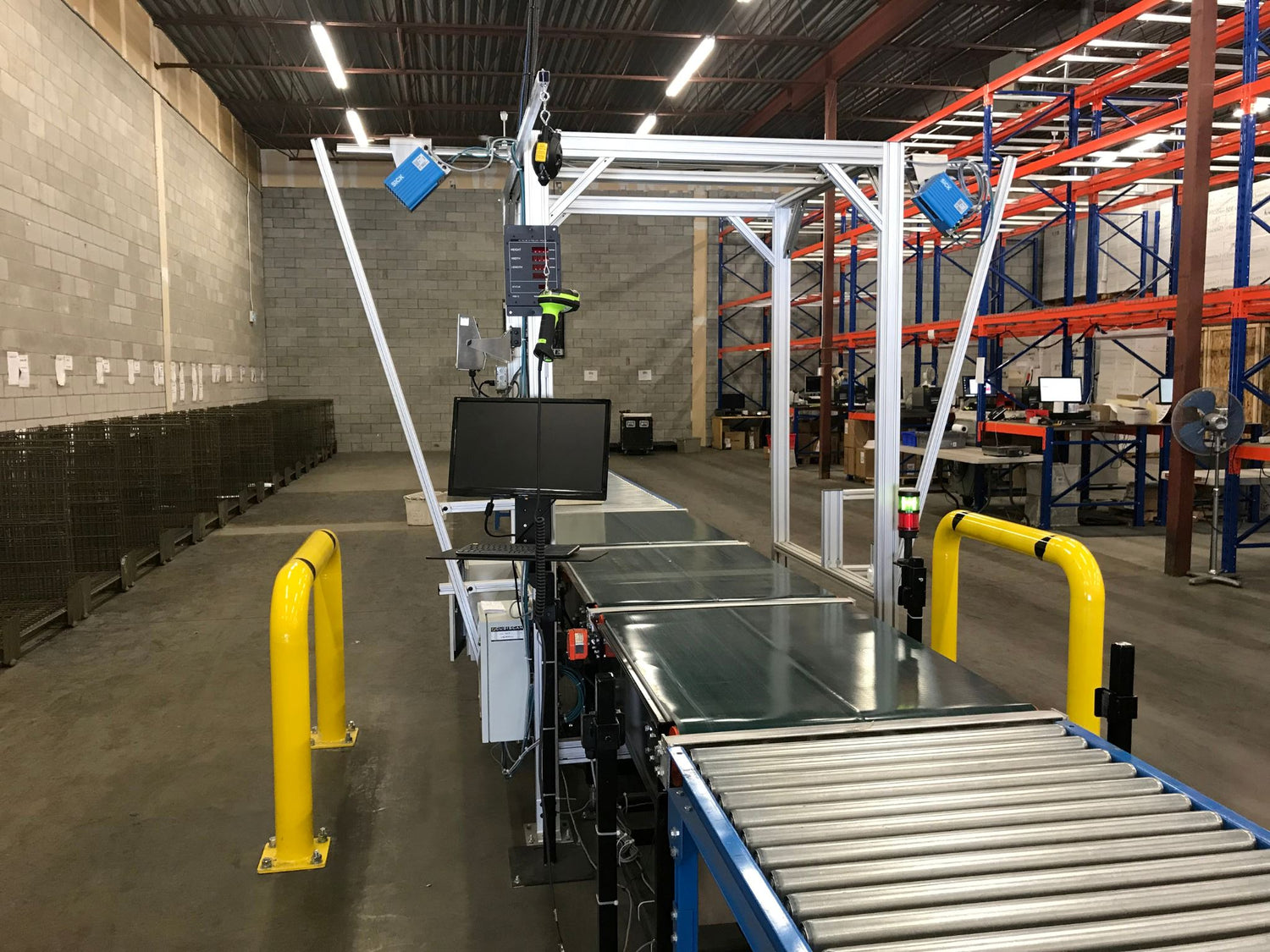

Optional scanning, dimensioning and print & apply equipment is available upon request. Conveyor speeds can reach up to 240 feet per minute, depending on the conveyor and package size. These conveyor scales integrate with existing systems and come in various lengths and widths to accommodate different applications.
Can be Measurement Canada approved at certain configurations.
Legal for Trade Capacities: 51kg x 20g
Notable Features

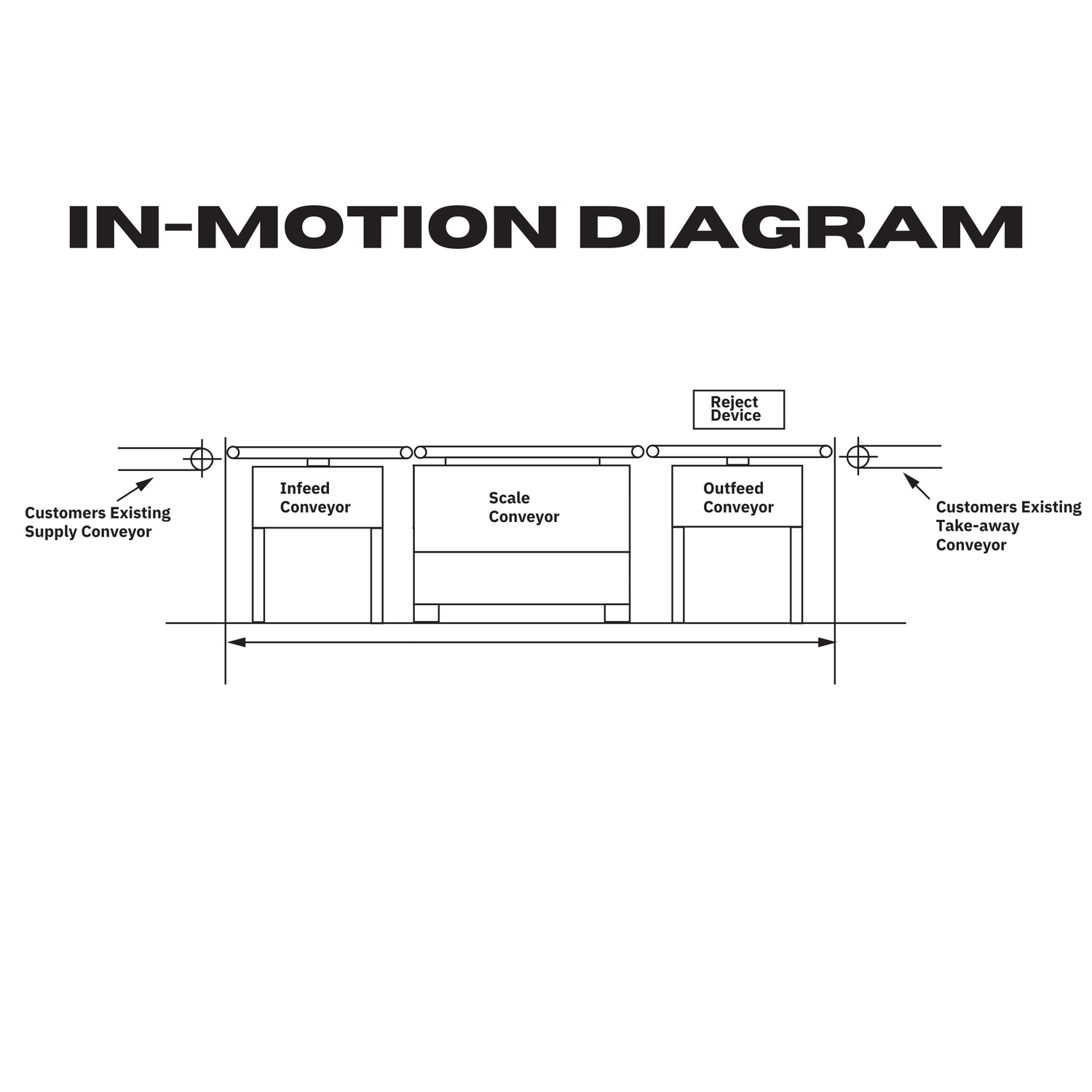

- Can fit into any existing conveyor line.
- Optional infeed and outfeed conveyors are available.
- Conveyor speeds are variable up to 240 ft per minute.
- Easy to Read LCD Display with Backlight.
- 1,000 Item Data Memory.
- Preset Tare.
- Units of Measure (lb, g, kg)
- Stainless Steel or Mild Steel Construction.
- RS232C/422/485, Ethernet, PLC Interface Output Options.
- Equipped with a Rice Lake 1280 Enterprise Series Indicator
Specifications
| Power Source | AC120 |
| Output | RS-232C, Ethernet, PLC Interface Options |
| Calibration | Manual with standard weight |
| Legal for Trade Capacity | 51 Kg × 0.02 Kg / 101 Kg × 0.05 Kg 112 lb × 0.05 lb / 222 lb × 0.1 lb |
