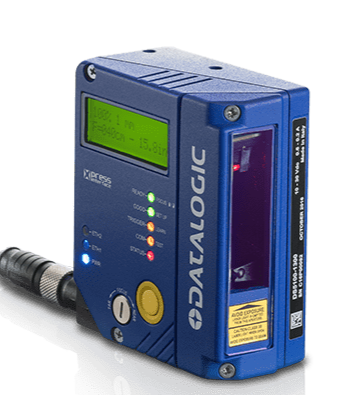

Datalogic DS5100
Standard Features
• Medium, Long Range, Linear and Oscillating Mirror models, user selectable focus for high application
flexibility
• ID-NET interface and Ethernet Bus Connections (EBC)
• Embedded PROFINET-IO and EtherNet/IP for connectivity to main industrial Fieldbus
• X-PRESS interface, Genius software tool, embedded multi-language display for easy scanner setup and maintenance
• Rotating connector block for flexible form factor and easy installation
• DST (Digital Signal Technology), ACR4 reconstruction technology and PACKTRACK tracking technology
on Long Range
• Superior ambient light immunity from high-frequency laser modulation
• Top industrial grade, IP65 and subzero version* for low-temperature environments
Specifications
|
Industrial Laser Barcode Scanners |
DS5100 DS5100-X3XX DS5100-X4XX |
|
Reading Distance (Min/Max) |
medium range: 200-1000mm Long range: 300-1400mm |
|
Max Resolution |
up to 0.2mm (8mils) |
|
Scan Rate |
800 scan/s |
|
Focus Adjustment |
mechanically adjustable focus with locking |
|
Scan Pattern Type |
linear/oscillating mirror/deflection |
|
Aperature Angle |
65 degrees |
|
Multilabel Reading |
up to 10 codes in the same reading phase |
|
Bar code assignment technology |
Packtrack tracking technology on Long Range models DS5100-24xx only when configured in an EBC network (not available on Medium Range models) |
|
Reconstruction code technology |
ACR4 |
|
Readable codes |
Code 2/5, Code39, Code93, Code128, EAN/UPC, EAN128, Codabar, Pharmacode, Plessey, ISBT128 |
|
Case material |
Aluminum |
|
Dimensions (typical value) |
LIN: 101 x 85 x 42 mm (3.98 x 3.35 x 1.65 in) OM: 116.7 x 123.6 x 48.4 mm (4.60 x 4.86 x 1.90 in) LIN: 101 x 104.2 x 42 mm (3.98 x 4.1 x 1.65 in) OM: 116.7 x 142.9 x 48.4 mm (4.60 x 56.26 x 1.90 in) LIN: 117.75 x 104.6 x 42 mm (3.98 x 4.12 x 1.65 in) OM: 125.8 x 143.3 x 48.4 mm (4.95 x 5,64 x 1.90 in) |
|
Weight |
LIN: 580 g. OM: 775 g. LIN: 520 g OM: 715 g. LIN: 550 g OM: 745 g |
|
Operating temperature |
0° to +50 °C (+32°F to +122 °F) Subzero version -35°C to +50°C (-31°F to +122 °F)* |
|
Storage temperature |
-20° to +70° C (-4°F to +158 °F) Subzero version -35° to +70° C (-31°F to +158 °F)* |
|
Ip rating |
IP65 |
|
Embedded communication interfaces |
Main port RS232/RS485-FD up to 115.2 Kbit/s Auxiliary port RS232 up to 115.2 kbps ID-NET™ RS485 multidrop port up to 1 Mbps Main port RS232/RS485-FD up to 115.2 Kbit/s Auxiliary port RS232 up to 115.2 kbps ID-NET RS485 multidrop up to 1 Mbps EtherNet/IP, Modbus TCP, Ethernet TCP/IP, PROFINETIO Class A PROFINET-IO Class B EBC Technology (only as slave of SC5000) |
|
Fieldbus/ethernet |
Fieldbus supported through CBX or QLM external device Embedded EtherNet/IP, PROFINET-IO, Modbus TCP Other fieldbus supported through CBX or QLM external device Embedded PROFINET-IO |
|
Digital inputs |
2 Input (optocoupled, NPN/PNP) 2 Input (optocoupled, NPN/PNP) 1 Input (optocoupled, NPN/PNP) |
|
Digital outputs |
2 Outputs (optocoupled) 2 Outputs (non-optocoupled) / |
|
Operating Modes |
On-line, Serial On-line, Automatic, Continuous, Test, Verifier, Packtrack tracking technology on Long Range when configured in an EBC network |
|
Display |
16 x 2 characters |
|
Device Programming |
Genius (Windows™ based) software tool Serial Host Mode Programming sequences XPRESS interface |
|
Voltage supply/power consumption |
DS5100 XX00 DS5100 XX20 10-30V; 6W 10-30V; 7,5W DS5100 XX05 DS5100 XX25 24V; 28,8W 24V; 31,2W |
