Electronic Pallet Truck Scales
Electronic Pallet Truck Scales is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

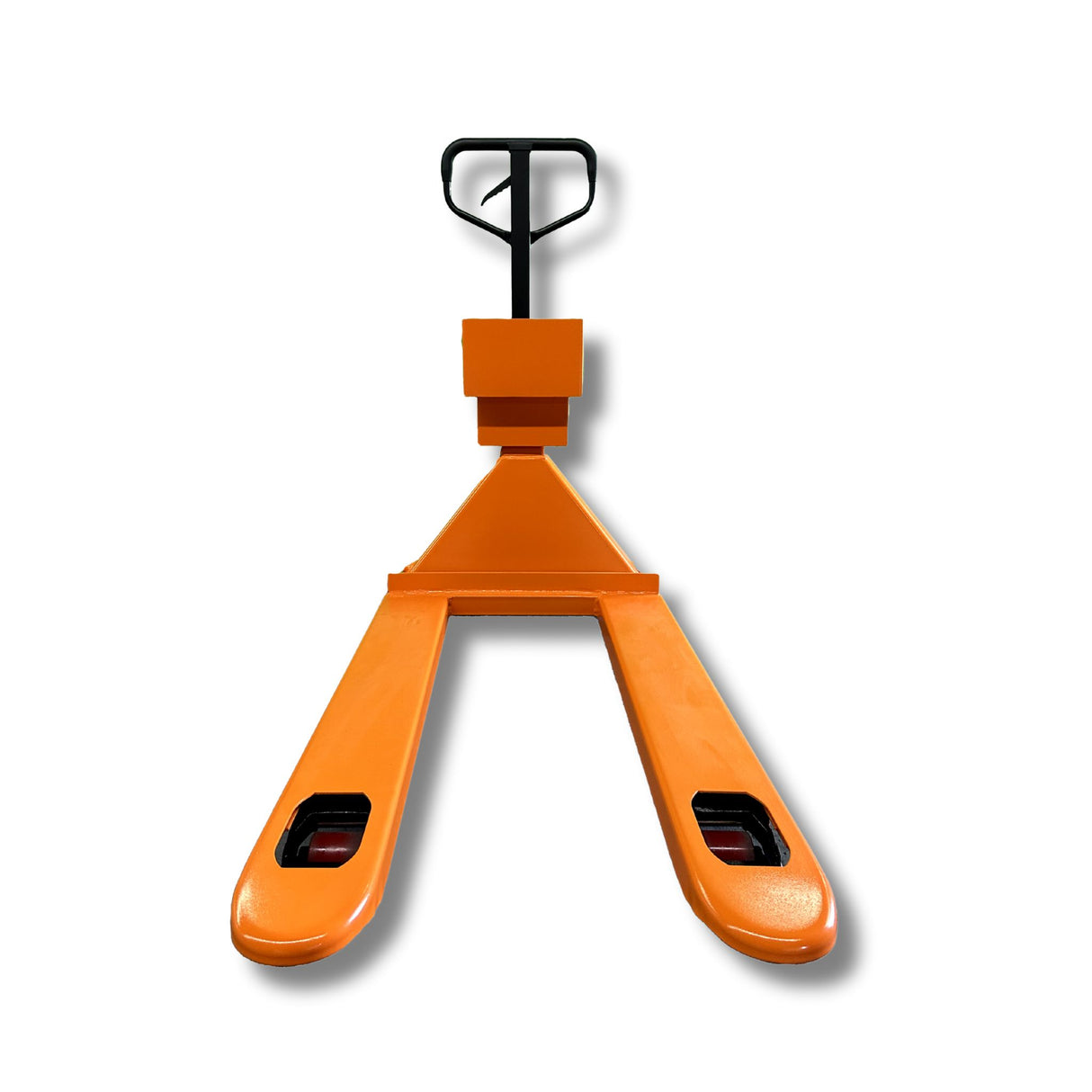

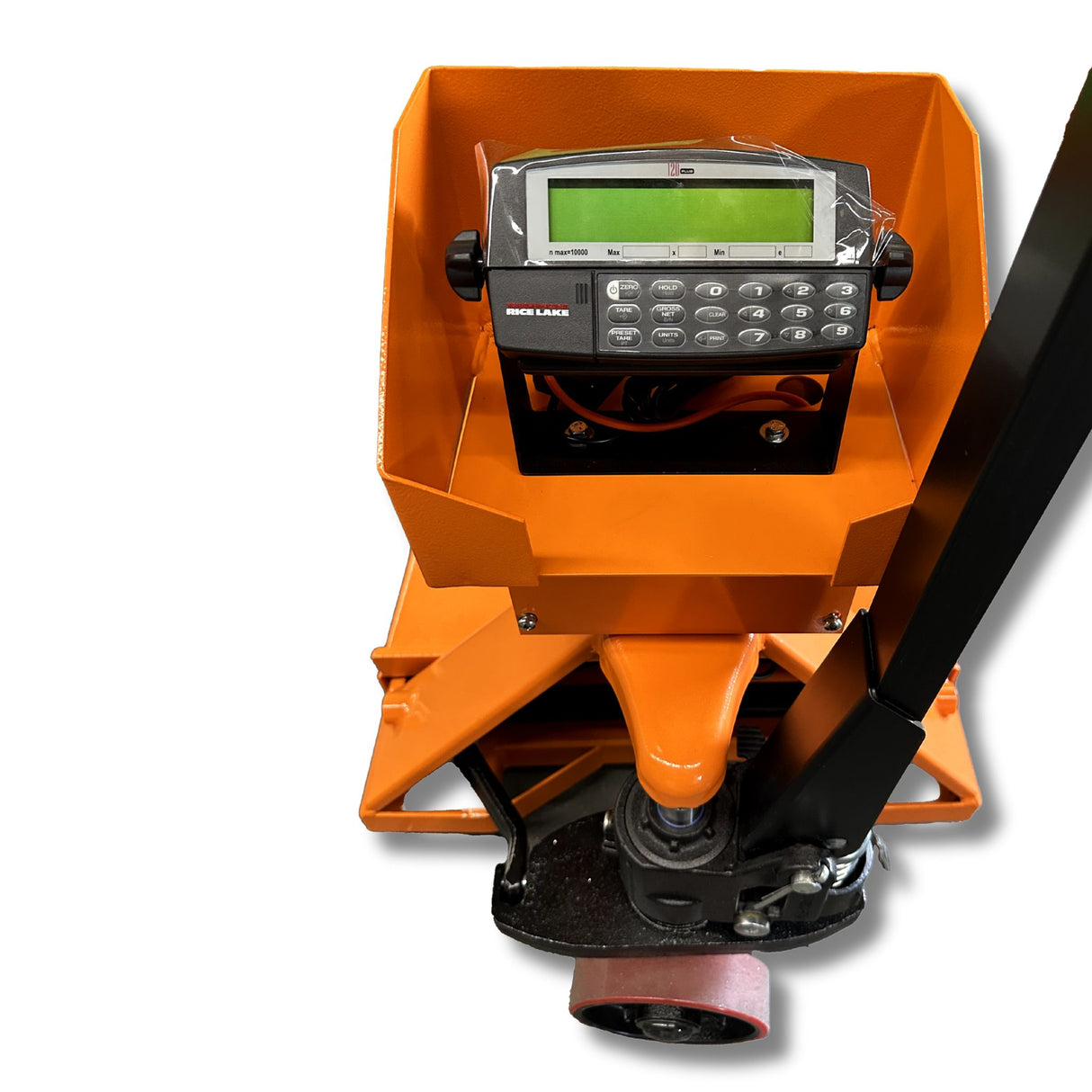

Electronic Pallet Truck Scales
Regardless of the application, Interweigh has the right electronic pallet truck scale to do the job. Designed with our customer's input, our full line of rugged pallet truck scales delivers the versatility and quality you've come to expect. With a capacity of 4500 lbs, a high degree of accuracy, and 1 lb resolution, our electronic pallet truck scale is hard to beat. With its unique 2.95" lowered fork height, entry to the pallets has never been easier. Interweigh offers a wide range of electric pallet truck scales to meet all your production needs. Industry-leading levels of value and reliability can be found in all of our electronic pallet truck scales. Attention to operator efficiency and ease of use puts overall equipment value to work for you.
Notable Features
- 2.95" lowered height of forks
- Floating Platform
- 4500 lb. Capacity
- 1 lb. Resolution
- High Accuracy
Scale Features
- Floating Platform (ball and cup suspension)
- Backlighting when weight is applied to forks
- LB/KG toggle switch
- Center of zero indicator
- Automatic zero tracking
- Push-button zero
- Push-button tare with net/gross indication
- RS 232 serial port (Bi-directional)
- Low battery indicator
Truck Features
- Unique 2.95" lowered fork height
- Sealed ball bearings throughout
- Bearings at all pivot points can be lubricated easily
- A high-quality leak-proof pump assures maintenance-free service
- 3 position hand lowering control with safety design loop handle and fingertip release
- 215 pivot action maneuvers in a compact area
- Hard chrome plated ram and piston
- Urethane seals and wipers
- Ball thrust steering
- Safety/colour powder coated paint after anti-rust treatment
- Foot release
Applications
- Verify incoming/outgoing weight
- Truck loading by weight
- All-purpose mobile scale
- Batching and drum filling
- Inventory Control.
| Weighing capacity | 4500 lbs (2045 kg) |
| Resolution | 1lb (.5kg) |
| Max Error | .1% (4lbs in 4500) |
| 6 digit display | 1 inch tall LCD |
| Power | Six - 1.5 volt D cell batteries |
| Load Capacity | 4500 lbs |

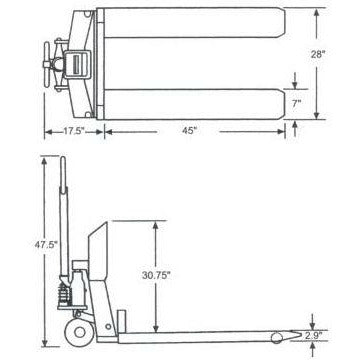

| Lowered height of forks | 2.95" |
| Raised Height | 7.6" |
| Overall Width of Forks | 28" |
| Fork Width | 7" |
| Space Between Forks | 14" |
| Fork Length | 45" |
| Load Rollers (Polyurethane) | 2.7" D x 3" W |
| Front Rollers (Polyurethane) | 6 1/4" D x 1 7/8" W |
| Body Length (including pump) | 62 ½" |
| Approximate Weight | 465 lbs |
