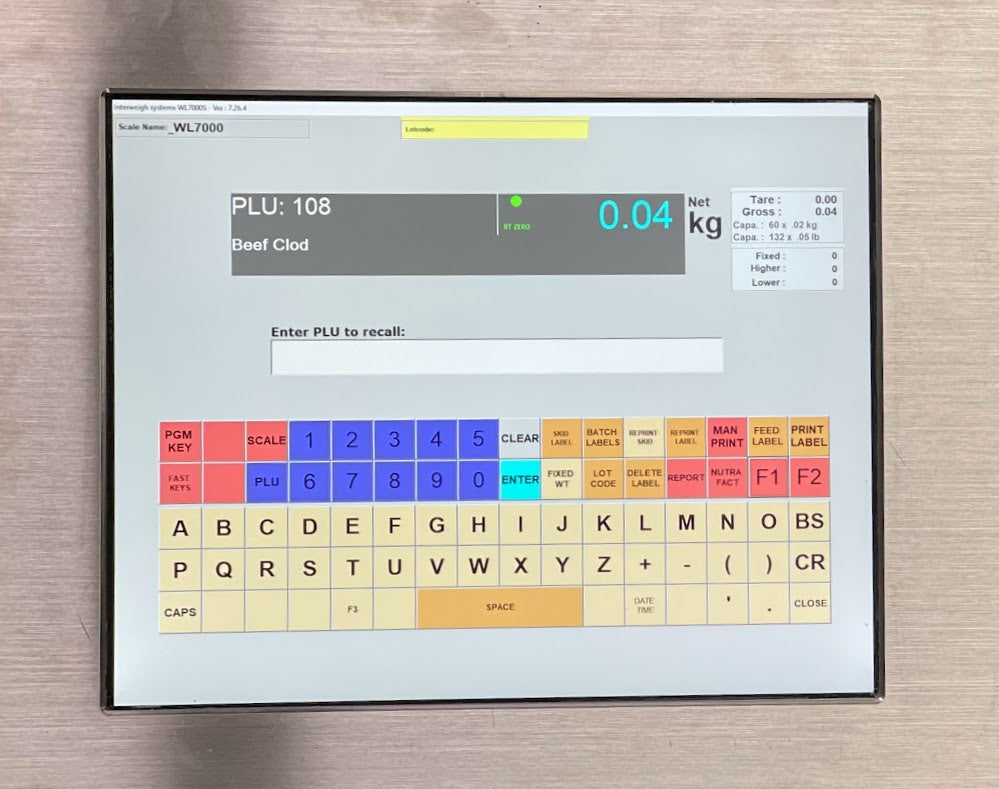

Interweigh WL7000 Touch Screen Computer

Interweigh WL7000 Touch Screen Computer

  • Contact Now for Immediate Pricing
  • 1(800)-268-3269
  • inquiry@interweigh.ca

Touch Screen Industrial Computers

Interweigh's new Touch Screen Industrial Computers can fill a variety of diverse roles. Our stainless steel model features a Perma Shell enclosure that will last and look good for many years and is suitable for food processing deployments. Fully capable of withstanding a wash-down workplace, all interface connectors are a minimum IP 67 rated while the enclosure is compliant with an IP 55 rating. We offer a variety of waterproof USB, RS232 Ethernet and power cords as a convenience to our customers.

Notable Features

  • One Way PosiPressure Venting System.
  • Open Source Mounting.
  • 17" LCD Touch Screen.
  • A non-linear workplace improves efficiency.
  • Powerful, dependable, industrial quality construction.

How your business benefits:

  • Standard connection interfaces (USB, DB9, RJ45).
  • Limitless software options.
  • Tailored solutions to your exact requirements.
  • Suitable for all industries.




Scalable Solution Prevents Obsolescence

Designed to accept standard commercial-grade computer components, the WL7000 touch screen computer will provide years of service and can be easily upgraded as technology and software advance. This ensures that your investment will show returns for many years to come.

Proven Industrial Solutions

Shop Floor Durability

One Way PosiPressure Venting System

Unique to the WL7000 is our exclusive One Way PosiPressure venting system wherein the cooling fan blows into the case instead of out. This creates a positive pressure within the housing that keeps dust from entering any seams or openings. Exhaust from the unit exits via a baffle chamber that allows air out but keeps water from entering.

Open Source Mounting

To ensure the longest possible service life and the best return on your investment the WL7000 touch screen industrial computer features Open Source Mounting. The WL7000 is designed to accept motherboards, power supplies and monitors from any manufacturer. No longer will you be dependent upon a single supplier for parts or services and upgrades to the unit are quick and easy, which allow you to take advantage of new technologies as they appear, indefinitely. Easy to service, the entire front of the unit swings down to allow complete access to all electronic components, whether for service or upgrades.

17" LCD Touch Screen

Standard with the WL7000 is a 17" LCD touch screen. Using proven infrared technology the touch screen is rugged and durable while at the same time the most sensitive to touch input. Using an LCD mounting system developed by ourselves and the onboard heater, the WL7000 can be used in refrigerated environments or outdoors, even in winter.

WL7000 Specifications
Processor Via C7 1.5GHz NanoBGA2
VIA CN700 North Bridge
VIA VT8237R-Series South Bridge
System Memory 1 DDR2 400/533 DIMM slot Up to 1GB memory size
VGA - Integrated VIA UniChrome
Pro AGP graphics with MPEG-2 acceleration
Expansion Slots 1 PCI
Onboard IDE - 2 WL7000DMA 133/100/66 Connectors
Onboard LAN - VIA VT6122 Gigabit Ethernet Controller
Onboard Audio - VIA VT1618 8-channel AC'97 Codec
Onboard TV-Out - VIA VT1625M HDTV Encoder
Onboard 1394 - VIA VT6307S IEEE 1394 Firewire
External Waterproof Connectors - 1 RJ-45 LAN port - 1 Serial port4 USB 2.0 ports - 3 Pin AC Connector
Onboard I/O Connectors
1 USB pin header for 2 additional USB 2.0 ports
1 1394 pin header for a 1394 port
1 SIR pin header (IRDA 1.0)
1 S-ATA Connectors
1 LPC pin header
1 Front-panel audio pin header (MIC-in and Line-out)
1 Serial port pin header for a second com port
1 CIR pin header (Switchable for KB/MS)
2 Fan connectors: CPU/Sys FAN
2 S/PDIF connectors: (S/PDIF-in and S/PDIF-out)
1 Component (YPbPr) video pin header
1 SM Bus pin header
1 LVDS/TTL/DVI module connector (an add-on card is required)
1 Front-Panel pin header
1 ATX Power Connector Back Panel I/O
1 PS2 Mouse port - 1 PS2 Keyboard port
1 VGA port - 1 RCA port (S/PDIF or TV-out)
1 S-Video port
3 Audio jacks: line-out, line-in and mic-in (Horizontal, Smart 5.1 Support)
BIOS Award BIOS, LPC 4/8Mbit flash memory
System Monitoring & Management - CPU temperature reading, CPU voltage monitoring - Wake-on-LAN, Keyboard-Power-on, Timer-Power-on, Watch Dog Timer, FAN control - System power management, AC power failure recovery
Operating Temperature - 15 ~50° C
Operating Humidity 0% ~95% (relative humidity; non-condensing)
*This specification is subject to change without prior notice.
