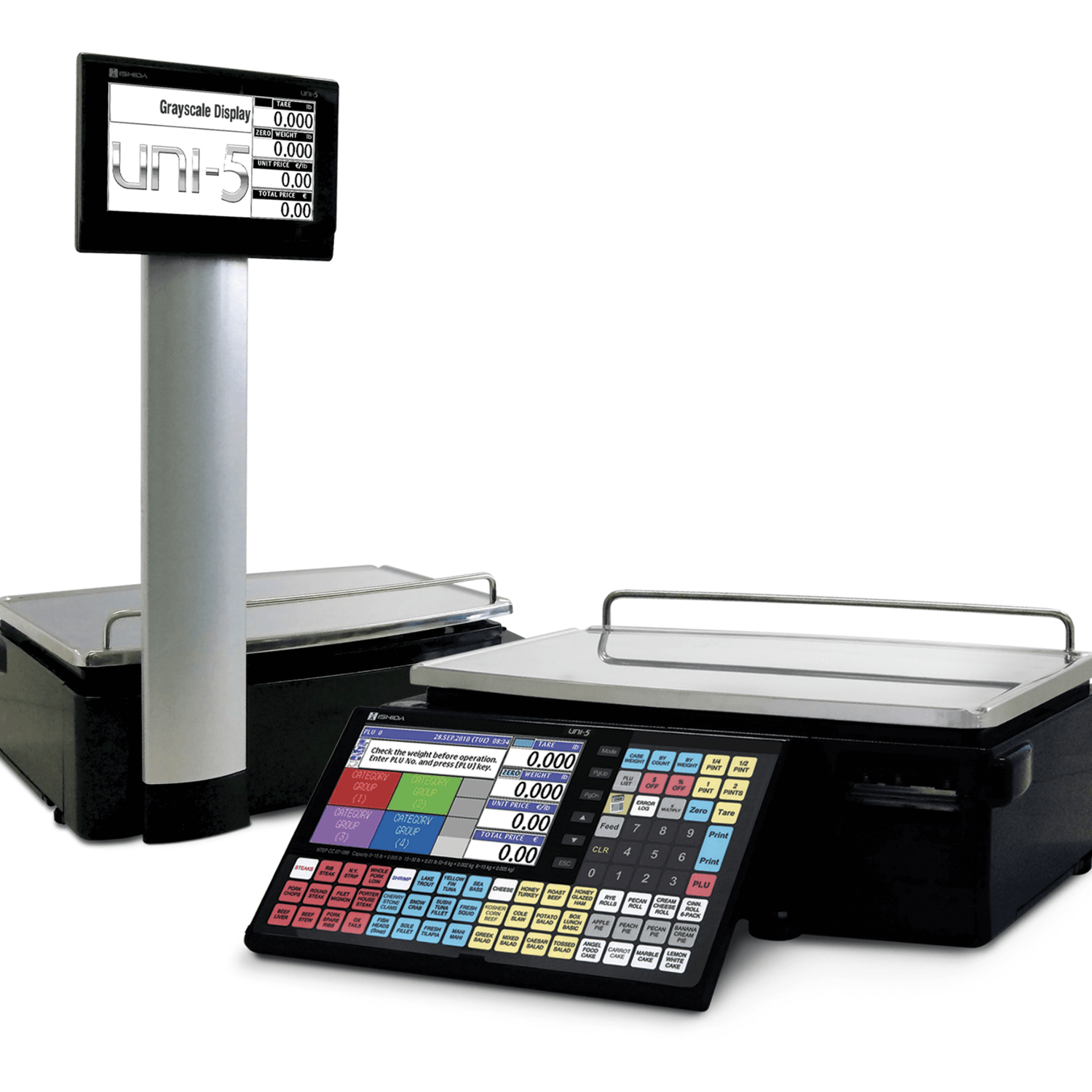

Ishida Uni-5 Retail Scales
The Uni-5 Series packs a lot of power into its attractive low profile, small footprint case. The 7-inch colour touch panel is easy to work with and displays windows for tare, weight, unit price and total price. The keyboard contains standard function keys and can be customized to include PLU, tare, and category presets plus a large number of specialized functions. Icons identify connectivity status, printing mode, and USB port. The programmable colour touchscreen can be configured with three key sizes and up to twenty presets per page. Operators can view virtual receipts, open tickets, and totals before printing. The bright grayscale customer display can scroll and flash advertising messages and images. The fast and easy side-loading direct thermal printer has a variable speed and backing re-winder to quickly switch between labels and receipts. The Ishida Uni-5 Series includes Ethernet (100Mps) for connection to PC and other scales.
Download the Uni-5 Retail Scale brochure here.
- Large colour touchscreen.
- Dual-range weighing.
- Side-load labels.
- Internal wireless communications.
- Ethernet communications.
- Up to 99 pages of speed keys.
- Adjustable touchscreen viewing angle.
- 77 tactile keys.
- 4 MB of memory.
- Grayscale LCD customer-side display.
- 30+ selectable fixed bar code formats.
- Compatible with third-party communication software, including Invatron's PLUM, ADC's InterScale and Droste's PCScale Manager.
|Weighing Capacity||0-15 lb x 0.005 lb/15-30 lb x 0.01 lb|
|Weighing Resolution||3,000 display divisions maximum|
|Display Types||Operator: Color LCD, 7 in
Customer: Grayscale LCD, 7 in
|Display Items||Tare: Four-digits
Unit price: Six-digits
Total price: Six-digits
|Preset Keys||1980: 20 x 99 pages|
|Platter||15.7 in x 10.8 in (398 x 275 mm)|
|Memory Capacity||4 MB|
|Communication||Static TCP/IP 10/100 Base T Ethernet
|Printing Speed||3.2 /3.9 /4.7 /5.9 in/sec (80 /100 /120 /150 mm/sec)|
|Label Size||Width: 1.5-2.5 in (38-64 mm)
Length: 1.5-7.9 in (38-200 mm)
|Label Roll Size||Inside diameter: 1.6 in (40 mm)
Outside diameter: 3.9 in (100 mm)
|Power Supply||AC100-240V, 50/60 Hz|
|Power Consumption||Stand-by: 50W. In operation: 120W|
|Printing Method||Direct thermal 2.2 in the head (56 mm)|
