PM 25.4Y.KB Mass Comparator
PM 25.4Y.KB Mass Comparator is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description
Overview
Maximum capacity [Max]: 25,5kg
Readability [d]: 10mg
For adjusting mass standards and weights according to the OIML recommendations (R-111) from 1 kg to 50kg for F2 class and lower.
The comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

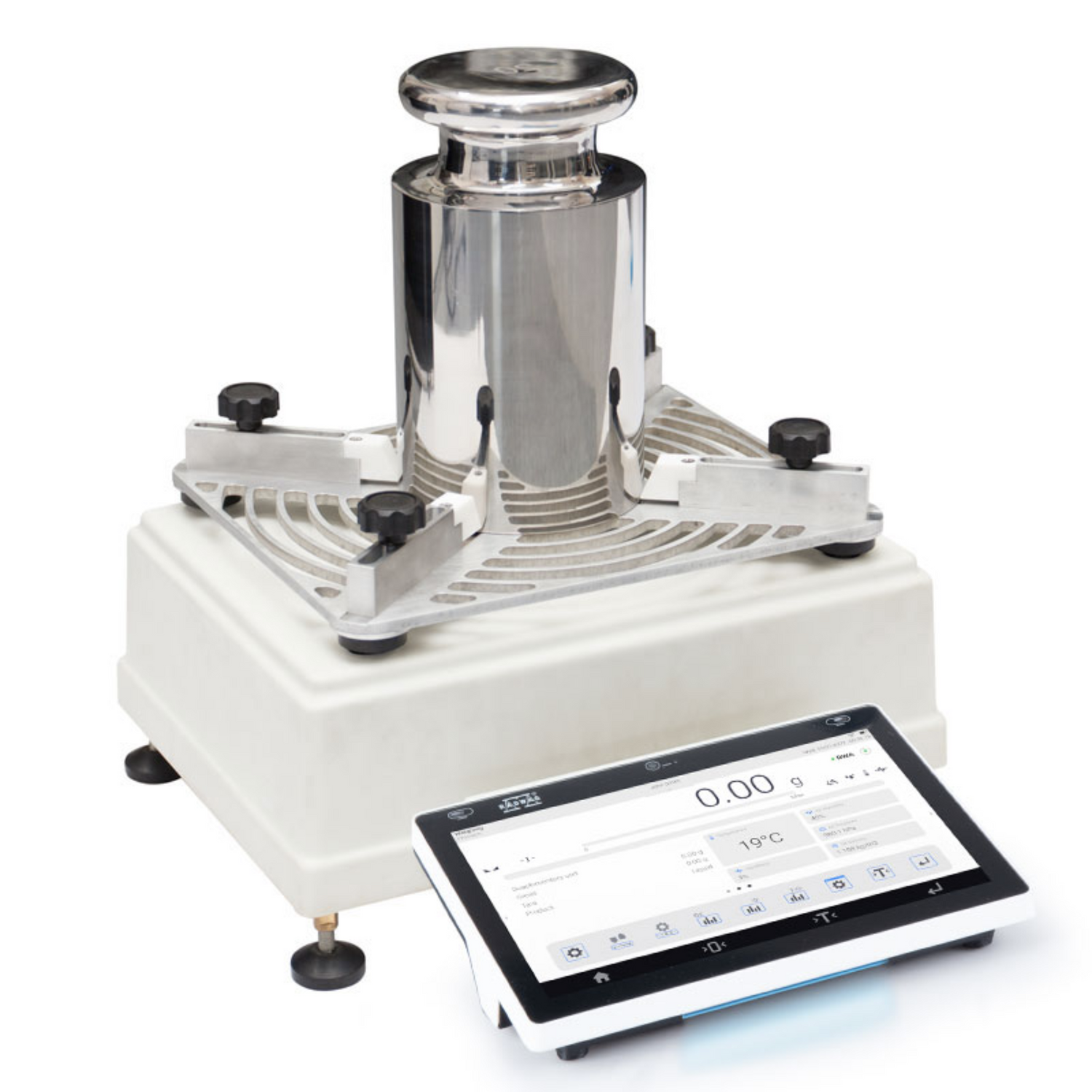

Mass comparator PM 4Y.KB series comprises two components. One of them holds the electronic module and the other a precise mechanical measuring system.
The high measuring accuracy is guaranteed by a semi-automatic adjustment system with external mass standards. The weighing pan is made of aluminum and features holders for centring the tested mass standard. The PM 4Y.KB series features an intuitive menu supporting a user while operating the instrument.
FEATURES
| E1 | - |
| E2 | - |
| F1 | - |
| F2 | 5 kg ÷ 20 kg |
| M1 | 2 kg ÷ 20 kg |
| Maximum capacity [Max] | 25,5 kg |
| Readability [d] | 10 mg |
| Repeatability at low load | 8 mg (1 kg) |
| Repeatability at nominal load | 15 mg (20 kg) |
| Eccentricity (tested load) | 1 d / 2 |
| Electric compensation range | 0 ÷ 25 kg |
| Stabilization time | 5 s |
| Adjustment | external |
| Power supply | 110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC |
| M2 | 1 kg ÷ 20 kg |
| Operating temperature | +10° ÷ +40°C |
| Working temperature change rate | ±2°C/12h |
| Atmospheric humidity | 30% ÷ 70% |
| Atmospheric humidity change rate | ±10%/4h |
| Weighing pan dimensions | 302×252 mm |
| Weighing device dimensions | 370×280×150 mm |
| Controlling device dimensions | 206×140×70 mm |
| Net weight | 10,5 kg |
| Gross weight | 12,7 kg |
| Packaging dimensions | 520×520×280 mm |
