Cubiscan 225
Cubiscan 225 is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

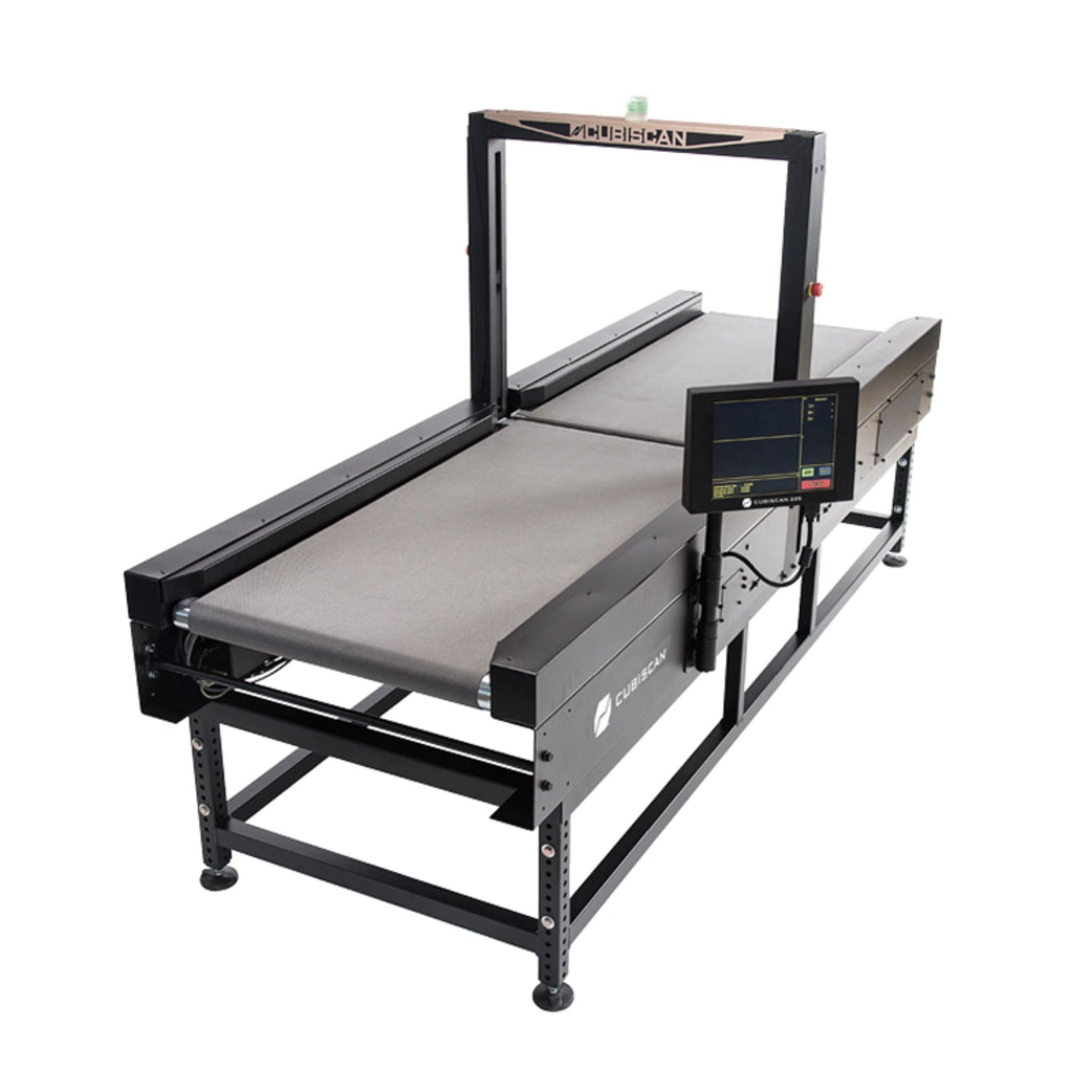

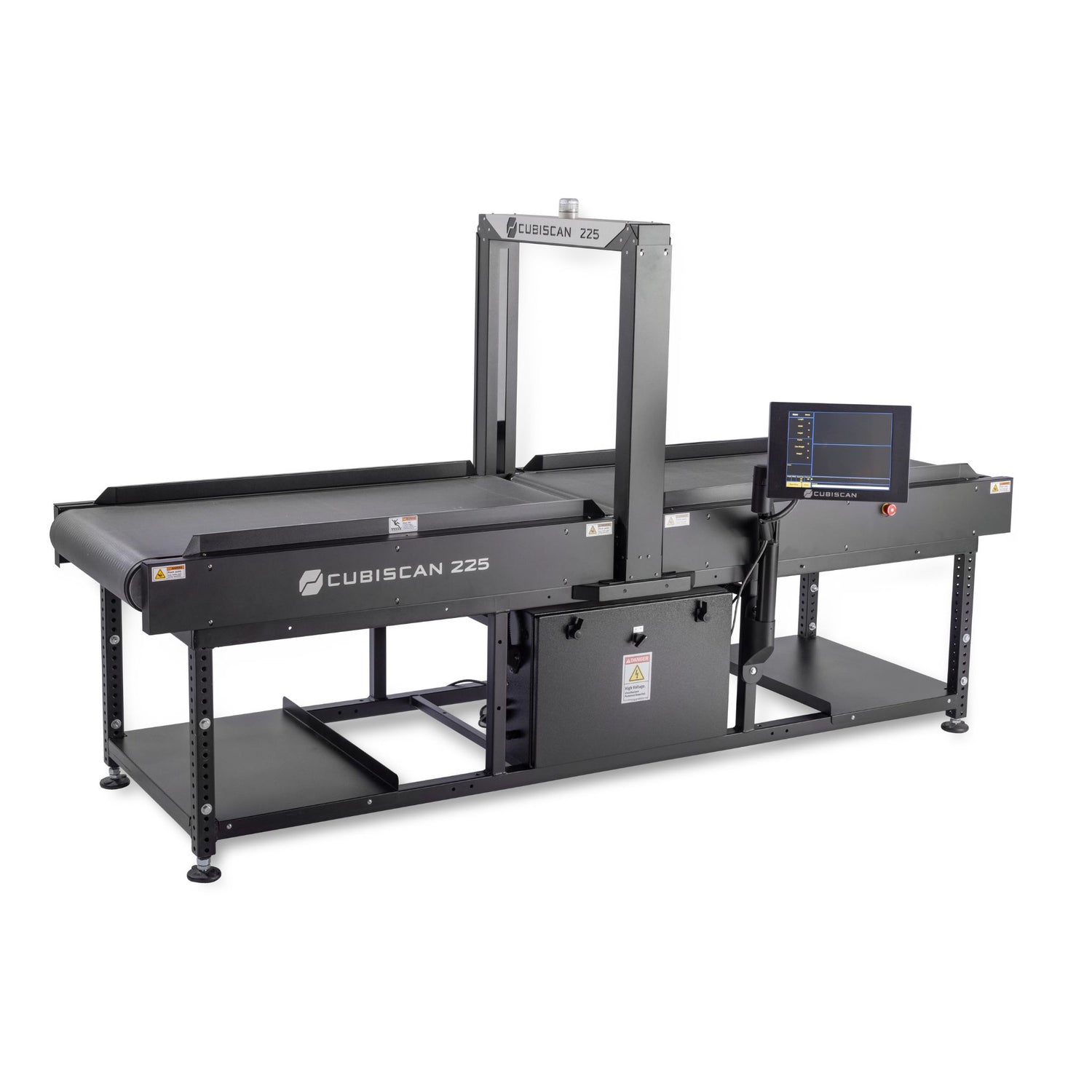

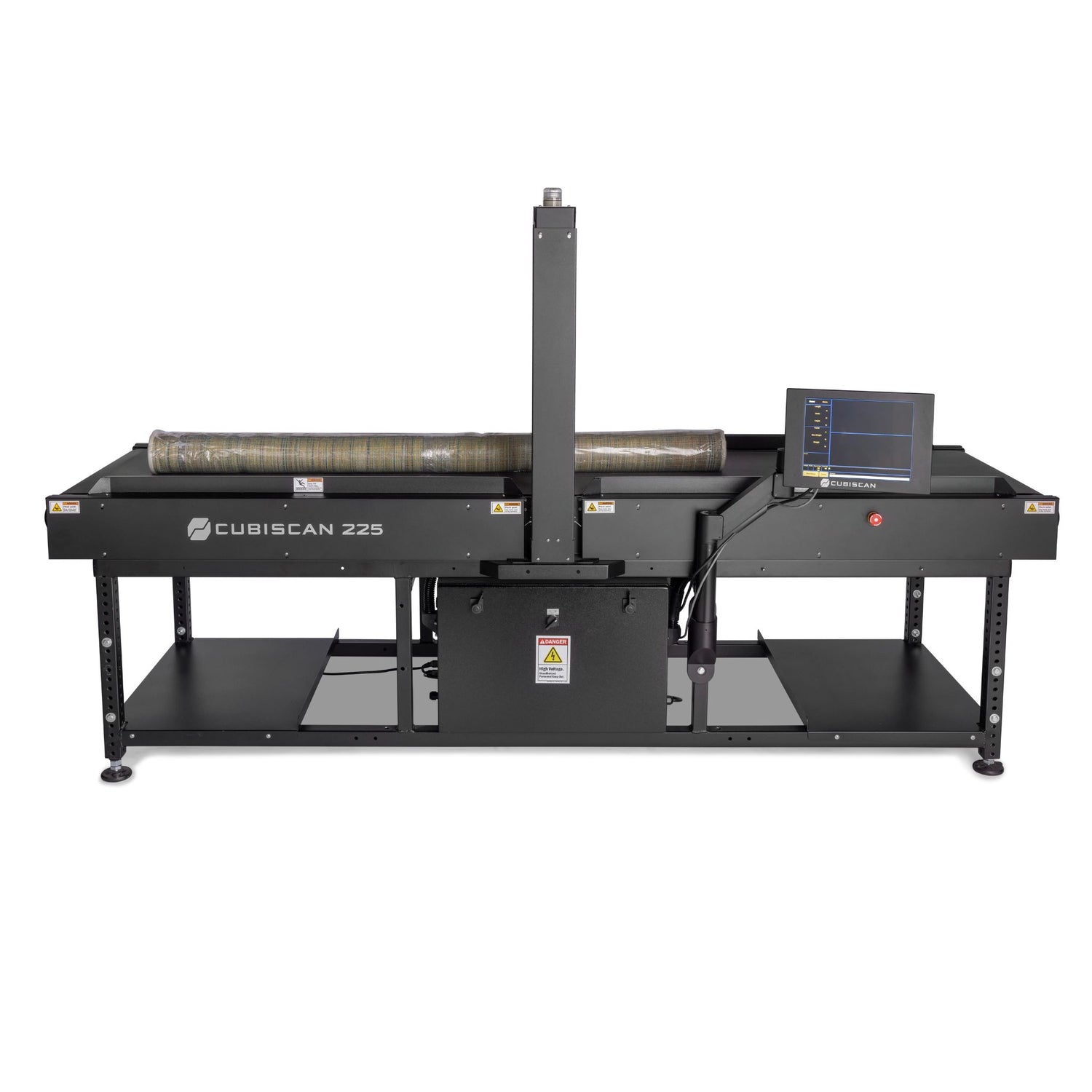

Cubiscan 225
Discover the Cubiscan 225: Your Ultimate Solution for Space Optimization, On-Demand Box Making, Repacking, Check Weighing, and Shipment Manifesting across Medical, Pharmaceutical, Apparel, Hardware, and Consumer Goods Distribution. Integrated with cutting-edge infrared sensing technology and a conveyor system, it offers optimized measuring capabilities. Cubiscan's latest innovation ensures unparalleled precision, cost-saving packaging and shipping, efficient storage utilization, and enhanced customization options.
Applications
The CubiScan 225 is typically used for on-demand box-making for those oddly shaped items individually and in bundles. Ideal for storage space planning and shipment manifesting in medical, pharmaceutical, apparel, hardware, and consumer goods distribution.
Main Features
The Cubiscan 225 has a measurement capacity of up to 24 x 24 x 60 inches with a resolution of 0.05 inches and a minimum required interval between each object of only six inches. There are also extended versions available that can measure up to a 96-inch length capacity. This in-line dimensioning system for irregular shapes also includes an integrated conveyor with a variable speed of 10 to 60 feet per minute. Cubiscan's proprietary Q-bit software delivers menu-driven operator controls, data storage/transfer and diagnostics, all with a handy touchscreen interface.
Watch The Cubiscan 225 Video
| PHYSICAL SPECIFICATIONS | |
| Length | 102 in (259 cm) |
| Width | 35 in (90 cm) |
| Height | 61-69 in (155-175cm) (adjustable legs) |
| Weight | 665 lb (301 kg) |
| MEASURING CAPACITIES | |
| Length | 6.00 to 60.00 in (15.0 to 150.0 cm) accuracy +/- 0.25 in (0.6cm) 6.00 to 96.00 in (15.0 to 240.0 cm) accuracy +/- 0.50 in (1.0 cm) |
| Width | 0.50 to 24.00 in (1.0 to 60.0 cm) accuracy +/- 0.10 in (0.3 cm) |
| Height | 0.20 to 24.00 in (0.5 to 60.0 cm) accuracy +/- 0.10 in (0.3 cm) |
| Weight Limit | 50 lb (23 kg) |
| Measurement Increment | 0.05 in (1 mm) |
| Belt Speed | 10 to 50 ft (3 to 15 m) per minute |
| Minimum Space Between Objects | 6.00 in (15.0 cm) |
| Object Characteristics | Opaque |
| OTHER | |
| Data Connections | serial (1), ethernet (1), USB (1) |
| Humidity | 0 to 90% non-condensing |
| Measuring Sensor | infrared light beam |
| Operating Temperature | 14º to 104º f (-10º to 40º c) |
| Power Requirements | 110-240 vac single phase, 50-60 hz |
