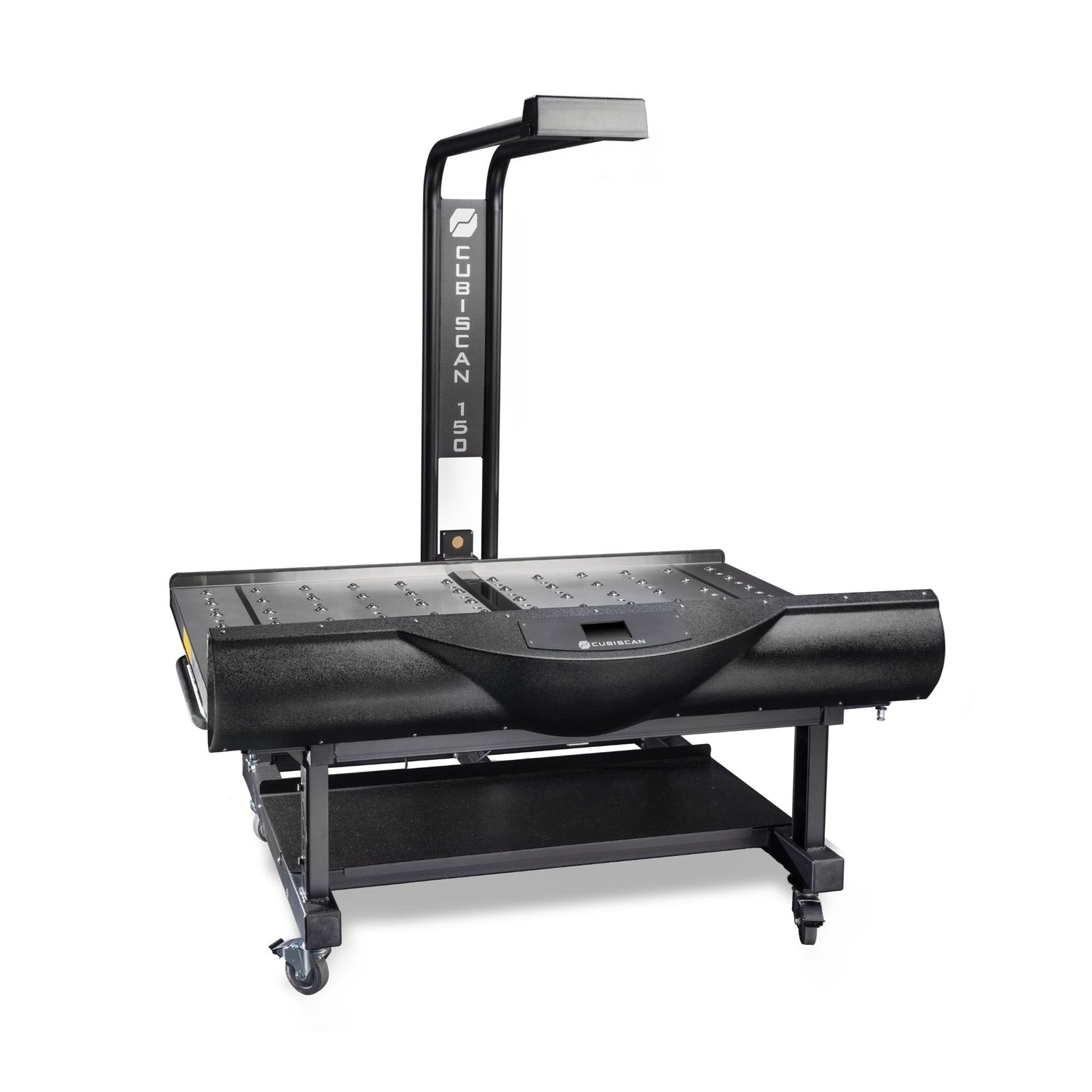

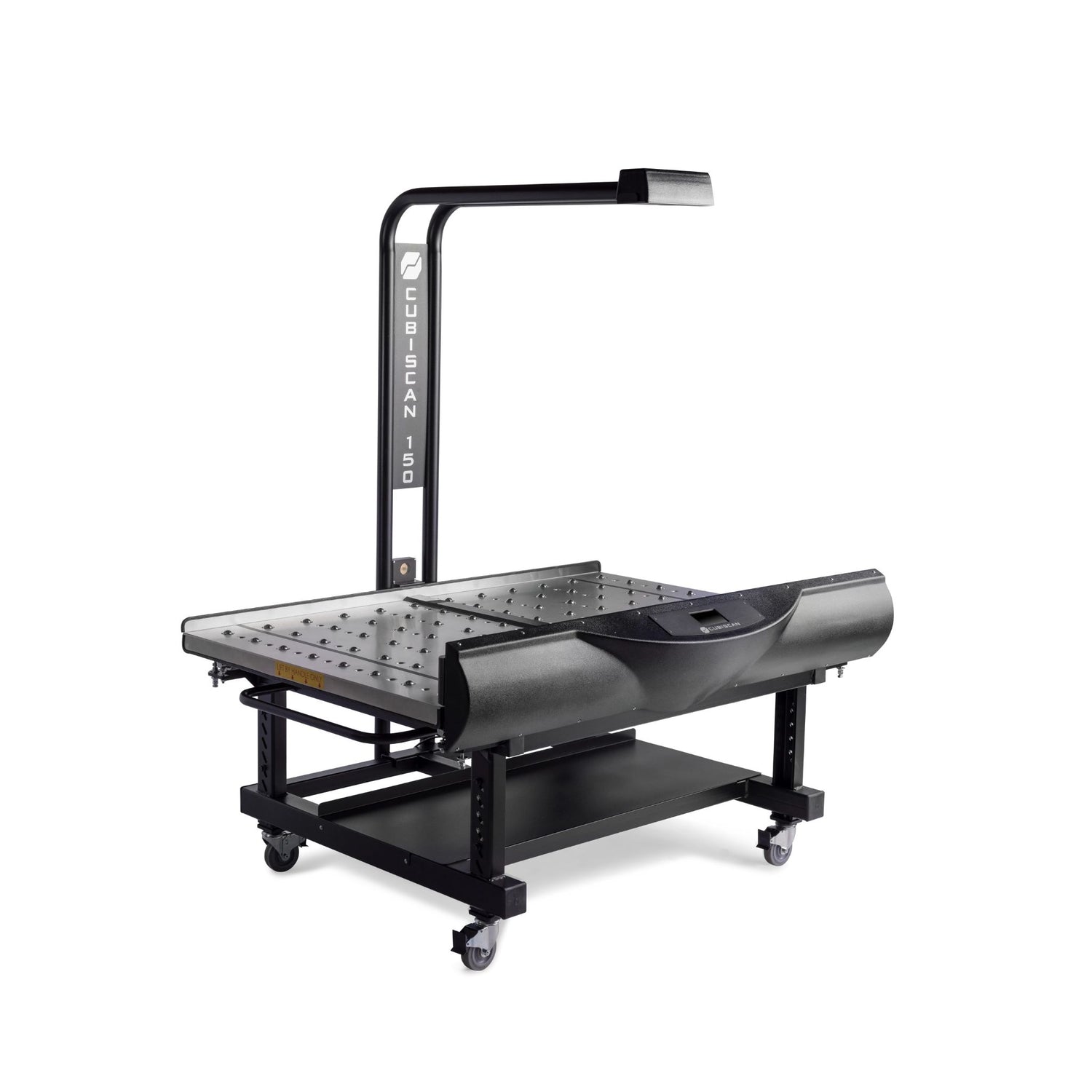

Cubiscan 150

The Cubiscan 150 is a dynamic static dimensioning system with a maximum measurement range of 39 x 40 x 48 inches (100 x 100 x 120 cm) and a net weight capacity of 150 lbs (70 Kg). It also offers a high level of precision with a measurement resolution of 0.1 inches (0.2 cm) and a weight resolution of 0.05 lbs (20 g).

Notable Features

Mounted on locking casters, so it can be operated in a fixed position or quickly moved and redeployed when necessary, the CubiScan 150 offers portable dimensioning wherever needed. Each unit has a USB port, two active serial communication ports, one serial printer port, and an Ethernet port allowing for network connection and data transfer. With an optional PC-based interface (called Qbit), the CubiScan 150 is capable of buffering thousands of data records, can interface to barcode scanning equipment, and label printing devices, and can communicate directly (in batch or real-time mode) with your manifesting or warehouse management system.

Discover how the Cubiscan 150 can help you eliminate those costly mistakes and improve your bottom line.

Download the CubiScan 150 brochure.

Specifications

 PHYSICAL SPECIFICATIONS
Length  65 in (165 cm)
Width  52 in (132 cm)
Height  76 in (193 cm)
Table Height (Operating Height) Adjustable between 28-34 in (71-86 cm)
Weight  430 lb (195 kg)
MEASURING CAPACITIES
Length  3.0 to 48.0 in (8.0 to 120.0 cm)
Width 2.4 to 39.0 in (6.0 to 100.0 cm)
Height  2.4 to 40.0 in (6.0 to 100.0 cm)
Measurement Increment  0.2 in (5 mm)
Measurement Time  1 to 2 seconds
Weight Capacity  0.05 to 150.00 lb (0.02 to 70.00 kg)
Weight Increment  0.05 lb (0.02 kg)
OTHER
Data Connections  ASCII
Humidity  0 to 90% non-condensing
Measuring Sensor  Ultrasonic
Operating Temperature  14º to 104º f (-10º to 40º c)
Power Requirements  100-240 VAC, 47-63 Hz, single phase
Weight Sensor  Resistive load cell
Conveyor Method  Roller ball table
Conveyor Direction  Omni-directional
