Description
Description

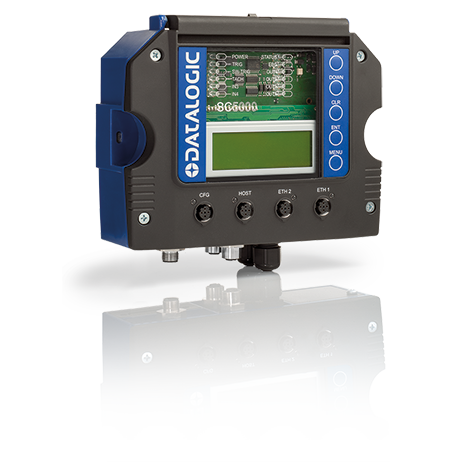

Datalogic SC5000 Industrial Controller
Standard Features
• Industrial controller for multi-side reading stations
• e-GENIUS™ web-based user interface
• Display and 5-key keypad for diagnostics and statistics
• Rugged industrial housing
• Ultralight and compact design
• Built-in Ethernet, Ethernet/IP and native Profibus and Profinet models
• Enables management of systems redundancy and fast scanner replacement in cases of failure
• Ethernet Bus Connections (EBC) for high-speed data transmission and real-time synchronization
Specifications
|
Supply Voltage Power Consumption |
10 to 30 Vdc (typ.24 Vdc 0.5 A Max. |
| Communication Interfaces | |
| Serial Main (isolated) | |
| -RS232 | 1200 to 115200 bits/s |
| -RS422 Full-duplex | 1200 to 115200 bits/s |
| Serial Aux | |
| -RS232 | 1200 to 115200 bits/s |
| Ethernet (x2) TCP/IP | 100 Mbit/s |
| EBC Internal Network | 100 Mbit/s |
| Fieldbus | |
| -Profibus (only SC5000-1100 model) | PROFIBUS DP application protocol; up to 12Mb/s |
| -Profinet (only SC5000- 1200 model) | PROFINET- 10 application protocol; 100Mb/s |
| -All Models | Embedded EtherNet/ IP; 100 Mb/s |
| Inputs | 3 polarity insensitive optocoupled inputs: |
| Trigger, Encoder/ Tachometer, IN3, | |
| Outputs | 3 optocoupled outputs |
| Input/Output | 1 configurable input/output (PNP or NPN polarity insensitive optocoupled input, or optocoupled output) |
User Interface
| LCD Display | 4 lines by 20 characters LCD |
| Keypad | 5 Keys |
| LED Indicators |
POWER STATUS TRIG EBC SW-TRIG OUT1 ENC OUT2 IN3 OUT3 IN4 OUT4 |
Software Features
| Configuration Modes | e-Genius |
| Parameter Storage | Non-volatile extractable SD-card |
Environmental Features
| Operating Temperature |
0° to +50 °C (+32° to +122 °F) |
| Storage Temperature |
-20° to +70 °C (-4° to +158 °F) |
| Humidity |
90% non-condensing |
| Vibration Resistance EN 60068-2-6 |
14 mm @ 2 to 10 Hz; 1.5 mm @ 13 to 55 Hz; 2 g @ 70-500 Hz; 2 hours on each axis |
| Shock Resistance EN 60068-2-27 |
30 g; 11 ms; 3 shocks on each axis |
| Protection Class EN 60529 |
IP65 |
Physical Features
| Mechanical Dimensions |
192 x 157 x 74 mm (7.57 x 6.18 x 2.91 in) |
| Weight |
1.5 kg (3.31 lb) |
