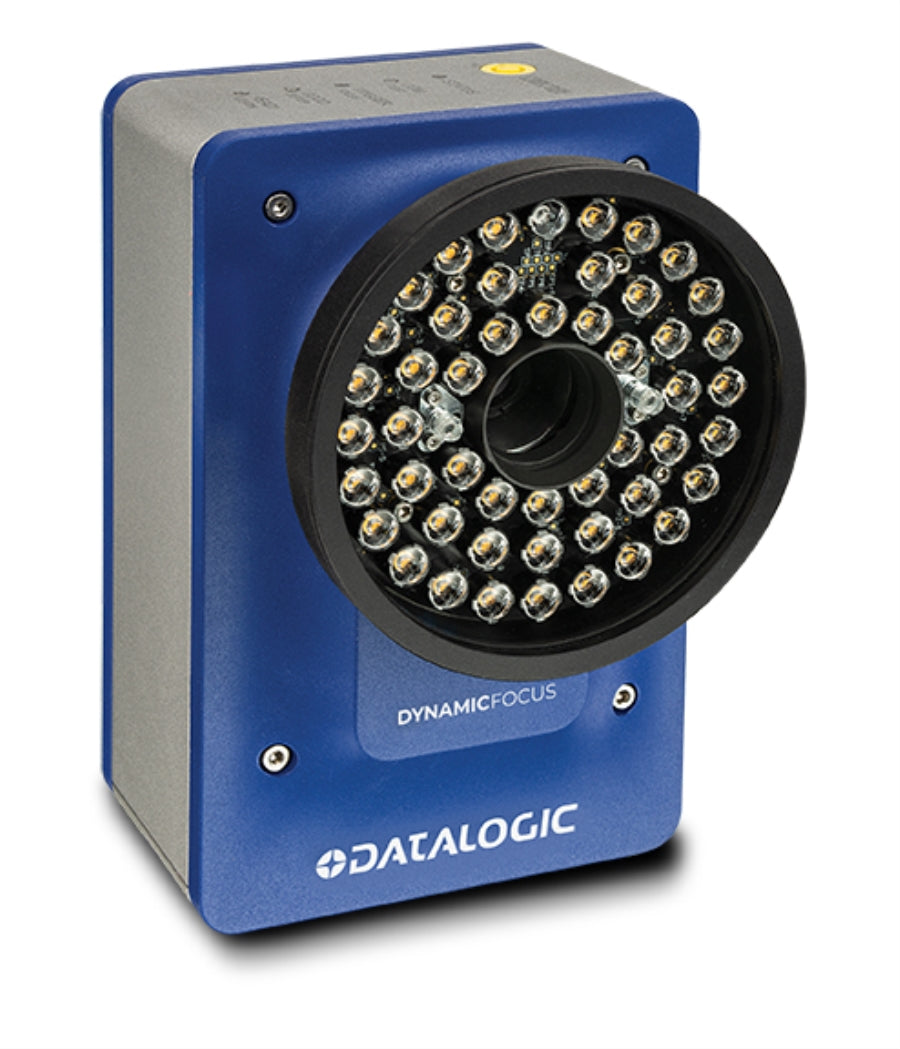

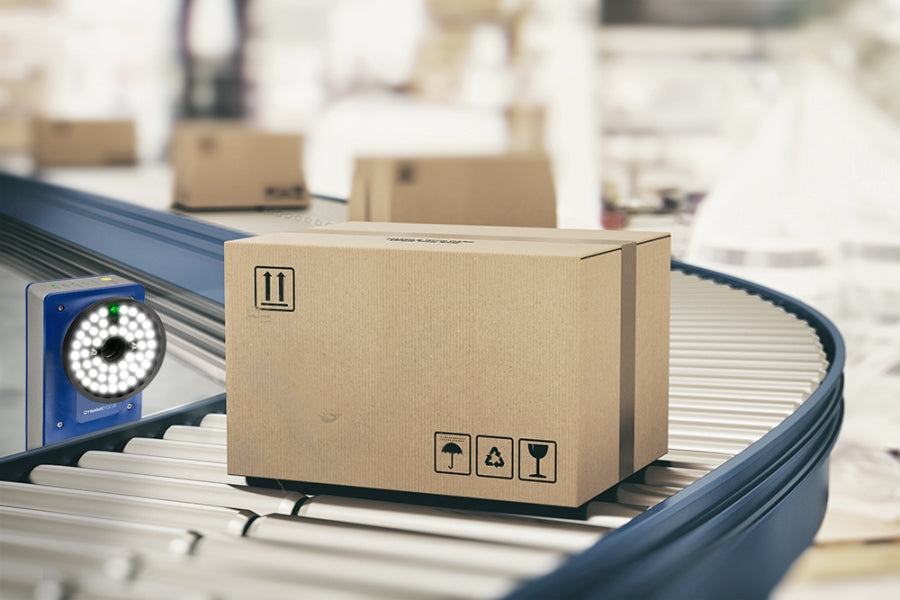

AV500

Standard Features

5 MP image sensor, 32 FPS

• Patented dynamic or adjustable focus system offering extended depth of field

• Continuous, no-flashing white or red illumination

• Region Of Interest Windowing for higher frame rate

• Next generation decode algorithm for outstanding decoding capability on 1D, 2D,

Stacked, or Postal symbologies

• Gigabyte Ethernet and SyncNet high-speed connectivity

• PackTrack capability for closer item spacing

• Multiple format image saving from full definition to a highly compressed .jpg

• Datalogic’s patented ‘Green Spot’ technology for visual good-read feedback

• Dual laser aiming for ease of installation

• Extreme Industrial grade: IP65 for harsh environments with 0 to 50 °C / 32 to 122 ºF

operating temperatures

Specifications

OPTICAL FEATURES

Sensor Type CMOS, 5 MPixels

Frame Rate Up to 32 frames/sec

Optical Lens 16 mm, 25 mm, 35 mm C-Mount lens

Focus Fixed, adjustable, dual zone and dynamic

Illumination Integrated Red or White

DECODING CAPABILITY

1D and Stacked Codes

Code 128 (GS1-128); Code 39 (Standard and Full ASCII);

Code 32 · MSI; Standard 2 of 5; Matrix 2 of 5; Interleaved

2 of 5; Codabar; Code 93 · Pharmacode; EAN-8/13 -

UPC-A/E (including Addon 2 and Addon 5); GS1 DataBar

Family; PDF417 (Standard and Micro PDF417)

2D Codes

Data Matrix ECC 200 (Standard,GS1 and Direct Marking);

QR Code (Standard and Direct Marking); MicroQR Code;

Maxicode

Postal Codes

Aztec Code Postal; Australia Post; Royal Mail 4 State

Customer; Kix Code; Japan Post; PLANET; POSTNET;

POSTNET (+BB); Intelligent Mail; Swedish Post

SYSTEM

Memory System RAM: 8 GB; eMMC Flash: 32 GB

Microprocessor Intel Pentium Quad-core

Operating System Linux

Real-Time Clock Time and date stamping under software control or can be

synchronized with time server

COMMUNICATIONS INTERFACE

Communication

Interfaces 2 Ethernet TCP/IP, 2 serial communication interfaces

Internal Communication

System SyncNet Technology

Connectivity Modes Master/Slave, Ethernet Point to Point

Programming Method e-GENIUS multi-language, browser based, on board

HTML web server interface

ELECTRICAL

Supply Voltage 24 VDC +/- 20%

Power Consumption 2A

PHYSICAL CHARACTERISTICS

Dimensions 20.0 x 12.6 x 13.0 cm / 7.8 x 4.9 x 5.1 in

Weight 2,900 g / 6.4 pounds

Chassis Material A380 Die Cast Aluminum

ENVIRONMENTAL

Humidity 95% non condensing

Protection Class IP65

Vibration Resistance

SINE vibration as per EN60068-2-6

10-50 Hz: 0.4mm / 50-500 Hz: 2g

2h on all axis

Shock Resistance EN60068-2-27, 15 g / 11 ms /3 times up and 3 times

down on the primary axis.

Fan Life L10 @ 40 degrees C: 50,000 hours

Temperature Operating: 0 to 50 ºC / 32 to 122 ºF

Storage/Transport: -20 to 70 ºC / -4 to 158 ºF

SAFETY & REGULATORY

Agency Approvals The product meets necessary safety and regulatory

approvals for its intended use.

Environmental Compliance Complies to EU RoHS

Regulatory

EN55032 Emissions for Class A digital device;

EN61000-6-2 Electromagnetic Compatibility;

FCC part 15 for Class A digital device;

cULus listed product for Canada and U.S.; CE

Laser Safety Class 2 laser product as per IEC60825-1:2014

Complies with 21 CFR 1040

LED Safety LED Safety (Risk Group 0) as per IEC62471
