DS8110
DS8110 is backordered and will ship as soon as it is back in stock.
Service & Calibration Support
Service & Calibration Support
Interweigh Systems provides calibration, service, and technical support for all equipment we sell.
Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.
Certified test weights are also available to support quality control programs and internal verification procedures.
Ordering & Configurations
Ordering & Configurations
Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.
To receive pricing or discuss availability, contact our team with details about your application and environment.
Description
Description

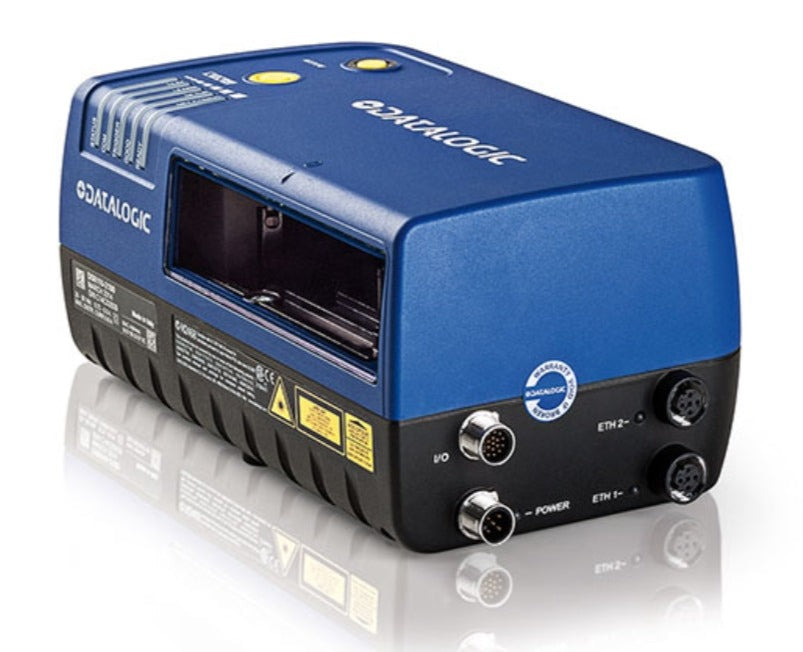

Datalogic DS8110
Barcode Scanner
DS8110 is the new bar code reader offering top-class reading performance at any operative conditions, designed to satisfy the most demanding applications in the Parcel Sorting and Baggage Handling applications.
HIGHLIGHTS
• Top Class Reading Performance thanks to Datalogic exclusive technologies
• Excellent performance on low-quality codes and unpredictable reading conditions
• DST (Digital Signal Technology) offering stable and constant performance at any operative conditions
• ASTRA G3 technology offering superior DoF and FoV without mechanical autofocus
• Ethernet Bus Connections (EBC) for high-speed data transmission and real-time synchronization
• Fully redundant configuration and no single point of failure
• Compact mechanical dimensions; lightweight
• Standard solutions for Parcel Sorting and Baggage Handling applications
• Ease of maintenance and automatic replacement.
Specifications
Reading Distance- (Min/Max) 500-1900 mm (20 -75 in)
Max Resolution- Min:0.25mm (10mils)/Max: 0.50mm (20mils)
Scan Rate- Typ.:1000 scans/s/ Max.:
Scan Pattern Type- Linear
Aperture Angle- 60 degrees
Multilabel Reading- Up to 10 different symbologies during the same reading phase
Optic Architecture/Technology- ASTRA™ G3
Bar Code Assignment Technology- PackTrack™ G2
Reconstruction Code Technology- ACR™ G5
Readable Codes- 22 symbologies including 2/5 family, Code39, Code93, Code128, EAN/UPC, EAN128, ISBN128
Case Material- Aluminum alloy
Dimensions- (Typical Value) 216 x 96 x 127 mm [8.5 x 3.8 x 5 in]
Weight- 2.0 kg (4.4 lb)
Temperature Range- 0° - 50°C
Power Supply/Consumption- 20 to 30 VDC; 20 W
Ip Rating- IP65
Ethernet- 2 x Ethernet TCP/IP
Serial Interfaces- Main Port: RS232/RS422 up to 115.2 Kbit/s Auxiliary Port: RS232 up to 115.2 Kbit/s
Internal Communication System- EBC Technology
Fieldbus- Embedded EtherNet/IP; PROFINET-IO and PROFIBUS-DP supported
Digital Inputs- 3 x Inputs (2 + 1 x “Encoder”), optocoupled, NPN/PNP
Digital Outputs- 2 x Outputs SW programmable, optocoupled, event-driven, NPN
