High-Speed Dimensioning & Inspection for Shipping & Receiving

Dimension and inspect in-motion SKUs and parcels in high-throughput receiving and shipping facilities.

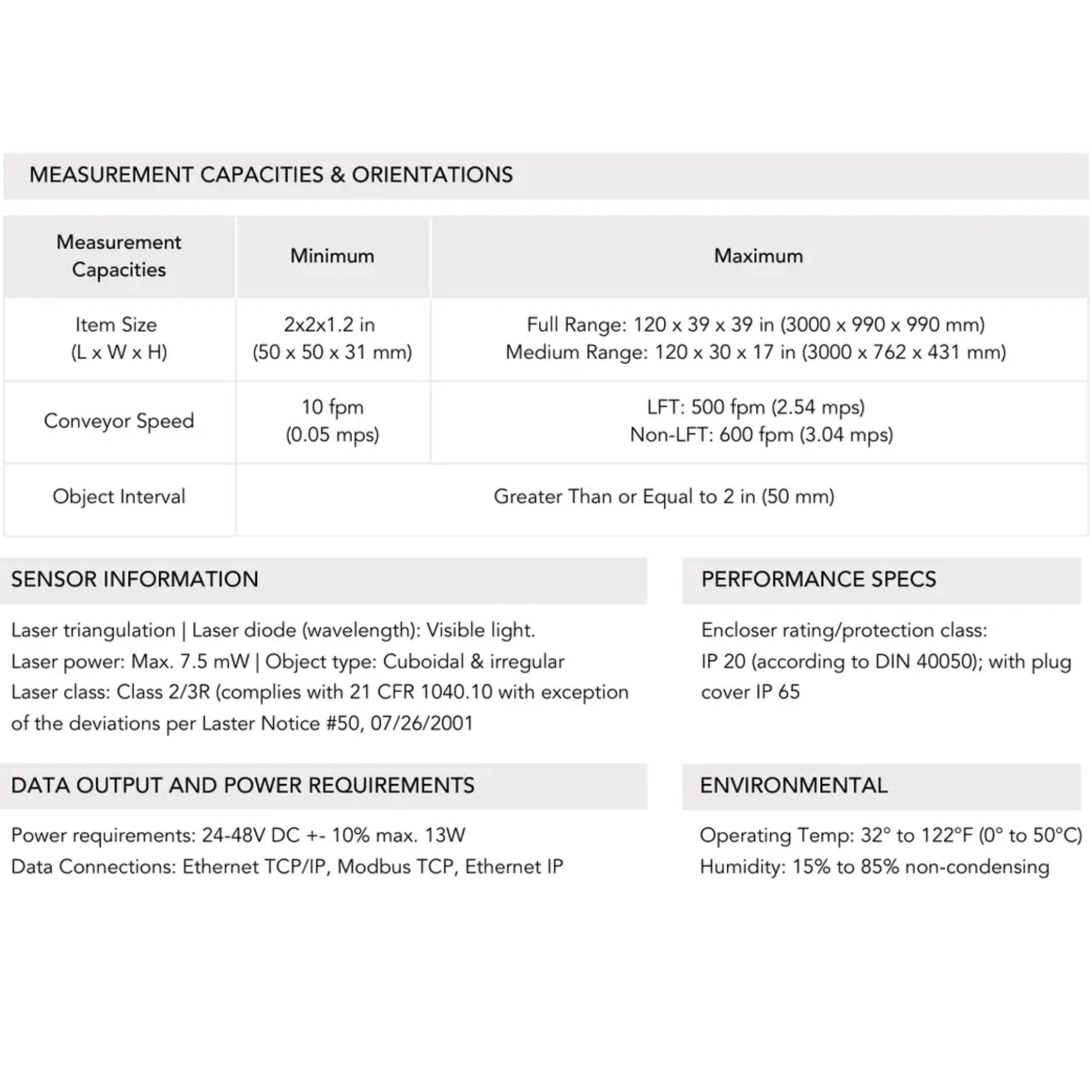

Measurement Capacity

• Full range: 120″ L × 39″ W × 39″ H

• Medium range: 120″ L × 30″ W × 17″ H

User Benefits

• Accurate package dimensions in high-volume shipping & receiving environments

• Automates labor-intensive tasks, freeing staff for other priorities

• Captures profiles of raw and unpackaged items

Inspection Capabilities

• Pallet damage detection

• Open carton detection

• Empty tote verification

• Void fill calculation

Product Description

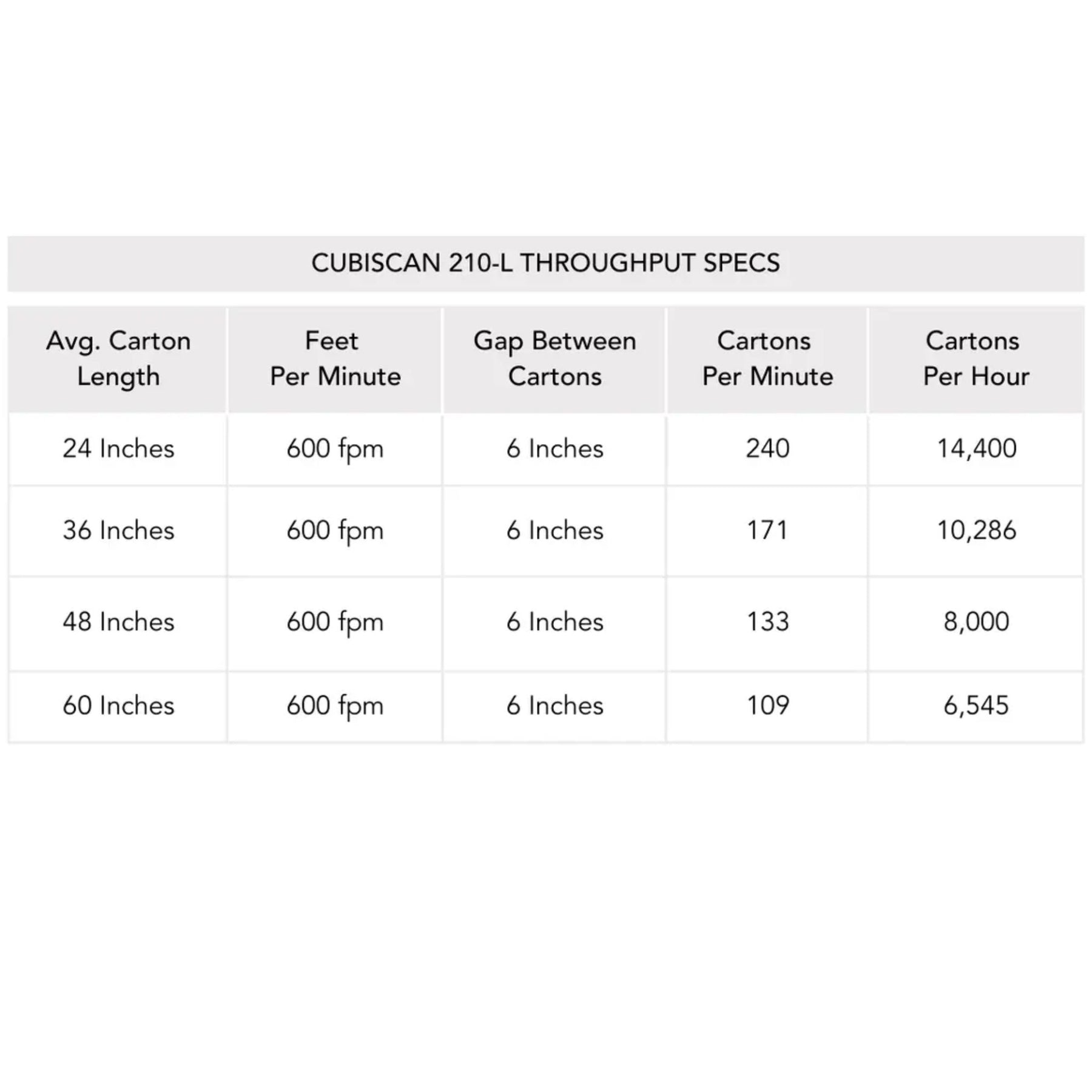

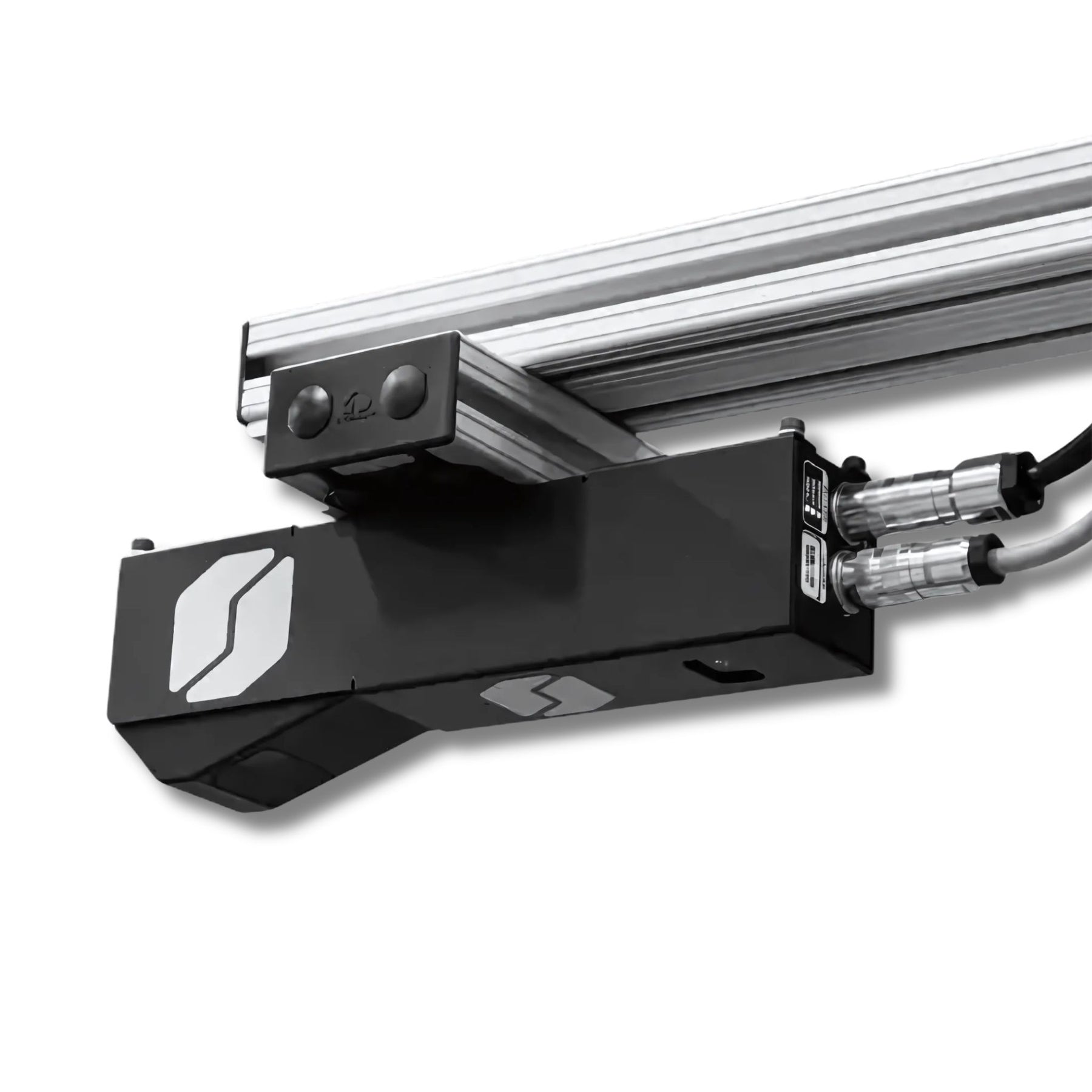

The Cubiscan 210-L is engineered for high-throughput facilities, collecting volumetric data on in-motion SKUs and parcels. LFT-certified up to 500 ft/min, it provides both actual product volume and bounding-box (“smallest-cube”) dimensions.

The 210-L excels at void detection and can be deployed at either the item or parcel level. Its flexible design integrates seamlessly with barcode scanners, checkweighers, print-and-apply labelers, and sortation systems — making it a versatile dimensioning solution that enhances throughput, revenue, and efficiency.

Available in two standard sizes, the Cubiscan 210-L can also be custom configured for resolution, accuracy, and speed to meet unique facility requirements.

Typical Receiving & Shipping Workflow

1. Scan the Identifier
   A fixed or handheld barcode scanner captures the parcel ID (license plate or order ID), either in-motion or statically.

2. Dimensioning Stage
   The parcel passes under the Cubiscan 210-L, where dimensional and volumetric data are collected.

3. Data Integration
   Dimensions and weight are paired with the identifier in Qbit IMS or Qbit DB, then pushed to your WMS, ERP, or shipping software.

4. Print, Verify & Sort
   A shipping label is printed and applied, label contents verified, and the parcel sorted to the correct carrier.
