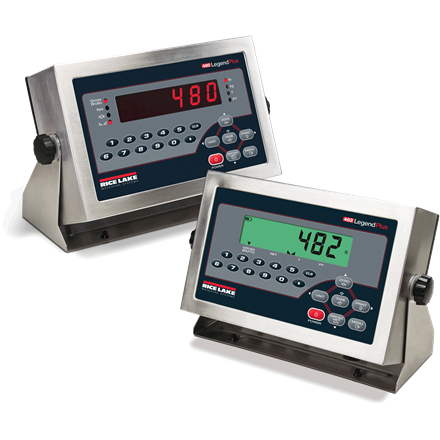

480/482 Legend™ Series Digital Weight Indicator

Power:
Line voltages: 100 to 240 VAC
Frequency: 50 to 60 Hz
DC voltages: n/a
Power consumption: 8 W

Excitation Voltage:
5 VDC, 8 × 350 ohm or 16 × 700 ohm load cells

Analog Signal Input Range:
±7mV/V

Analog Signal Sensitivity:
0.1 μV/graduation minimum,
0. 5 μV/graduation recommended

A/D Sample Rate:
5, 10, 20, 40 Hz, software selectable

Resolution:
Internal: 523,000 counts
Display: 100,000 graduations

System Linearity:
Within 0.01% of full scale

Digital I/O:
Optional 2 or 4 inputs
4 or 8 dry-contact relays

Communication Ports:
Com 1: RS-232 full-duplex
Com 2: RS-232 full-duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity

(Optional) Analog Output:
16-bit resolution, voltage output 0-10 VDC, current output 0-20 mA / 4-20 mA

(Optional) Relay Board:
Two opto-isolated, 5 to 24 VDC, active high inputs.
Two inputs (requires relay output option). Primary keys, pseudo functions, batching functions.
(4) 30 VDC, 2 amp dry-contract relays

(Optional) Ethernet and USB Board:
USB five-pin header for PC, printer or flash drive.
Ethernet TCP/IP, RJ45 jack, server and client ports.

Display:
480/480 Plus: LED display
0.8 in (20 mm), six-digit, seven-segment
482/482 Plus: LCD backlit display, Transmissive/Transflective
0.8 in (20 mm), six-digit, seven-segment

Status Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare

Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

Weight:
6.4 lb (2.9 kg)

Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel

Warranty:
Two-year limited

EMC Immunity:
EN 50082 Part 2 IEC EN 61000-4-2, 3, 4, 5, 6, 8, and 11

Approvals:
NTEP CC 12-123, Class III/IIIL, 10 000d
Measurement Canada AM-5892, Class III/IIIHD, 10,000d
OIML R76/2006-NL1-12.48
EU Test Certificate TC8322
CE Marked
cULus
