SCT-2200 Signal Conditioning Transmitter

Name: SCT-2200 Signal Conditioning Transmitter
Brand: Rice Lake
Availability: InStock

Service & Calibration Support

Interweigh Systems provides calibration, service, and technical support for all equipment we sell.

Our technicians service equipment nationwide and can support commissioning, preventative maintenance, troubleshooting, and re-certification as required.

Certified test weights are also available to support quality control programs and internal verification procedures.

Ordering & Configurations

Most equipment is configured based on application requirements. Pricing and lead times may vary depending on configuration, accessories, and certification needs.

To receive pricing or discuss availability, contact our team with details about your application and environment.

Contact Now for Immediate Pricing

Description

Notable Features

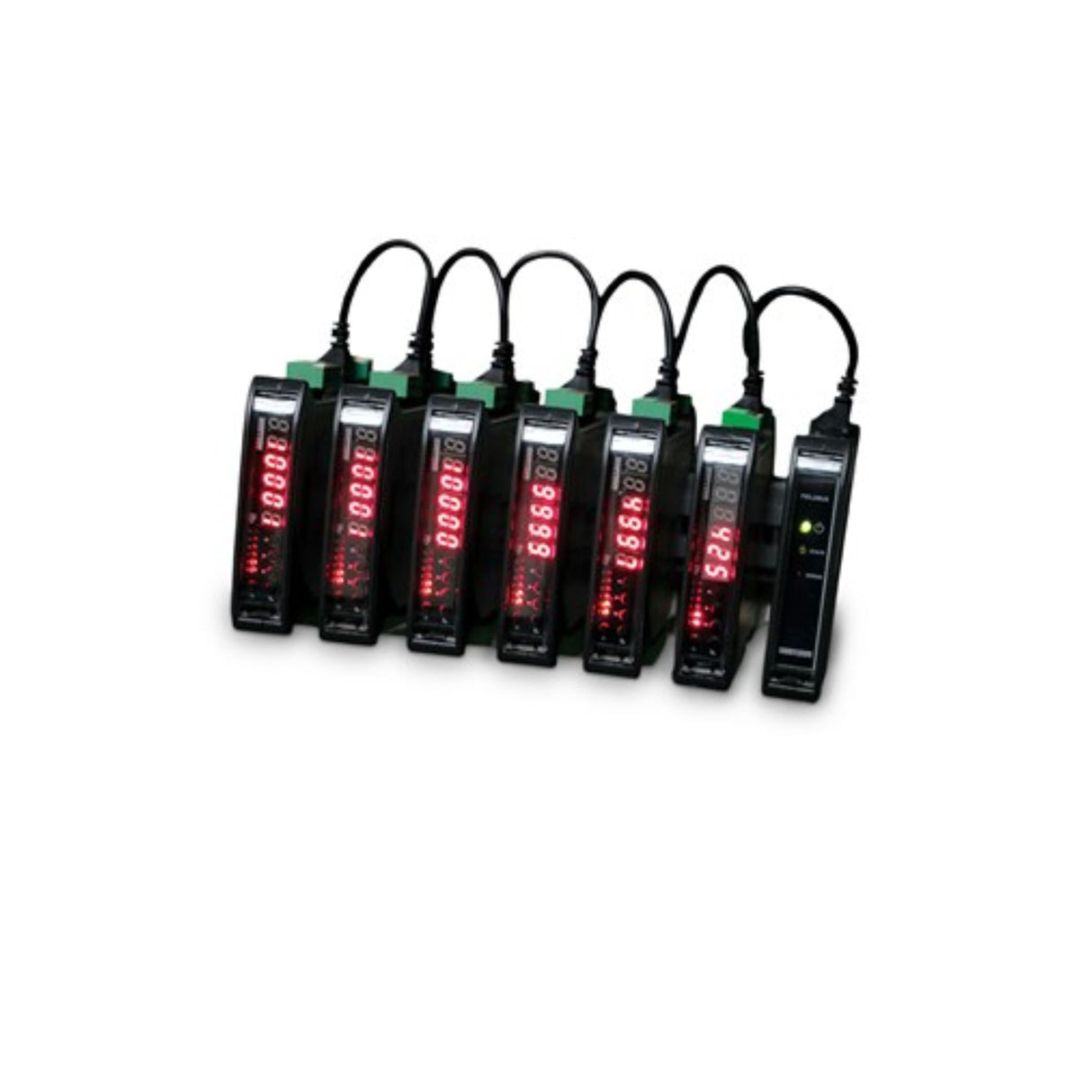

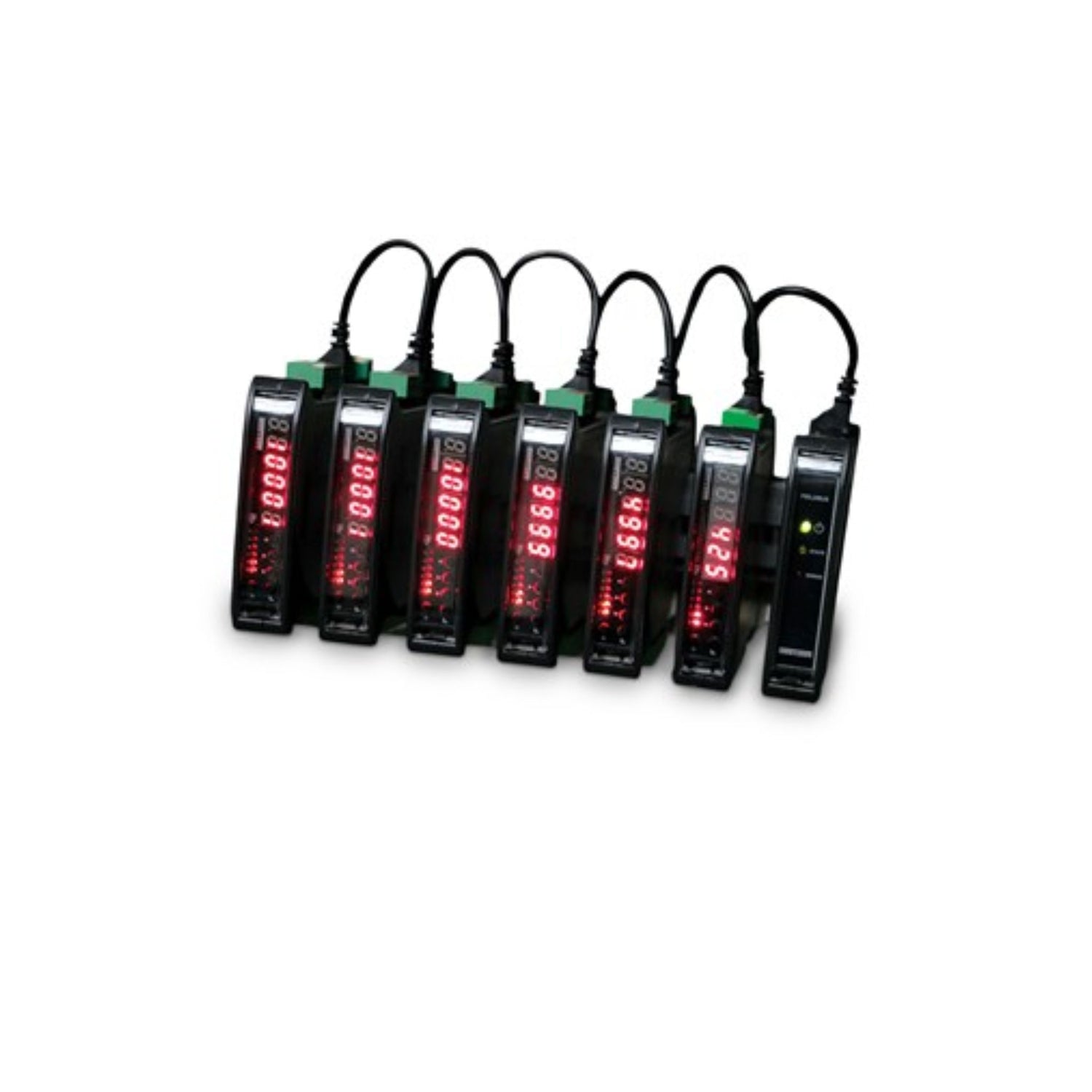

HUB mode connects up to 16 transmitters to one fieldbus
Two RS-485 port for "daisy-chain" network connection
Quick menu for real and theoretical calibration
Remote access through web browser for weight monitoring and calibration over EtherNet/IP, Profinet and Modbus TCP network

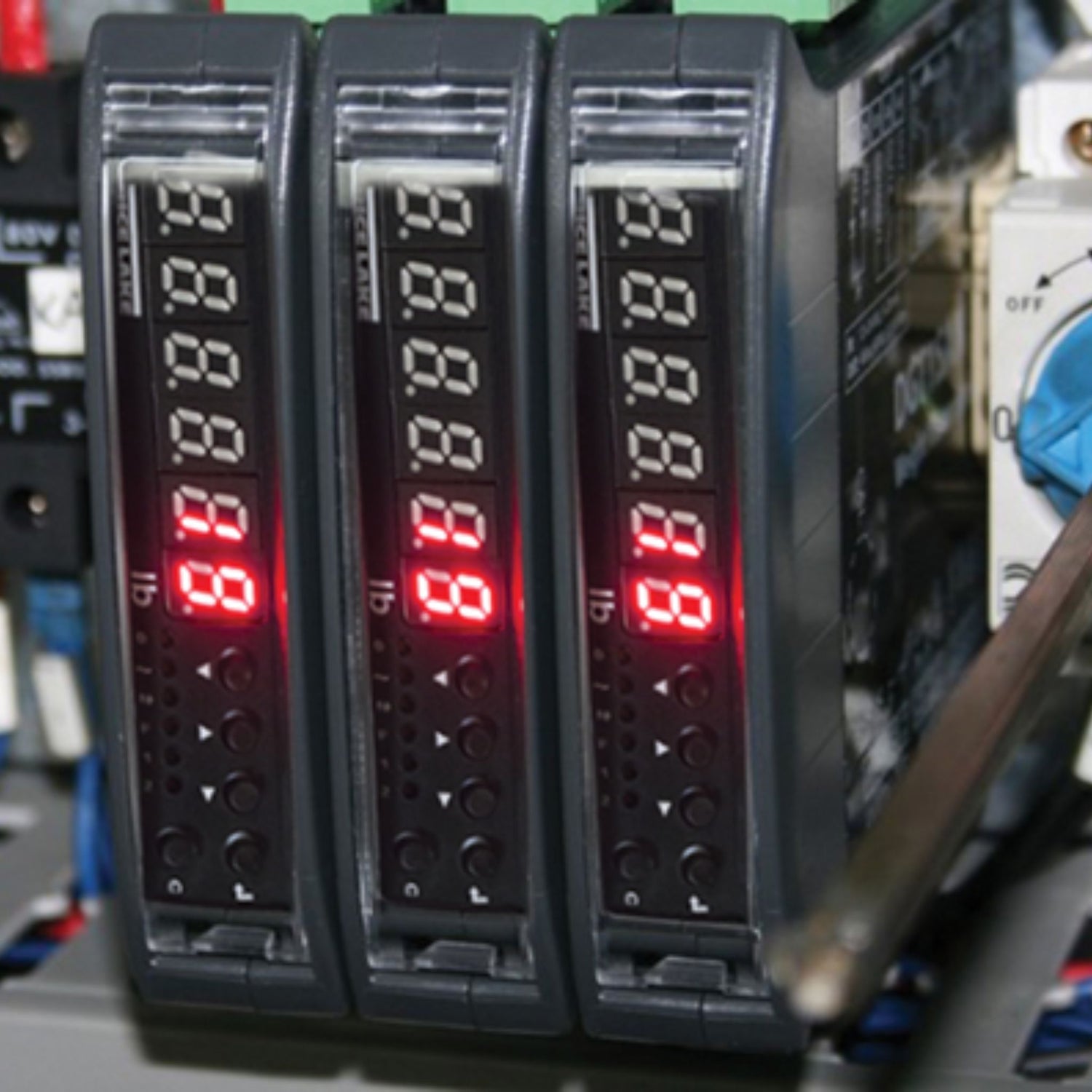

Red LED display
DIN rail mountable
Calibration using linearization points
Reading of the net, gross and tare weights, clearing, semi-automatic and presettable tare setting of outputs application thresholds
Diagnostic information via serial port, message display, printing, simulation of key pressure, Modbus RTU or ASCII protocol
Printer management on second serial port available
Multi-range function allows for subdividing the scale capacity in two, each up to 3,000 divisions
Easy configuration with Rice Lake Tools software

CONTROL IN MINIATURE

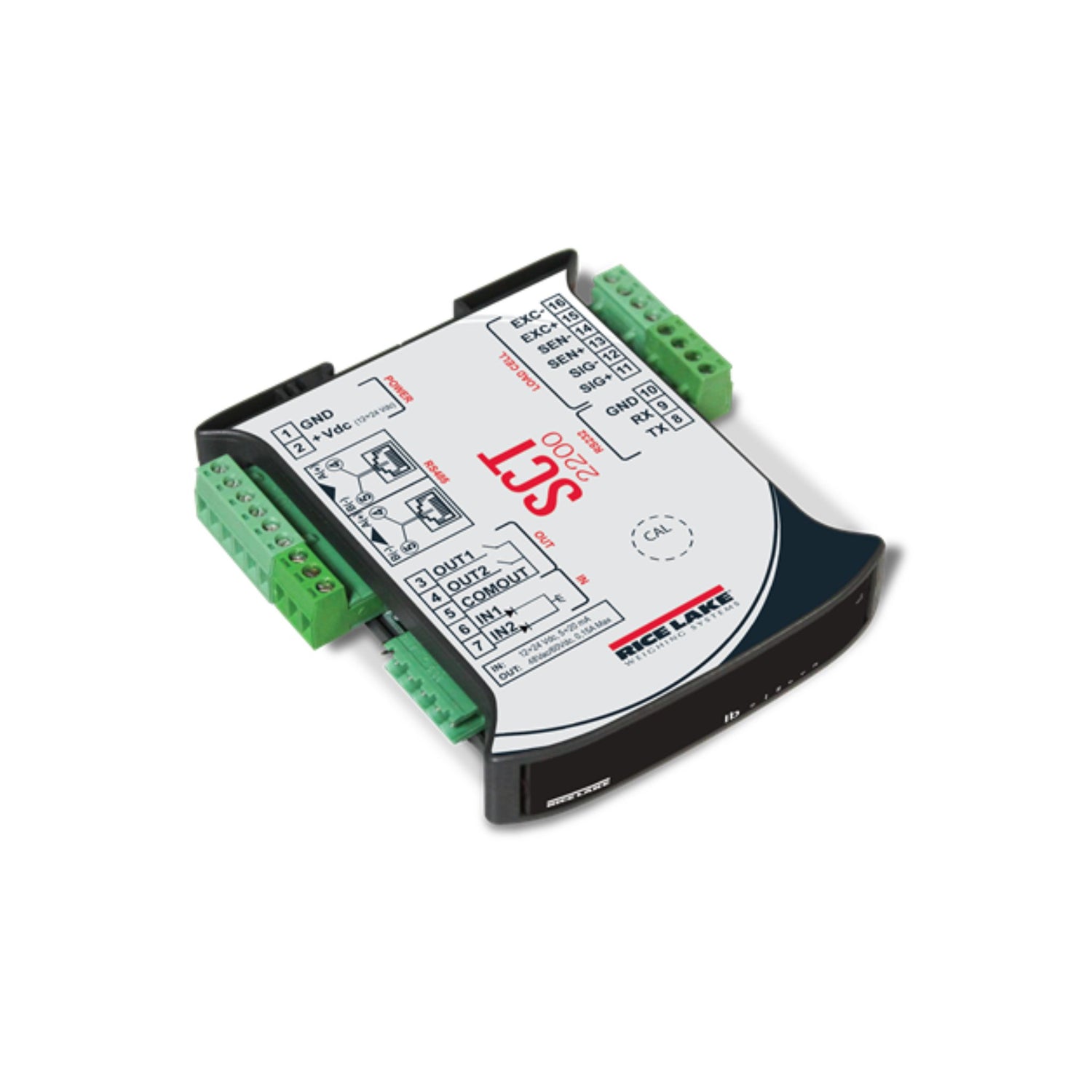

For PLC systems that require weight data from a scale, Rice Lake’s compact SCT transmitters deliver equivalent signal-conditioning function without the cost or bulk of a full size weight indicator/controller. Rice Lake's SCT-2200 is DIN Rail mountable within a cabinet or control panel, where it converts a scale’s load cell signals to analog output, serial output, or a specific network protocol. Unlike many other signal transmitters, the SCT-2200 has its own 0.3 inch weight display, with annunciators for unit and weighing status, and push buttons for zero, tare and setpoint entry, simplifying scale setup, calibration and operation.

BUILT-IN WEB SERVER

For remote access and touch-free control, simply use a web browser on a PC or mobile device connected to the same network as the SCT-2200. Monitor weight data and perform calibrations without being in the same physical location or pressing any buttons on the SCT-2200 itself for added convenience and safety.

Specifications

Power:
12/24 VDC

Power Consumption:
70 mA min to 100 mA max

Excitation Voltage:
5 VDC, 120 mA, 8 × 350 ohm load cells

Analog Signal Input Range:
± 39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum

A/D Sample Rate:
One channel A/D 24-bit sigma-delta conversion, up to 200 conv/sec. auto select

Resolution:
Internal: 1,500,000 counts
Display: 800,000

Digital I/O:
Two inputs: 12/24 VDC
Two outputs: 150 mA 48 VAC/150 mA 60 VDC

Communication Ports:
(1) RS-485, (1) RS-232
Analog output (if equipped):
Opt isolated, 16-bit
0-20mA, 4-20mA (Maximum 350 ohm)
0-5VDC, 0-10VDC (Minimum 10,000 ohm)

Annunciators:
Net, center of zero, stability

Display:
Six-digit 0.31 in (8 mm), red LED

Keys/Buttons:
Five key, tactile feel
Zero (Down), Tare (Up), Mode (Right), Print (Enter), C (On/Off)

Dimensions:
(L × H × D)
4.72 × 4.52 × 0.98 in
(120 × 115 × 25 mm)

Temperature:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

Humidity:
85% non-condensing

Rating/Material:
NEMA Type 1 plastic pluggable connectors

Weight:
1 lb (0.5 kg)

Warranty:
One-year limited

Approvals:
NTEP 20-046
Measurement Canada AM-6165C
OIML R76/2006-A-GB1-19.17
UKCA Marked
cULus Listed
