380 Synergy Series Digital Weight Indicator

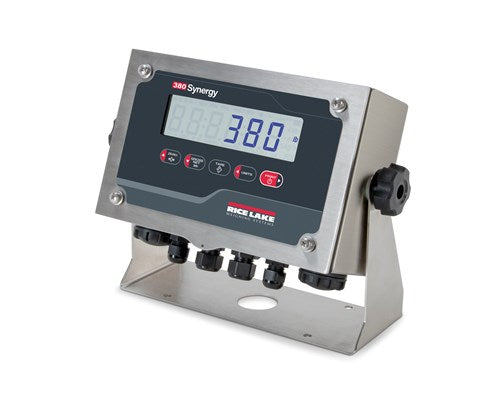

RiceLake 380 Synergy Series Digital Weight Indicator

Powerful, Straightforward Operation

Utilize the 380 Synergy Series indicator for straightforward weighing systems, including portable warehouse scales, material handling applications and more. The 380 can easily mount almost anywhere, making weight data visible exactly where you need it.
The 380 Synergy is battery-powered, providing up to 100 hours of continuous use. A five-button keypad makes operation quick and simple, while RS-232 and USB ports make it easy to connect to peripheral equipment.


Durable Construction

A stainless steel, IP66 enclosure means the 380 Synergy is dust-tight and can stand up to high-pressure water. A bright, six-digit LCD display makes weight data easy to see.


Standard Features

  • LCD display, six-digits 1 in (25 mm) tall
  • Alkaline battery powered; requires 4 C-cell batteries (not included)
  • Push button and keyed tare
  • Two communication ports: RS-232 (three-wire) and USB 2.0
  • Five tactile buttons
  • Configurable print formats
  • 304 stainless steel, IP66 rated enclosure


Batteries: 4 Alkaline C-cell
Optional: 115/230VAC to 12VDC adapter

Power Consumption:
6 W max with optional external power adapter

Battery Life:
100 hours on Alkaline batteries with one 350 ohm load cell, no backlight; 45 hours on Alkaline batteries with four 350Ω load cells, low backlight; 20 hours on Alkaline batteries with eight 350 ohm load cell, low backlight

Excitation Voltage:
5 VDC, 8 × 350 ohm or 16 × 700 ohm load cells

Analog Signal Input Range:
-0.3 mV to +30 mV
Common Mode Voltage 0.7V to 3.3V

Analog Signal Sensitivity:
1 μV/graduation recommended

A/D Sample Rate:
5, 6, 10, 12, 20, 25, 40, 50, 80, 100Hz, software selectable

Internal: 8,000,000 counts
Display: 100,000

System Linearity:
Within 0.01% full scale

Communication Ports:
One RS-232 (three-wire)
One USB 2.0

Status Annunciators:
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net

Six 1 in (25 mm) tall, LCD digits

5 tactile buttons

Temperature Range:
Legal: 14 °F to 104 °F (-10 °C to 40 °C)
Industrial: 14 °F to 122 °F (-10 °C to 50 °C)

(W X H X D)
11.58 × 8.57 × 4.05 in
(30 × 22 × 10 cm)

6.25 lb (3 kg)

IP66, 304 Stainless steel

Two-year limited

EMC Immunity:
10 V/m

NTEP CC 21-051, Class III/IIIL, 10,000 d
Measurement Canada (pending)
CE marked
